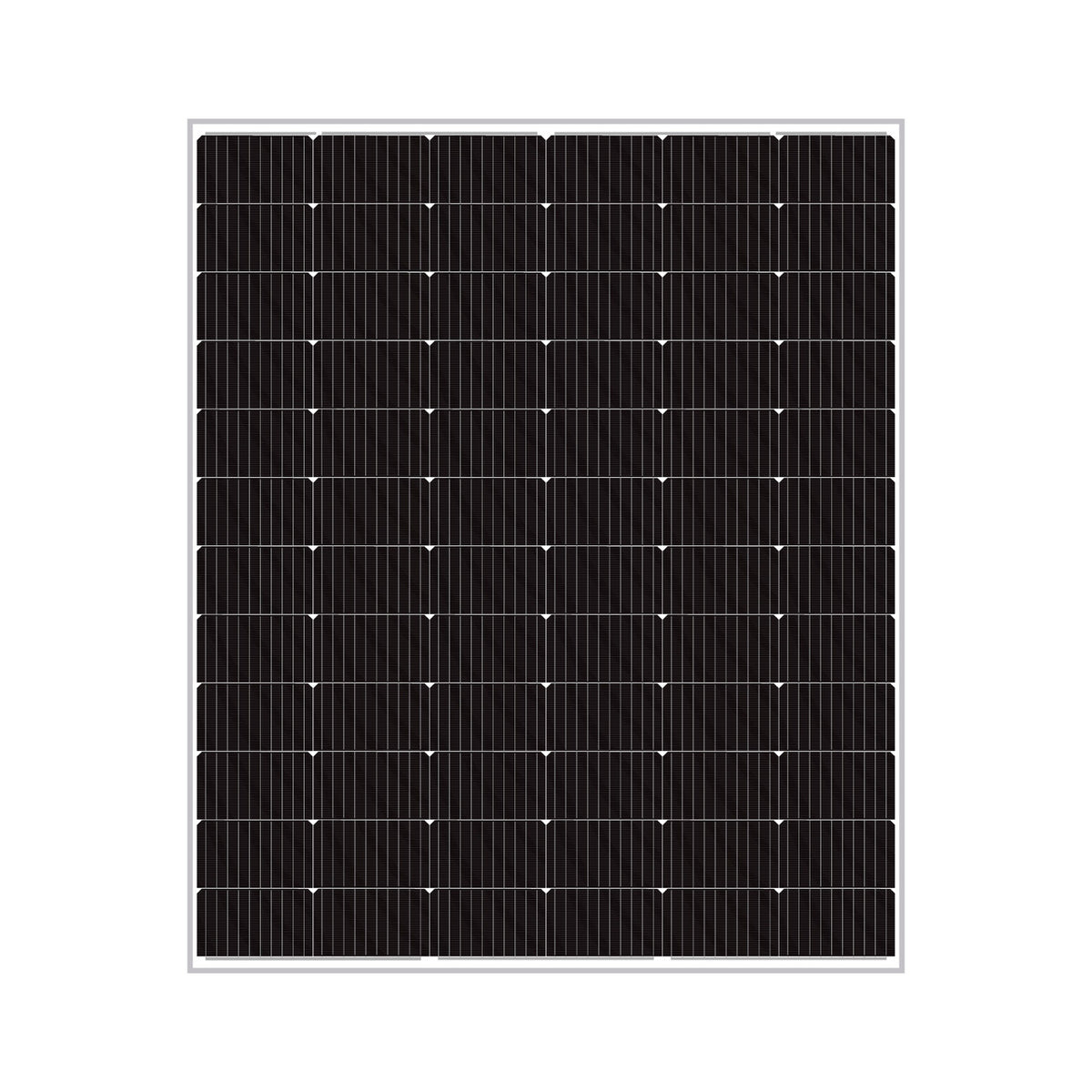

Jetion Solar JT720SLt(B) 720W N-Type TOPCon Bifacial Solar Panel
JT720SLt(B) | N-Type TOPCon | 132 Cells | Bifacial | 1500V System Voltage
Product Overview
The Jetion Solar JT720SLt(B) is a cutting-edge dual-glass monocrystalline solar module designed for maximum energy yield. This high-performance panel utilizes advanced N-type TOPCon technology to achieve a record-breaking 23.18% efficiency. It features 132 MBB cells arranged in a bifacial configuration to capture sunlight from both sides. The robust design ensures exceptional durability against harsh environmental conditions like heavy snow and strong winds. As a member of the CNBM Fortune 500 group, Jetion Solar delivers trusted, cost-effective solutions. This module is ideal for large-scale commercial and industrial solar installations requiring superior power output. Its high bifaciality rate of 80% provides an additional 25% more yield compared to traditional PERC panels. The panel operates reliably within a wide temperature range from -40°C to +85°C.
Key Benefits
Leading TOPCon Technology: This module uses MBB N-type TOPCon cells for a maximum power output of 720W.
Better Anti-LID & LETID: The advanced cell structure offers superior resistance to light-induced degradation and thermal degradation.
High Bifaciality Rate: An 80% bifacial rate ensures additional energy yield of up to 25% over standard PERC modules.
Excellent PID Resistance: The panel features high resistance to potential induced degradation for long-term reliability.
Rigorous Quality Control: Every unit undergoes 100% EL double inspection and in-house testing beyond certification standards.
How It Works
This solar panel operates by converting sunlight directly into electricity using advanced N-type monocrystalline silicon cells. The dual-glass design protects the internal components while allowing light to pass through for bifacial energy generation. The TOPCon technology enhances electron transport efficiency, reducing power loss significantly. This results in higher energy output even under low-light conditions or high temperatures. The MBB busbar design further reduces internal resistance to maximize current flow. The bifacial structure captures reflected light from the ground to boost total yield. This system ensures consistent performance throughout the day and over the panel's lifespan.
Bifacial Energy Capture: The panel captures sunlight on both the front and rear surfaces to increase total energy production. This dual-sided approach utilizes reflected light from the ground to generate additional power.
TOPCon Electron Transport: The Tunnel Oxide Passivating Contact layer minimizes electron recombination at the cell surface. This innovation allows more electrons to flow through the circuit for higher efficiency.
MBB Busbar Efficiency: Multi-Busbar technology uses more thin wires to collect current from the cell. This reduces shading and internal resistance to improve overall power output.
Technical Specifications
| Module Type | Dual-glass Monocrystalline |
| Cell Technology | N-Type TOPCon (MBB) |
| Number of Cells | 132 Cells |
| Maximum Power (Pmax) | 720W (at STC) |
| Module Efficiency | 23.18% |
| Maximum Power Voltage (Vmp) | 40.84V |
| Maximum Power Current (Imp) | 17.63A |
| Open Circuit Voltage (Voc) | 48.58V |
| Short Circuit Current (Isc) | 18.55A |
| Bifaciality Rate | 80% (820W with 10% rear irradiance) |
| Maximum System Voltage | 1500V DC (IEC) |
| Operating Temperature Range | -40°C to +85°C |
| Wind Load Resistance | 2400 Pa |
| Snow Load Resistance | 5400 Pa |
| Hail Impact Resistance | 25mm at 82 km/h |
| Temperature Coefficient (Pmax) | -0.29%/°C |
| Safety Class | Class A (Fire Rating) |
Certifications & Compliance
Certifications: IEC 61215, IEC 61730, IEC 62941
Inverter Compatibility: Compatible with all standard PV inverters supporting 1500V DC systems
Environmental: ISO 14001 Environment Management System, ISO 9001 Quality Management System
Warranty: 12 years Product Warranty, 30 years Linear Performance Warranty (Jetion Solar)
