Apsystems Standard ECU, Zigbee comm, Wi-Fi, no CTs, no RGM - 209001
Apsystems Standard ECU, Zigbee comm, Wi-Fi, no CTs, no RGM - 209001
PayPal Pay in 4 interest-free payments of $46.75 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Your card is not charged until stock is confirmed. Enter your ZIP below for a transit estimate. Tracking provided once your order ships.
Ships via ground carrier, tracked. Pallet & heavy orders go LTL freight — our team confirms freight within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SIV-0635
- MPN
- 209001-No RGM
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for APsystems. 50,000+ SKUs from 169 authorized brands.

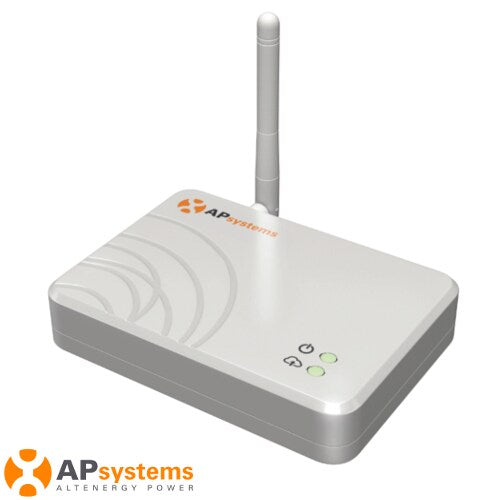

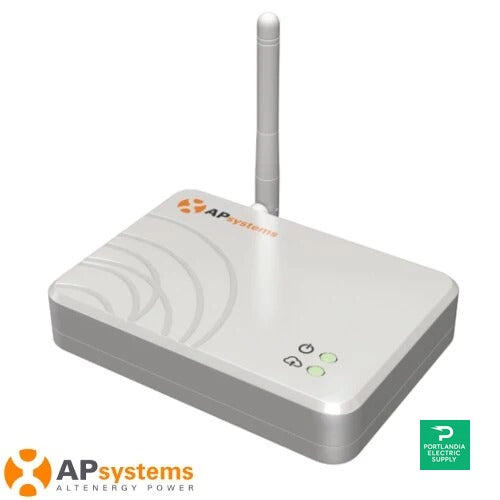

APsystems ECU-R gateway – real-time micro-inverter monitoring
The APsystems ECU-R gateway collects performance data from up to 100 APsystems micro-inverters via encrypted ZigBee links and uploads it to the EMA portal over built-in Wi-Fi or Ethernet.:contentReference[oaicite:7]{index=7}
Key Features
Integrated Wi-Fi & ZigBee
With both 802.11 g/n and 2.4 GHz ZigBee radios, the APsystems ECU-R gateway installs anywhere near the service panel and starts reporting within minutes.:contentReference[oaicite:8]{index=8}
Specifications
| Dimensions (L × W × H) | 4.8 × 3.42 × 0.98 in |
|---|---|
| Weight | 0.33 lb |
| Max inverters | 100 (module-level) |
| Communications | ZigBee 2.4 GHz to inverters; Wi-Fi 802.11 g/n & 10/100 M Ethernet to EMA |
| Power consumption | 1.7 W |
| Operating temp | -4 °F – +149 °F |
| Enclosure | Indoor – NEMA 1 (IP20) |
Installation & Warranty
The APsystems ECU-R gateway ships with a 5 V / 2 A power supply and a 3-year limited warranty, ensuring reliable fleet-wide PV monitoring.:contentReference[oaicite:9]{index=9}
"
APsystems ECU-R gateway – real-time micro-inverter monitoring
The APsystems ECU-R gateway collects performance data from up to 100 APsystems micro-inverters via encrypted ZigBee links and uploads it to the EMA portal over built-in Wi-Fi or Ethernet.:contentReference[oaicite:7]{index=7}
Key Features
Integrated Wi-Fi & ZigBee
With both 802.11 g/n and 2.4 GHz ZigBee radios, the APsystems ECU-R gateway installs anywhere near the service panel and starts reporting within minutes.:contentReference[oaicite:8]{index=8}
Specifications
| Dimensions (L × W × H) | 4.8 × 3.42 × 0.98 in |
|---|---|
| Weight | 0.33 lb |
| Max inverters | 100 (module-level) |
| Communications | ZigBee 2.4 GHz to inverters; Wi-Fi 802.11 g/n & 10/100 M Ethernet to EMA |
| Power consumption | 1.7 W |
| Operating temp | -4 °F – +149 °F |
| Enclosure | Indoor – NEMA 1 (IP20) |
Installation & Warranty
The APsystems ECU-R gateway ships with a 5 V / 2 A power supply and a 3-year limited warranty, ensuring reliable fleet-wide PV monitoring.:contentReference[oaicite:9]{index=9}
| SKU | PES-SPS-SIV-0635 |
|---|---|
| MPN | 209001-No RGM |
| Manufacturer | APsystems |
| Container price | |
| Container qty | |
| Documents | |
| Height | |
| Isfollow | |
| Isindex | |
| Length | |
| Pallet price | |
| Unit price | |
| Width | |
| Manufacturer |
No documents available for this product. Contact us to request documentation.
