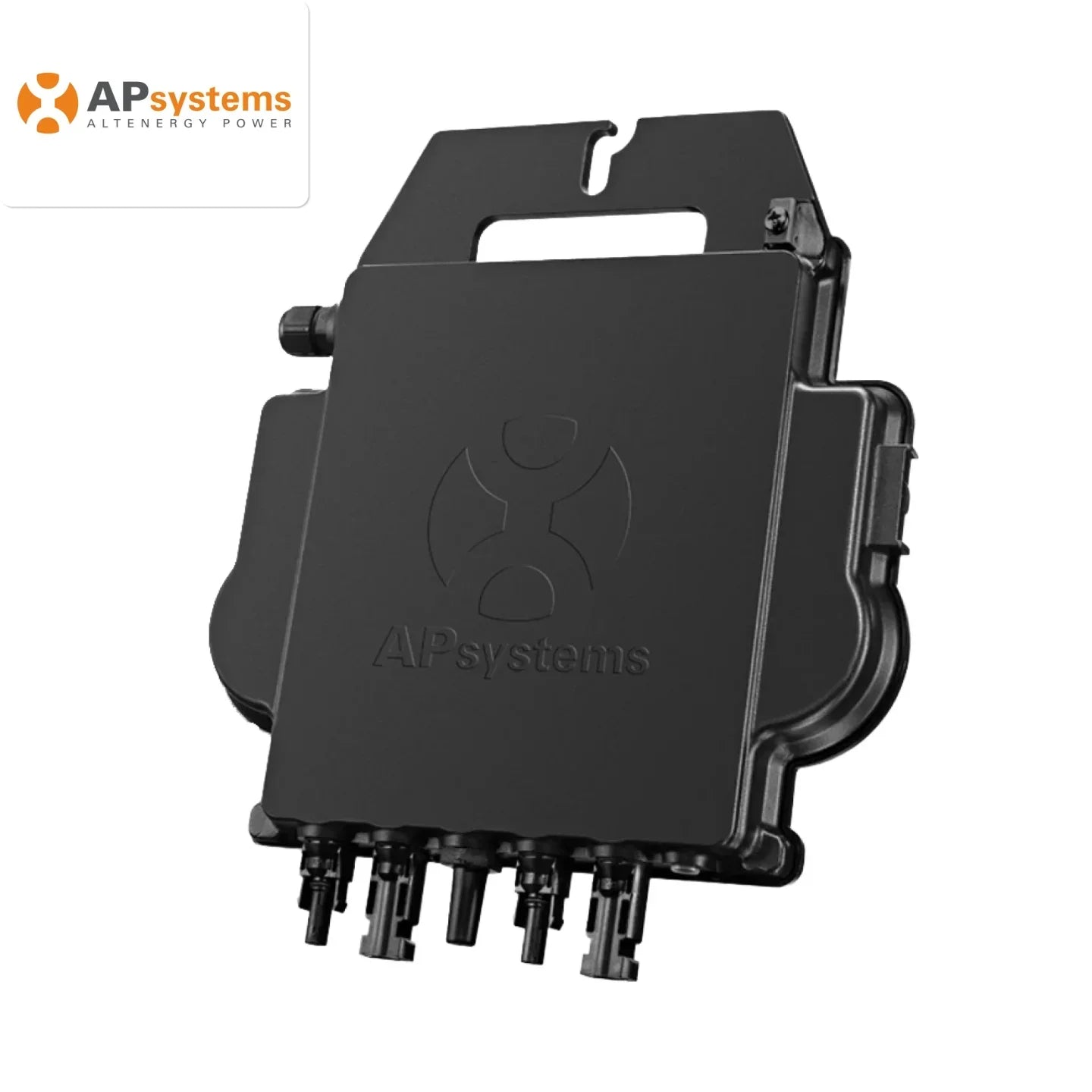

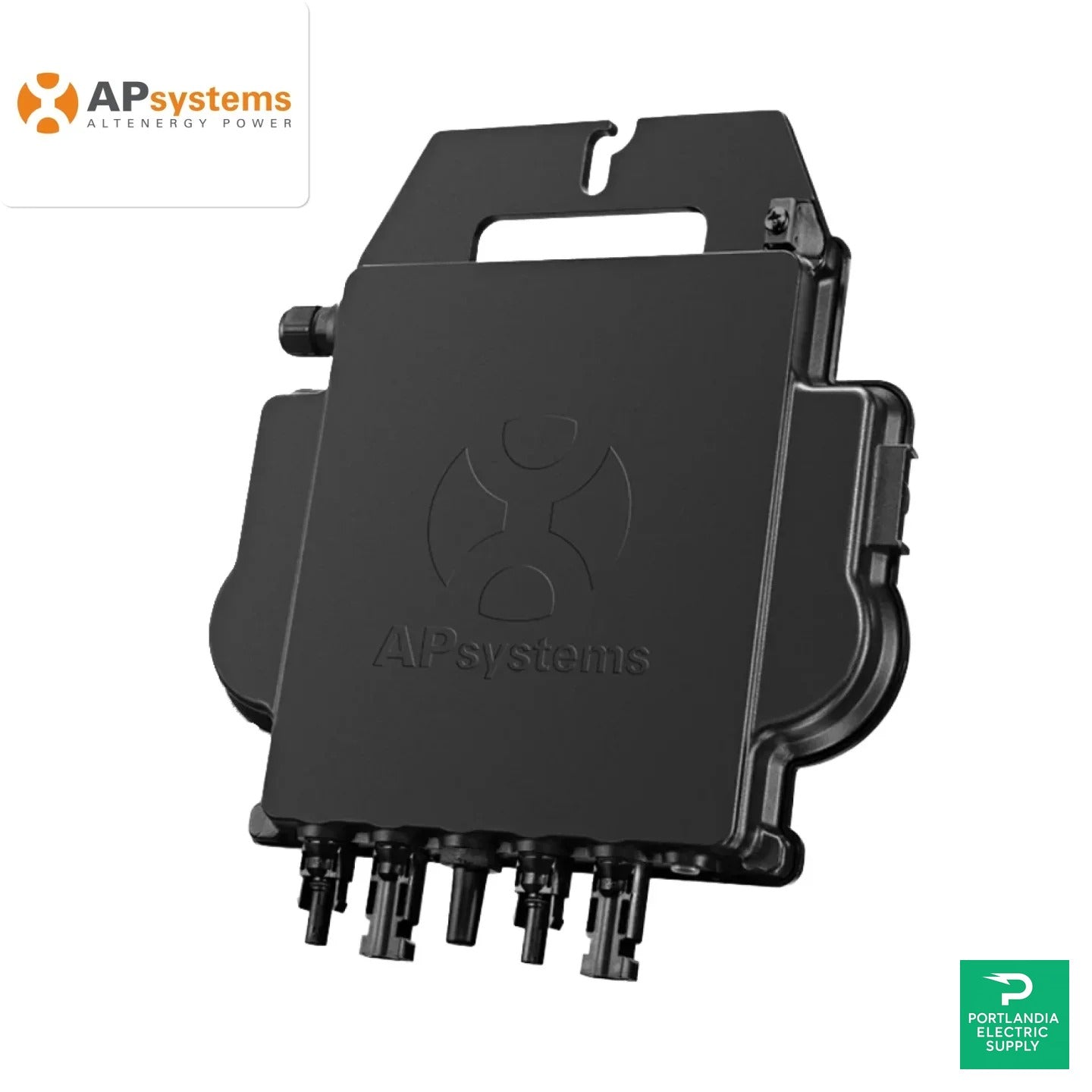

APSystems DS3‑S 640 VA Dual‑Module Microinverter (Model 119001)
The DS3‑S is APSystems’ third-generation single‑phase microinverter designed to handle two high-capacity PV modules simultaneously. Delivering up to 640 VA, it maximizes panel-level energy harvest with ultra-high efficiency and compact form factor.
- Input: 60 V DC nominal (compatible with 60/72-cell modules)
- Output: 240 V AC, single-phase; up to 640 VA peak
- Efficiency: 99.5% peak, ensuring minimal energy loss
- Environment: Operates from −40 °F to +185 °F; outdoor-rated casing
- Warranty: 10 years, backed by APSystems
This inverter features dual MPPT channels (one per PV module), encrypted ZigBee communication, and full backward compatibility with APSystems' existing QS1 and YC600 systems. It's UL 1741 certified and compatible with NEC 2020 rapid shutdown and CA Rule 21 grid compliance.
Specifications & Documents: Full specifications & datasheet for APsystems DS3-S 640VA Microinverter 119001
| SKU | PES-SPS-SIV-0618 |
|---|---|
| MPN | DS3-S 640VA |
| Manufacturer | APSystems |
| Container price | |
| Container qty | |
| Documents | |
| Height | |
| Length | |
| Pallet price | |
| Unit price | |
| Width | |
| Inverter type | |
| Manufacturer | |
| Model number | |
| Voltage |
No documents available for this product. Contact us to request documentation.
