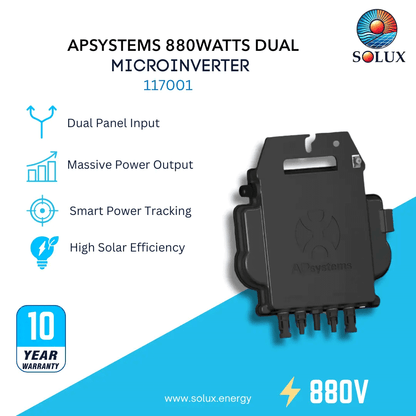

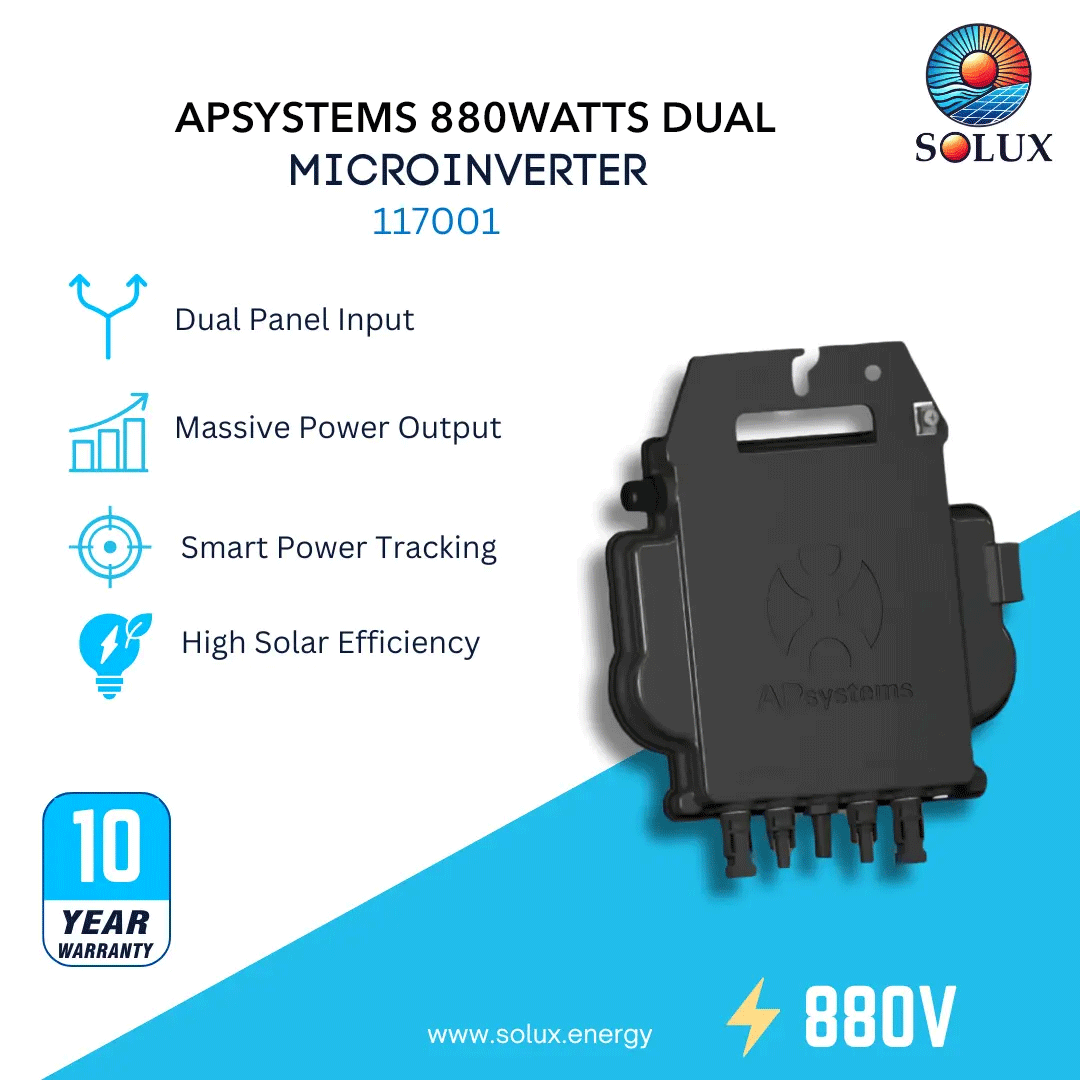

APSystems DS3 Single-Phase 880W 220V AC Microinverter – DS3-NA-880VA
The APSystems DS3-NA-880VA microinverter is a high-efficiency, single-phase dual-module inverter designed for residential and commercial PV systems. It delivers up to 880 watts of output power and is optimized for compatibility with today’s high- power solar modules, ensuring maximum energy harvest and superior system reliability.
Product Features
High Power Output
Each DS3 microinverter supports two solar modules and offers up to 880VA of continuous output, delivering outstanding efficiency and energy performance.
Advanced Power Line Communication (PLC)
Seamlessly integrates with the APsystems ECU communication gateway via PLC technology, allowing for real-time monitoring and diagnostics.
Smart Grid Ready
Equipped with reactive power control and compliant with the latest IEEE 1547 and UL 1741 SA grid standards, ensuring smart grid interoperability and compliance.
Durable and Weatherproof
Built with an IP67-rated enclosure for outdoor installation, providing maximum protection against dust, water, and environmental conditions.
Simple Installation
Compact design with integrated AC and DC connectors simplifies installation and reduces setup time, saving on labor costs.
Specifications
| Model | DS3-NA-880VA |
| Manufacturer | APSystems |
| Output Power | 880W (Continuous) |
| Input Voltage Range | 16V – 60V DC |
| Output Voltage | 220V AC, Single-Phase |
| Peak Efficiency | 97.3% |
| MPPT Voltage Range | 28V – 45V DC |
| Max DC Input Current | 18A (per channel) |
| Communication | Power Line Communication (PLC) |
| Enclosure Rating | IP67 |
| Compliance | UL 1741 SA, IEEE 1547, FCC Part 15B |
| Weight | 5.5 |
| Dimensions (L × W × H) | 9.0 × 7.1 × 1.3 |
| Warranty | 10 Years Limited (Extendable to 25 Years) |
| SKU | PES-SPS-SIV-0861 |
|---|---|
| MPN | DS3-NA - 880VA |
| Manufacturer | APSystems |
