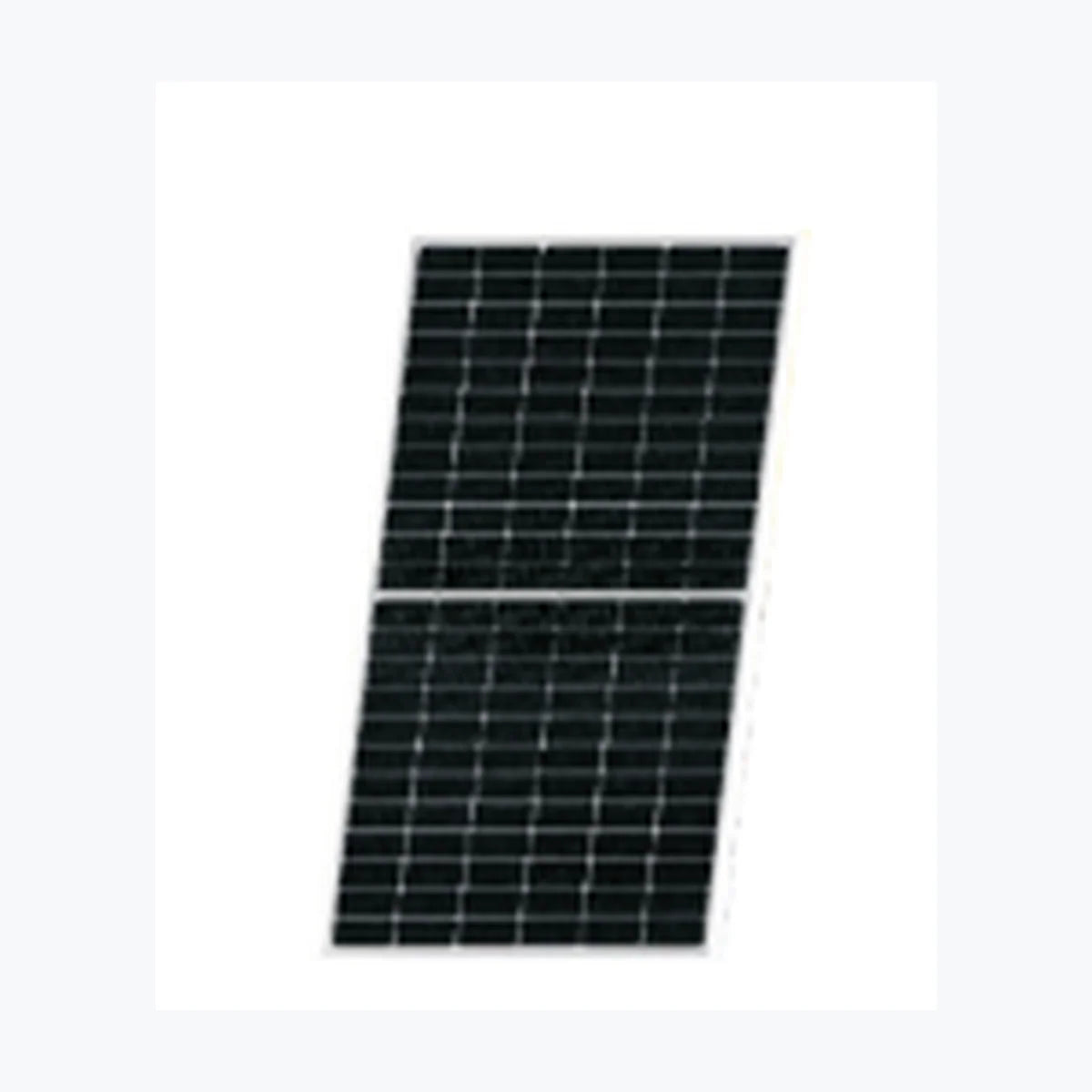

Alpex Solar ALP24L 535WM 535W Monocrystalline PERC Solar Panel
Model ALP24L 535WM | PERC | 144 Half-Cut Cells | Monocrystalline | 1500V System Voltage
Product Overview
The Alpex Solar ALP24L 535WM is a high-performance monocrystalline solar panel built for reliable energy generation. It uses PERC technology and 144 half-cut cells to improve output and reduce losses. The module delivers 535 Wp at STC, with strong efficiency and stable electrical performance. Its 1500V system rating supports modern solar installations. The panel is designed for long-term use in demanding environments. It is suitable for residential, commercial, and utility-scale solar projects. The build quality supports durability, efficient heat handling, and dependable operation across wide temperature ranges.
Key Benefits
High Power Output: The panel delivers 535 Wp for strong energy production in larger solar arrays.
Efficient Cell Design: PERC technology helps improve light capture and overall module performance.
Half-Cut Cell Advantage: 144 half-cut cells support better current flow and reduced internal resistance.
Built for Harsh Conditions: The module operates from -40 to 85 °C, supporting performance in varied climates.
Strong Warranty Support: Performance coverage reaches 90% at 10 years and 80% at 25 years.
Durable Construction: Tempered glass, anodized aluminium, and IP67 protection improve field reliability.
How It Works
This solar panel converts sunlight into usable electricity through mono PERC crystalline cells. The 144 half-cut cell layout helps reduce resistive losses and supports stable power delivery. Anti-reflection tempered glass improves light absorption throughout the day. The panel also performs reliably under changing temperatures, making it suitable for consistent daily generation. Its bypass diodes help maintain output when part of the module is shaded. The result is a dependable solar module designed for efficient energy harvesting over many years.
Light Capture: The anti-reflection coated glass allows more sunlight to reach the cells. This improves energy conversion in real-world conditions.
Power Conversion: Mono PERC cells convert solar radiation into electrical power with improved efficiency. This supports strong output at 535 Wp.
Shade Management: Three bypass diodes help reduce the impact of partial shading. This keeps the module operating more consistently across the day.
Technical Specifications
| Brand | Alpex Solar Limited |
| Model Number | ALP24L 535WM |
| Technology | PERC Mono PERC Crystalline |
| Cell Count | 144 Half-Cut Cells |
| Maximum Power (Pmax) | 535 Wp |
| Voltage at Maximum Power (Vmpp) | 41.52 V |
| Current at Maximum Power (Impp) | 12.89 A |
| Open Circuit Voltage (Voc) | 49.46 V |
| Short Circuit Current (Isc) | 13.75 A |
| Panel Efficiency | 20.71% |
| Temperature | 45±2 °C |
| Operating Temperature Range | -40 to 85 °C |
| Temperature Coefficient of Pmax | -0.35 %/°C |
| Temperature Coefficient of Voc | -0.27 %/°C |
| Temperature Coefficient of Isc | 0.045 %/°C |
| Maximum System Voltage | 1500 V |
| Series Fuse Rating | 25 A |
| Dimensions | 2278 x 1133 x 35 mm |
| Weight | 29 kg |
| Glass Type | Anti-reflection Coating, Tempered |
| Encapsulant Type | EVA |
| Frame Type | Anodized Aluminium |
| Junction Box Diodes | 3 |
| Junction Box Protection Class | IP67 |
| Connector Type | MC4 |
| Cable Cross Section | 4 mm² |
| Cable Length | 300 mm |
| Seller Name | Alpex Solar Limited |
| Country of Origin | India |
Certifications & Compliance
Certifications: ALMM, IEC, BIS
Inverter Compatibility: Suitable for modern 1500V solar system designs
Environmental: Designed for wide operating temperatures and durable outdoor use
Warranty: 10 years to 90% performance and 25 years to 80% performance, with 0.8% total degradation rate
