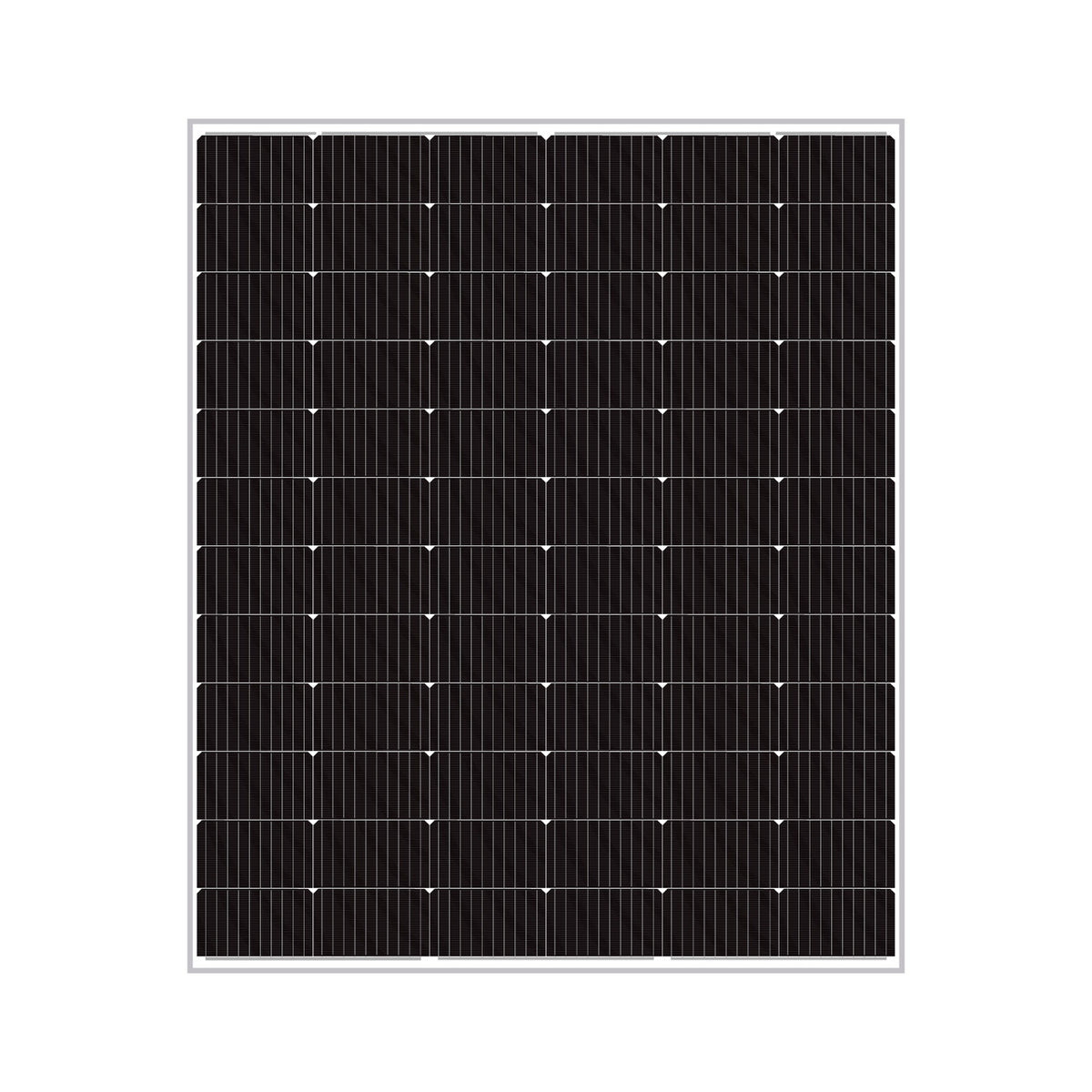

Alpex Solar ALP 200WM 200W Monocrystalline PERC Solar Panel
Model ALP 200WM | PERC | 36 Cell Mono PERC | Monocrystalline | 600V System Voltage
Product Overview
The Alpex Solar ALP 200WM is a compact 200W monocrystalline PERC solar panel built for dependable daily generation. It combines high module efficiency with a durable 36-cell layout for stable output in residential and commercial installations. The anti-reflection tempered glass improves light capture, while the anodized aluminium frame adds strength for long-term use. With a 600V maximum system voltage and IP67 junction box protection, this panel is designed for reliable field performance. Its 10-year power warranty at 90% and 25-year warranty at 80% support long service life. The panel is manufactured in India by Alpex Solar Limited.
Key Benefits
Efficient Power Production: The panel delivers 200Wp output with 19.37% efficiency for strong energy conversion.
PERC Cell Technology: Mono PERC cells help improve performance under real-world operating conditions.
Durable Construction: Tempered AR-coated glass and an anodized aluminium frame support long-term reliability.
Weather Resistance: The module operates from -40 to 85°C and carries IP67 junction box protection.
Compact and Lightweight: At 11 kg and 1505 x 686 x 35 mm, installation is easier in limited spaces.
How It Works
The ALP 200WM converts sunlight into usable DC electricity through monocrystalline PERC cells. These cells are engineered to capture light efficiently and maintain stable generation across changing conditions. The anti-reflection tempered glass helps more sunlight reach the cells, which supports better output through the day. The EVA encapsulant and multilayer back sheet protect internal components from moisture and environmental stress. The anodized aluminium frame strengthens the panel structure during mounting and operation. Two bypass diodes in the junction box help reduce power loss from partial shading. MC4-compatible connectors and 4 mm² cables support practical integration into standard solar systems.
Light Capture: The AR-coated tempered glass improves sunlight transmission to the cells. This supports better energy harvesting during daily operation.
Power Conversion: Mono PERC cells convert absorbed sunlight into electricity with strong efficiency. The electrical design supports consistent output at maximum power conditions.
System Protection: The junction box, bypass diodes, and IP67 rating help protect the module from environmental stress. This improves dependable operation in demanding installations.
Technical Specifications
| Brand | Alpex Solar Limited |
| Model No. | ALP 200WM |
| Technology | PERC |
| Cell Type | Monocrystalline |
| Cell Number | 36 |
| Maximum Power (Pmax) | 200 Wp |
| Voltage at Maximum Power (Vmpp) | 20.14 V |
| Current at Maximum Power (Impp) | 9.94 A |
| Open Circuit Voltage (Voc) | 24.28 V |
| Short Circuit Current (Isc) | 10.51 A |
| Panel Efficiency | 19.37% |
| Maximum System Voltage | 600 V |
| Series Fuse Rating | 15 A |
| Dimensions | 1505 x 686 x 35 mm |
| Weight | 11 kg |
| Glass Type | Anti-reflection coated tempered glass |
| Encapsulant Type | EVA |
| Frame Type | Anodized aluminium |
| Junction Box | 2 bypass diodes |
| Junction Box Protection Class | IP67 |
| Connector Type | MC4 |
| Cable Cross Section | 4 mm² |
| Cable Length | 1000 mm |
| Temperature | 45±2 °C |
| Operating Temperature Range | -40 to 85 °C |
| Temperature Coefficient of Pmax | -0.30 %/°C |
| Temperature Coefficient of Voc | -0.24 %/°C |
| Temperature Coefficient of Isc | 0.07 %/°C |
Certifications & Compliance
Certifications: IEC 61215 Ed2, IEC 61730, IEC 61701, IEC 62716, IEC 62804, UL 61730, BIS
Inverter Compatibility: Compatible with standard MC4-based solar systems
Environmental: Designed for operation from -40 to 85 °C with IP67 junction box protection
Warranty: 10 years at 90% performance and 25 years at 80% performance
