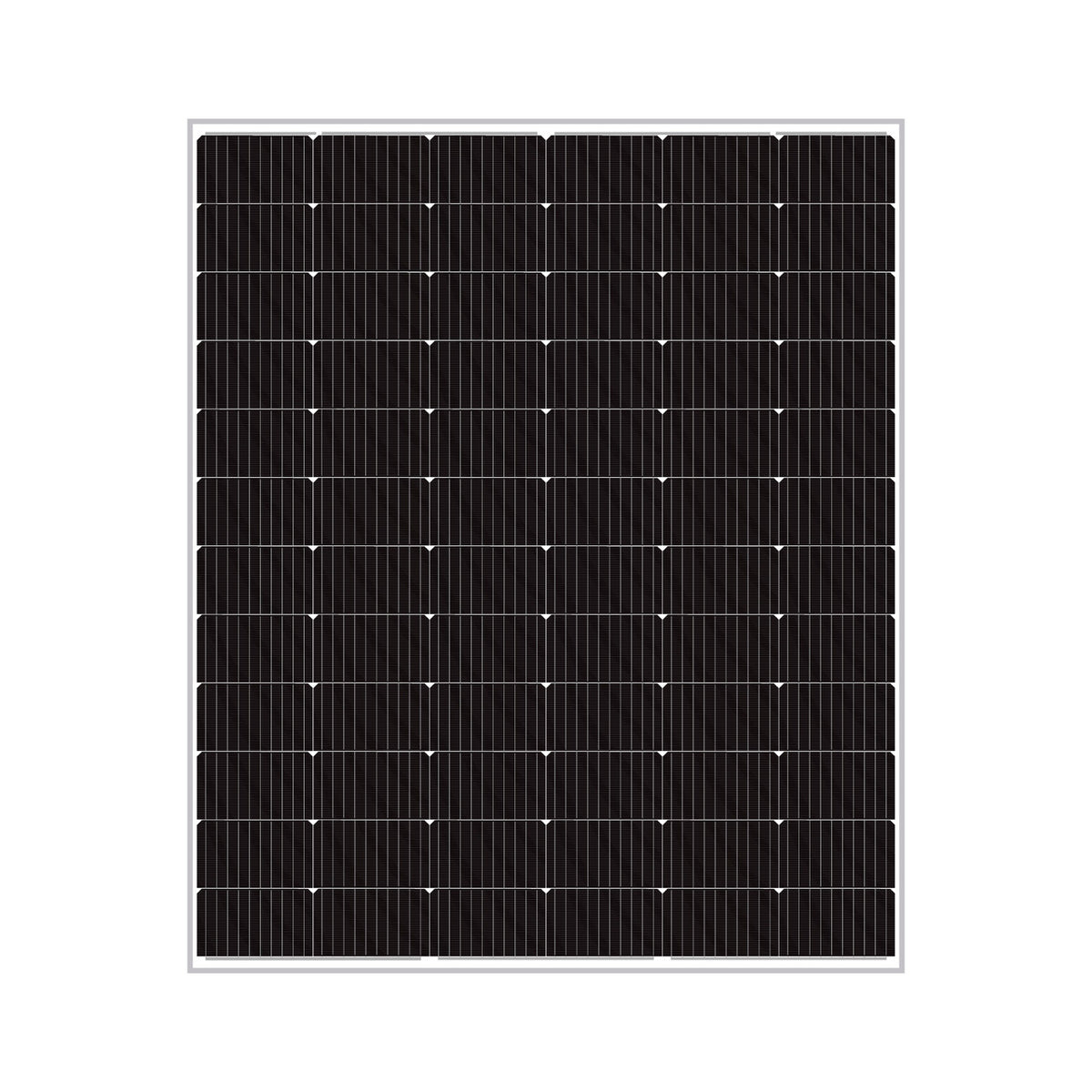

Alpex Solar ALP 170W Polycrystalline Mono Solar Panel
ALP | Polycrystalline | 36 Cell | Mono | 600V System Voltage
Product Overview
The Alpex Solar ALP 170W Polycrystalline Mono Solar Panel is a robust solution for industrial and commercial energy needs. This panel delivers 170 watts of power with high efficiency of 16.46 percent. It features 36 durable polycrystalline silicon cells encased in tempered glass. The anti-reflection coating ensures maximum light absorption even in low-light conditions. Its compact dimensions of 1505x686x35 mm make it easy to install on various surfaces. The panel weighs only 11 kg, simplifying handling and mounting processes. It operates reliably within a wide temperature range from -40 to 85 degrees Celsius. This solar panel is designed for long-term performance with minimal degradation over time.
Key Benefits
High Power Output: Generates 170W of reliable power for consistent energy supply.
Superior Efficiency: Achieves 16.46% module efficiency to maximize energy conversion.
Weather Resilience: Operates safely from -40°C to 85°C in extreme climates.
Long Warranty: Includes 10-year warranty at 90% output and 25-year at 80%.
Lightweight Design: Only 11 kg weight enables easy installation and mounting.
How It Works
The Alpex Solar ALP 170W panel converts sunlight into electricity using polycrystalline silicon cells. When photons hit the cells, they release electrons to generate direct current. This current flows through the MC4 connectors to your inverter or battery system. The anti-reflection coating ensures minimal light loss for optimal performance. The tempered glass protects internal components from environmental damage. Two bypass diodes prevent power loss if part of the panel is shaded. The EVA encapsulant securely bonds cells to the frame for durability.
Photon Absorption: Sunlight photons strike the polycrystalline cells to release electrons. This process creates a flow of electrical current within the cell structure.
Current Collection: Released electrons are collected by the metal contacts on the cell surface. The current then travels through the MC4 connectors for external use.
Shade Protection: Two bypass diodes activate when part of the panel is shaded. This prevents reverse current flow and maintains overall system efficiency.
Technical Specifications
| Max Power (Pmax) | 170 Wp |
| Voltage at Max Power (Vmpp) | 18.86 V |
| Current at Max Power (Impp) | 9.02 A |
| Open Circuit Voltage (Voc) | 23.01 V |
| Short Circuit Current (Isc) | 9.61 A |
| Module Efficiency | 16.46% |
| Cell Type | Polycrystalline Silicon |
| Cell Number | 36 Cells |
| Dimensions (H/W/D) | 1505 x 686 x 35 mm |
| Weight | 11 kg |
| Operating Temperature Range | -40°C to 85°C |
| Nominal Operating Cell Temp (NOCT) | 45 ± 2°C |
| Temp Coeff of Pmax | -0.35%/°C |
| Max System Voltage | 600 V |
| Series Fuse Rating | 10 A |
| Junction Box Protection Class | IP 67 |
| Connector Type | MC4 |
| Cable Crossection | 4 mm² |
| Cable Length | 1000 mm |
| Glass Type | Tempered, Anti-reflection Coating |
| Encapsulant Type | EVA |
| Frame Type | Anodized Aluminium |
| Bypass Diodes | 2 |
Certifications & Compliance
Certifications: IEC 61215 Ed2, IEC 61730, IEC 61701, IEC 62716, IEC 62804, UL 61730, BIS
Inverter Compatibility: Compatible with all standard grid-tie and off-grid inverters
Environmental: Class A Safety Class II, ISO 9001:2015, ISO 14001:2015, ISO 45001:2018
Warranty: 10 Years at 90% output, 25 Years at 80% output (Performance Warranty)
