- SKU
- PES-PA-ELC-25822
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.

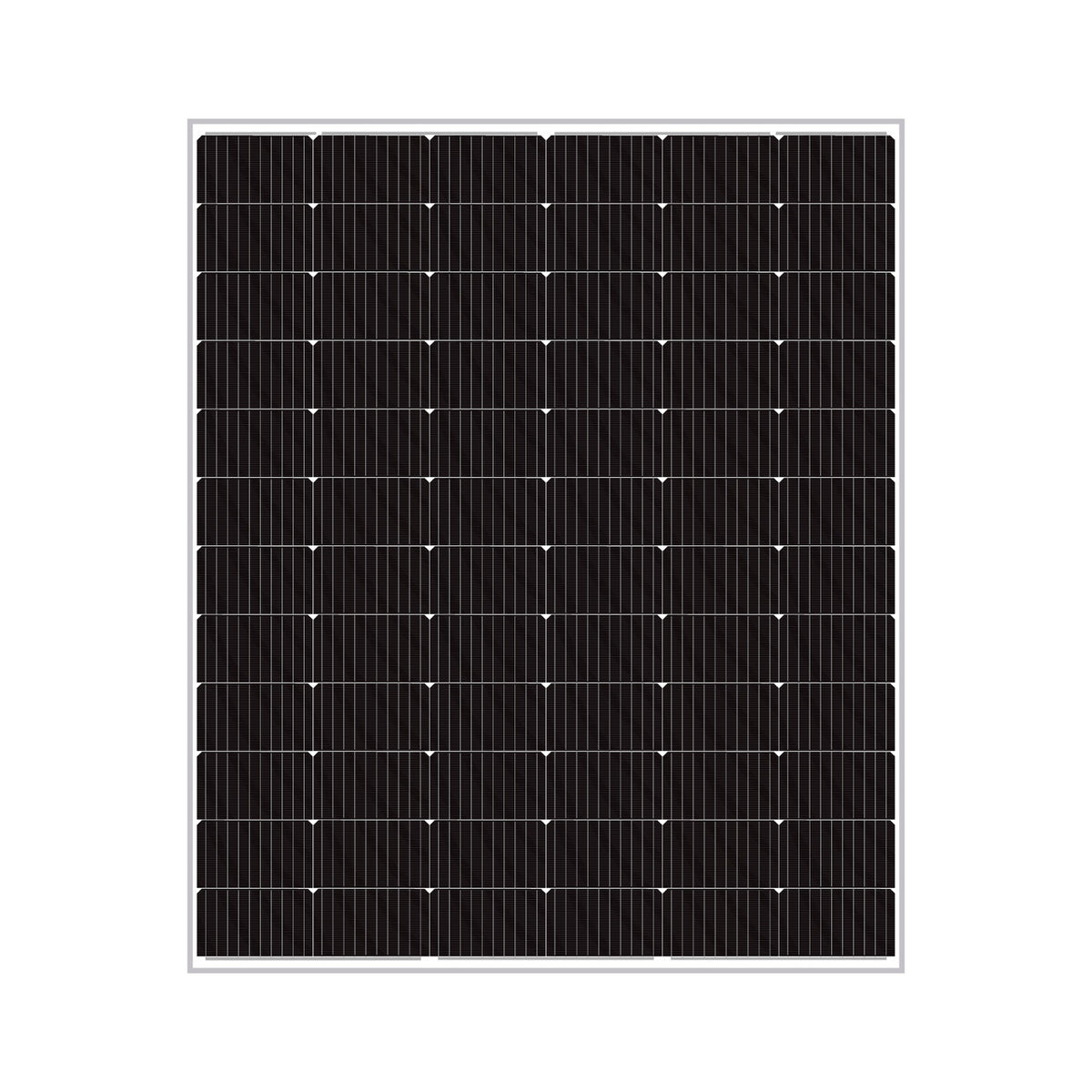

Type Monocrystalline Model No. AIKO-A695-MAE78Dw Product Warranty 15 Years Power Warranty 25 Years of 90.6 %, 30 Years of 88.85 % Total Degradation Rate ⏳ 0.37 % Maximum Power (Pmax) 695 Wp Voltage at Maximum Power (Vmpp) 49.09 V Current at Maximum Power (Impp) 14.16 A Open Circuit Voltage (Voc) 59.22 V Short Circuit Current (Isc) 14.77 A Panel Efficiency 24.9 % Maximum Power (Pmax) 523 Wp Voltage at Maximum Power (Vmpp) 46.36 V Current at Maximum Power (Impp) 11.3 A Open Circuit Voltage (Voc) 55.92 V Short Circuit Current (Isc) 11.95 A Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.26 %/°C Temperature Coefficient of Voc -0.22 %/°C Temperature Coefficient of Isc 0.05 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 2465x1134x30 mm Weight 34.5 kg Cell Number 156 Glass Thickness 2 mm Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Connector Type MC4 Cable Crossection 4 mm2 Cable Length
Technology: Back Contact, N-type
Power Range: 675 ~ 700 Wp
Panel Efficiency: 24.1 ~ 25 %
Weight: 34.5 kg
Seller Name: Shanghai AIKO Energy Co., Ltd.
Country: China
| SKU | PES-PA-ELC-25822 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Mpn | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
