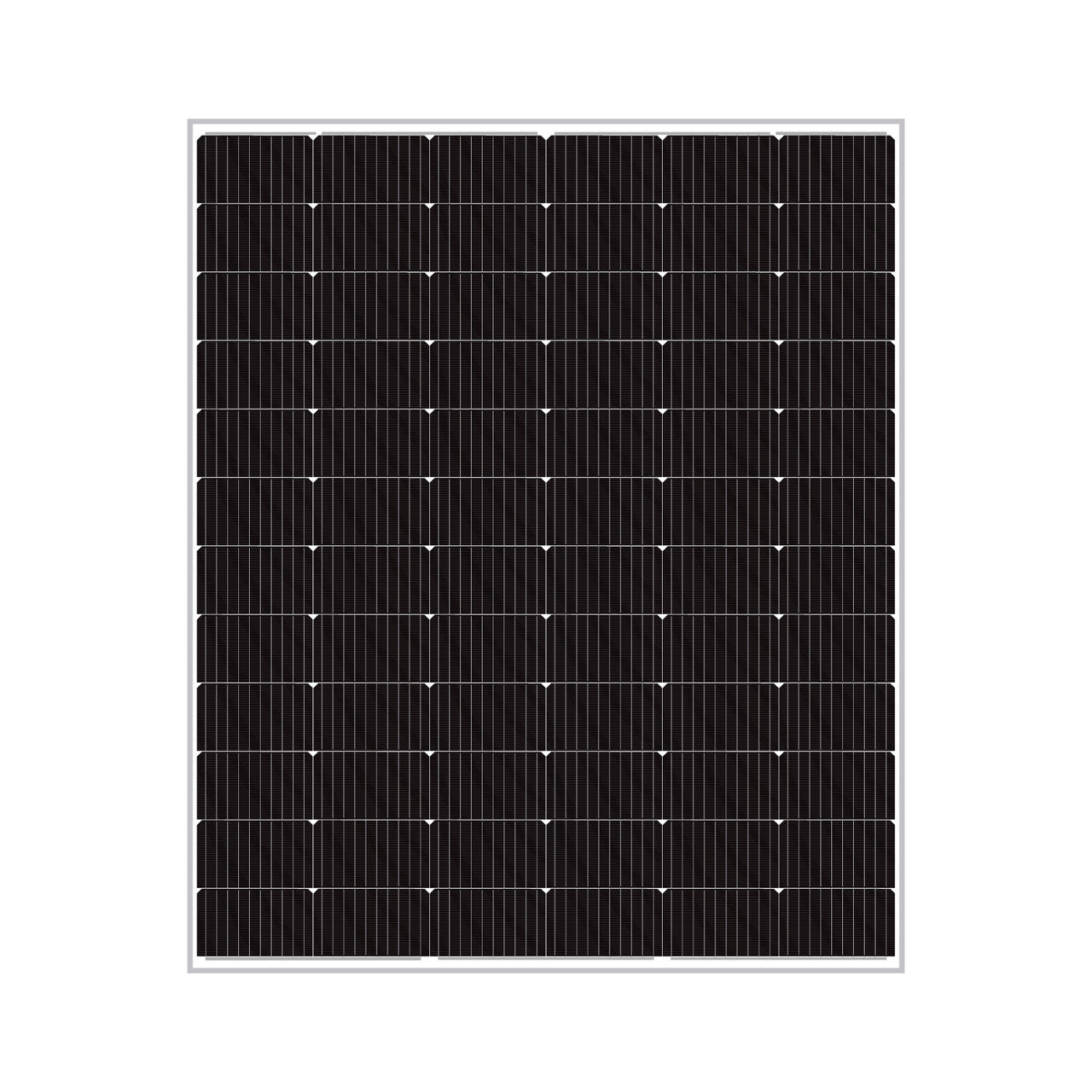

AIKO AIKO-A630-MAH72Dw 630W N-Type Back Contact Solar Panel
Model AIKO-A630-MAH72Dw | N-Type ABC | 144 Cells | Monocrystalline | 1500V System Voltage
Product Overview
The AIKO AIKO-A630-MAH72Dw is a high-performance 630W solar panel built with N-type back contact technology. It is designed for demanding projects that need strong energy output and excellent module efficiency. With a conversion efficiency of 24.4%, this panel supports more power generation in limited roof or ground space. It also features a 144-cell configuration, a durable dual-glass structure, and a 1500V maximum system voltage. The panel suits commercial and utility-scale installations where long-term reliability matters. Its low degradation profile helps preserve output over decades.
Key Benefits
High power output: Delivers up to 630W for strong system performance and reduced balance-of-system costs.
Excellent efficiency: Reaches 24.4% module efficiency for better energy yield in compact spaces.
Back contact design: The N-type ABC architecture supports better aesthetics and improved light capture.
Low degradation: Performance is protected by 25-year and 30-year warranty milestones with limited annual loss.
Rugged construction: Dual 2.0 mm glass, anodized aluminium frame, and IP68 junction box improve durability.
How It Works
This solar panel converts sunlight into electricity through N-type back contact cells. The contact layout keeps the front surface cleaner, which helps increase light absorption. Higher absorption supports stronger output throughout the day. The panel also performs well under real-world temperature conditions. Its low temperature coefficient helps limit power loss in hot climates. The dual-glass structure adds protection against environmental stress. Together, these features support stable production, long service life, and dependable output for large solar systems.
Back contact cell design: Electrical contacts are placed behind the cells. This reduces front-side shading and improves usable light intake.
Temperature control: The module is rated from -40°C to 85°C. Its low Pmax coefficient helps maintain output in warm conditions.
System integration: MC4-compatible connectors and a 1500V system rating simplify installation. These features make it suitable for modern PV arrays.
Technical Specifications
| Brand | AIKO |
| Model Number | AIKO-A630-MAH72Dw |
| Technology | N-Type ABC Back Contact |
| Cell Type | Monocrystalline |
| Cell Number | 144 (6 × 24) |
| Maximum Power (Pmax) | 630 Wp |
| Voltage at Maximum Power (Vmpp) | 45.4 V |
| Current at Maximum Power (Impp) | 13.88 A |
| Open Circuit Voltage (Voc) | 54.83 V |
| Short Circuit Current (Isc) | 14.62 A |
| Panel Efficiency | 24.4% |
| Operating Temperature Range | -40°C to 85°C |
| Temperature Coefficient of Pmax | -0.26%/°C |
| Temperature Coefficient of Voc | -0.22%/°C |
| Temperature Coefficient of Isc | 0.05%/°C |
| Maximum System Voltage | 1500 V |
| Series Fuse Rating | 25 A |
| Panel Dimension (H/W/D) | 2278 × 1134 × 30 mm |
| Weight | 32.5 kg |
| Glass Thickness | 2 mm + 2 mm dual glass |
| Frame Type | Anodized Aluminium |
| Junction Box Diodes | 3 bypass diodes |
| Junction Box Protection Class | IP68 |
| Connector Type | MC4 compatible / MC4-Evo2 |
| Cable Crossection | 4 mm² |
| Maximum Static Loading | Front 5400 Pa / Back 2400 Pa |
| Hail Test | 35 mm diameter hail at 27.2 m/s |
| Fire Rating | IEC Class C |
| Country of Origin | China |
| Seller Name | Shanghai AIKO Energy Co., Ltd. |
Certifications & Compliance
Certifications: IEC Class C fire rating, IP68 junction box protection, IEC-compatible MC4 connections
Inverter Compatibility: Suitable for 1500V system design and MC4-compatible PV wiring
Environmental: Built for -40°C to 85°C operation with dual-glass durability and strong mechanical loading resistance
Warranty: 25 years to 90.6% output, 30 years to 88.85% output, with 0.37% total degradation rate
