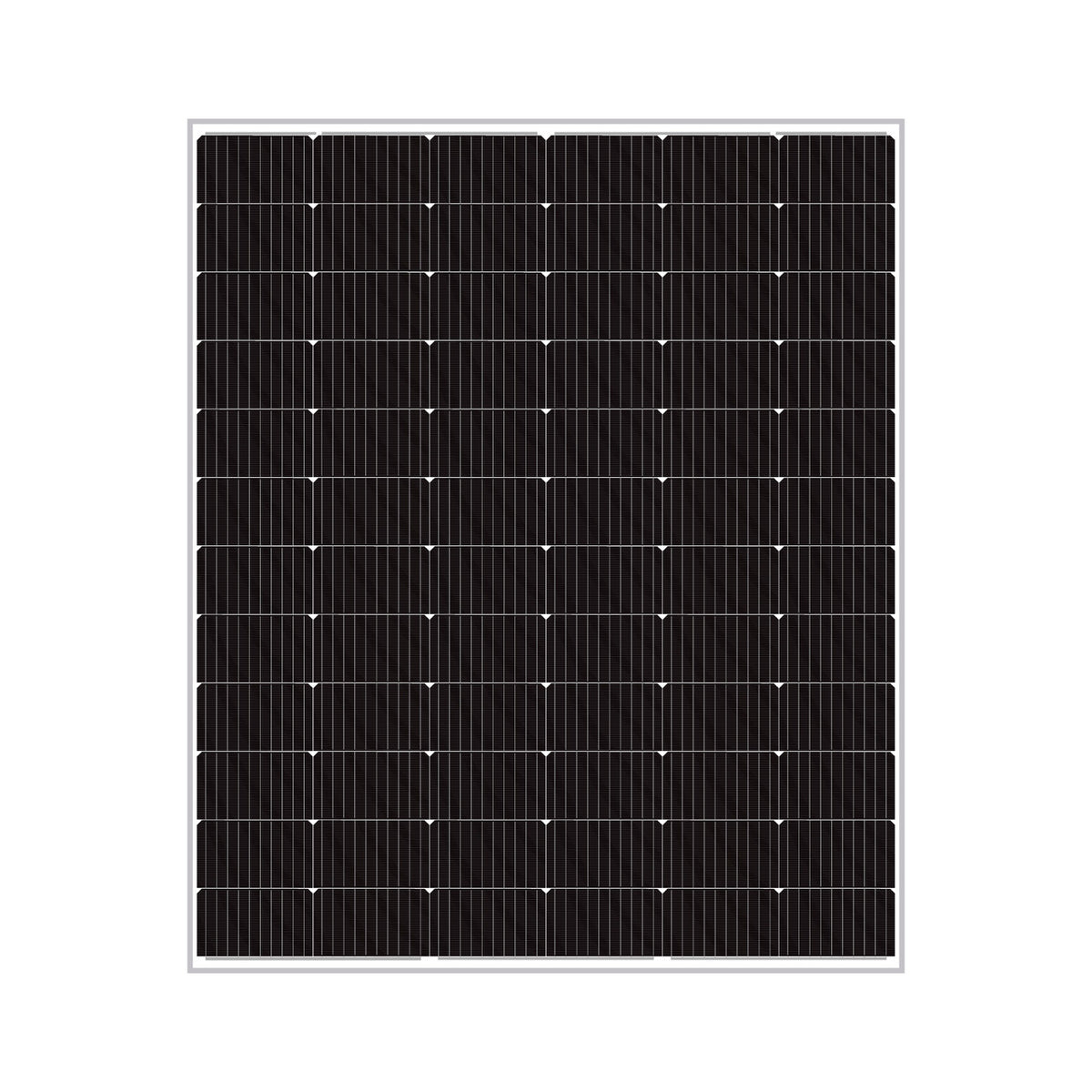

AIKO AIKO-A625-MAH72Dw 625W N-Type Back Contact Solar Panel
Model AIKO-A625-MAH72Dw | N-Type Back Contact | 144 Cells | Mono | 1500V System Voltage
Product Overview
The AIKO AIKO-A625-MAH72Dw is a high-output solar panel built for modern commercial and residential systems. It uses N-type back contact technology to deliver strong efficiency and reliable long-term performance. This 625W module combines advanced cell design with a slim 30 mm frame and a durable dual-glass structure. It is designed for customers who want more energy from limited roof space. The panel also supports excellent thermal behavior and low degradation over time. With a 25-year warranty to 90.6% and 30-year warranty to 88.85%, it offers dependable value for long-term solar projects.
Key Benefits
High power output: The module delivers 625W of maximum power for strong system performance.
Excellent efficiency: Panel efficiency reaches 24.2%, helping maximise yield in limited space.
Long-term reliability: Low annual degradation supports stable output across decades of operation.
Durable build: Dual 2.0 mm glass, an anodized aluminium frame, and IP68 protection improve durability.
Easy system integration: The panel includes MC4 compatible connectors and a 1500V system voltage rating.
How It Works
This AIKO solar panel converts sunlight into direct current electricity through 144 N-type ABC cells. The back contact design helps reduce front-side shading losses and supports higher energy harvest. When sunlight hits the cells, electrons are released and guided through the module circuit to create power. The high 24.2% efficiency supports better performance on rooftops where space is limited. Its low temperature coefficient helps the panel retain output during hot weather. The dual-glass construction and IP68 junction box also support stable operation in demanding outdoor conditions.
N-Type ABC cell conversion: The cells absorb sunlight and convert it into usable electrical energy. This cell architecture supports high efficiency and stable daily production.
Back contact design: Electrical contacts are positioned to reduce front-side obstructions. This supports better light capture across the module surface.
Thermal and structural control: Low temperature coefficients and dual glass help preserve performance in harsh environments. The structure is built for long-term reliability and consistent output.
Technical Specifications
| Brand | AIKO |
| Model Number | AIKO-A625-MAH72Dw |
| Technology | N-Type Back Contact, N-Type ABC |
| Module Type | Monocrystalline |
| Power Range | 610 ~ 630 Wp |
| Maximum Power (Pmax) | 625 Wp STC / 471 Wp NOCT |
| Module Efficiency | 24.2% |
| Voltage at Maximum Power | 45.3 V STC / 42.78 V NOCT |
| Current at Maximum Power | 13.8 A STC / 11.01 A NOCT |
| Open Circuit Voltage | 54.7 V STC / 51.66 V NOCT |
| Short Circuit Current | 14.54 A STC / 11.76 A NOCT |
| Operating Temperature Range | -40 to 85 °C |
| Temperature Coefficient of Pmax | -0.26 %/°C |
| Temperature Coefficient of Voc | -0.22 %/°C |
| Temperature Coefficient of Isc | 0.05 %/°C |
| Maximum System Voltage | 1500 V DC |
| Series Fuse Rating | 25 A |
| Panel Dimensions | 2278 x 1134 x 30 mm |
| Weight | 32.5 kg |
| Cell Number | 144 |
| Glass Thickness | 2 mm |
| Frame Type | Anodized Aluminium |
| Junction Box Diodes | 3 |
| Junction Box Protection Class | IP68 |
| Connector Type | MC4 compatible |
| Cable Crossection | 4 mm² |
| Seller | Shanghai AIKO Energy Co., Ltd. |
| Country of Origin | China |
Certifications & Compliance
Certifications: IEC 61730, IEC 61215, ISO 9001:2015, ISO 14001:2015
Inverter Compatibility: Designed for 1500V systems and MC4 compatible connections
Environmental: Operating temperature range -40 to 85 °C, IP68 junction box, dual-glass construction
Warranty: 25 years to 90.6% output and 30 years to 88.85% output, with 0.37% total degradation rate and 0.35% annual degradation from year 2 to 30
