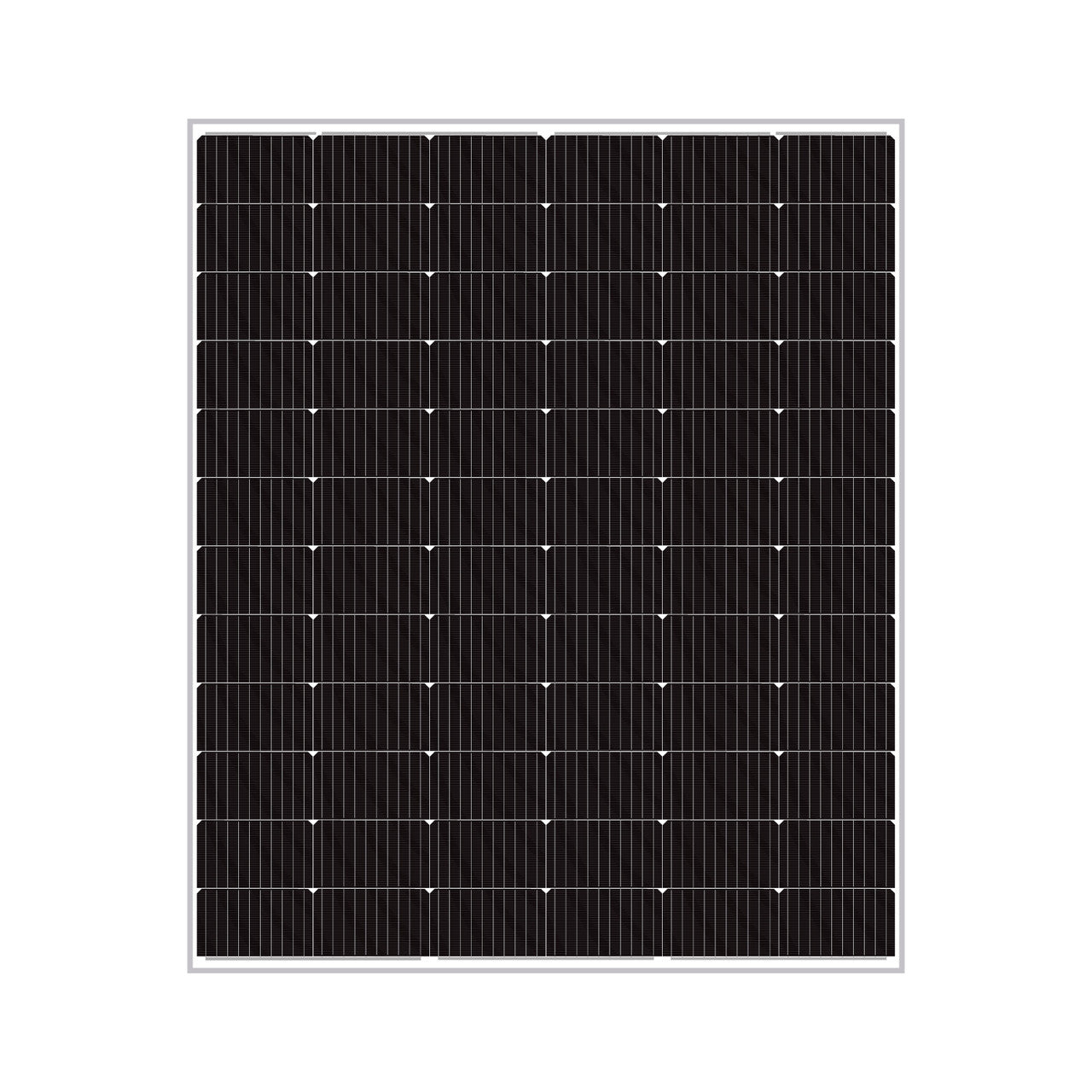

AIKO AIKO-A470-MAH54Db 470W N-Type ABC Dual-Glass Solar Panel
Model AIKO-A470-MAH54Db | N-Type ABC | 108 Half-Cell | Bifacial | 1500V System Voltage
Product Overview
The AIKO AIKO-A470-MAH54Db 470W N-Type ABC Dual-Glass Solar Panel delivers industry-leading performance for modern energy systems. This advanced monocrystalline module features 470 watts of peak power with an exceptional 23.6% efficiency rating. Its innovative N-Type ABC technology hides front metal lines behind cells, maximizing sunlight absorption. The dual-glass construction offers superior durability against weather and microcracks. Designed for bifacial applications, it captures light from both sides to boost energy yield. This panel is ideal for residential and commercial installations seeking high efficiency and long-term reliability. The sleek black finish enhances aesthetic appeal while maintaining top-tier performance metrics. Operating within a wide temperature range ensures consistent output in diverse climates.
Key Benefits
Ultra-High Efficiency: Achieves up to 23.6% module efficiency, delivering maximum energy yield per unit area.
N-Type ABC Technology: Advanced back-contact design hides grid lines, allowing more sunlight absorption and better aesthetics.
Dual-Glass Durability: Two layers of tempered glass provide exceptional resistance to hail, microcracks, and environmental stress.
Bifacial Energy Capture: Captures reflected light from the rear side, increasing total power generation in suitable installations.
Long-Term Warranty: Includes a 25-year product warranty and a 30-year linear performance warranty with minimal degradation.
How It Works
This solar panel converts sunlight into electricity using N-Type ABC cells that eliminate front-side grid lines. The back-contact design allows photons to reach the semiconductor layer more directly, reducing resistance. Dual-glass construction protects internal components while enabling light transmission from both sides. The bifacial capability captures reflected sunlight from the ground or roof surface to boost efficiency. Temperature coefficients are optimized to maintain performance even in high-heat environments. This system ensures reliable energy generation with minimal degradation over decades of operation.
Back-Contact Cell Design: The ABC technology places all electrical contacts on the rear, hiding metal lines and increasing active light absorption area. This reduces electron resistance and improves overall conversion efficiency significantly.
Dual-Glass Protection: Two layers of 2mm coated semi-tempered glass shield the cells from hail, moisture, and physical impact. This construction also enhances fire resistance to Class A standards for safety.
Bifacial Light Capture: The transparent rear glass allows light to pass through and reflect off surfaces below the panel. This secondary light source increases total power output beyond standard monofacial panels.
Technical Specifications
| Cell Type | N-Type ABC |
| Module Type | Monocrystalline, Bifacial |
| Max Power (Pmax) | 470 Wp |
| Module Efficiency | 23.6% |
| Voltage at Max Power (Vmpp) | 34.74 V |
| Current at Max Power (Impp) | 13.54 A |
| Open Circuit Voltage (Voc) | 41.18 V |
| Short Circuit Current (Isc) | 14.32 A |
| Number of Cells | 108 (6x18) |
| Power Tolerance | 0~+3% |
| Temperature Coefficient (Pmax) | -0.26%/°C |
| Operating Temperature Range | -40°C to +85°C |
| Maximum System Voltage | 1500 V DC |
| Series Fuse Rating | 25 A |
| Glass Type | Dual Glass (2.0+2.0mm) |
| Frame Material | Black Anodized Aluminium |
| Dimensions (H/W/D) | 1757 x 1134 x 30 mm |
| Weight | 24.5 kg |
| Junction Box Protection | IP68, 3 Bypass Diodes |
| Connector Type | MC4-Evo2 |
| Cable Crosssection | 4 mm² |
| Cable Length | 1200 mm |
| Fire Resistance Class | Class A (IEC) |
| Hail Resistance | 25 mm @ 23 m/s |
Certifications & Compliance
Certifications: IEC 61215, IEC 61730, TÜV, CE, ISO 9001
Inverter Compatibility: Compatible with all major string inverters supporting 1500V systems
Environmental: RoHS Compliant, Lead-free manufacturing, Class A Fire Rating
Warranty: 25-Year Product Warranty, 30-Year Linear Performance Warranty (≤1% first year, ≤0.35%/year thereafter)
