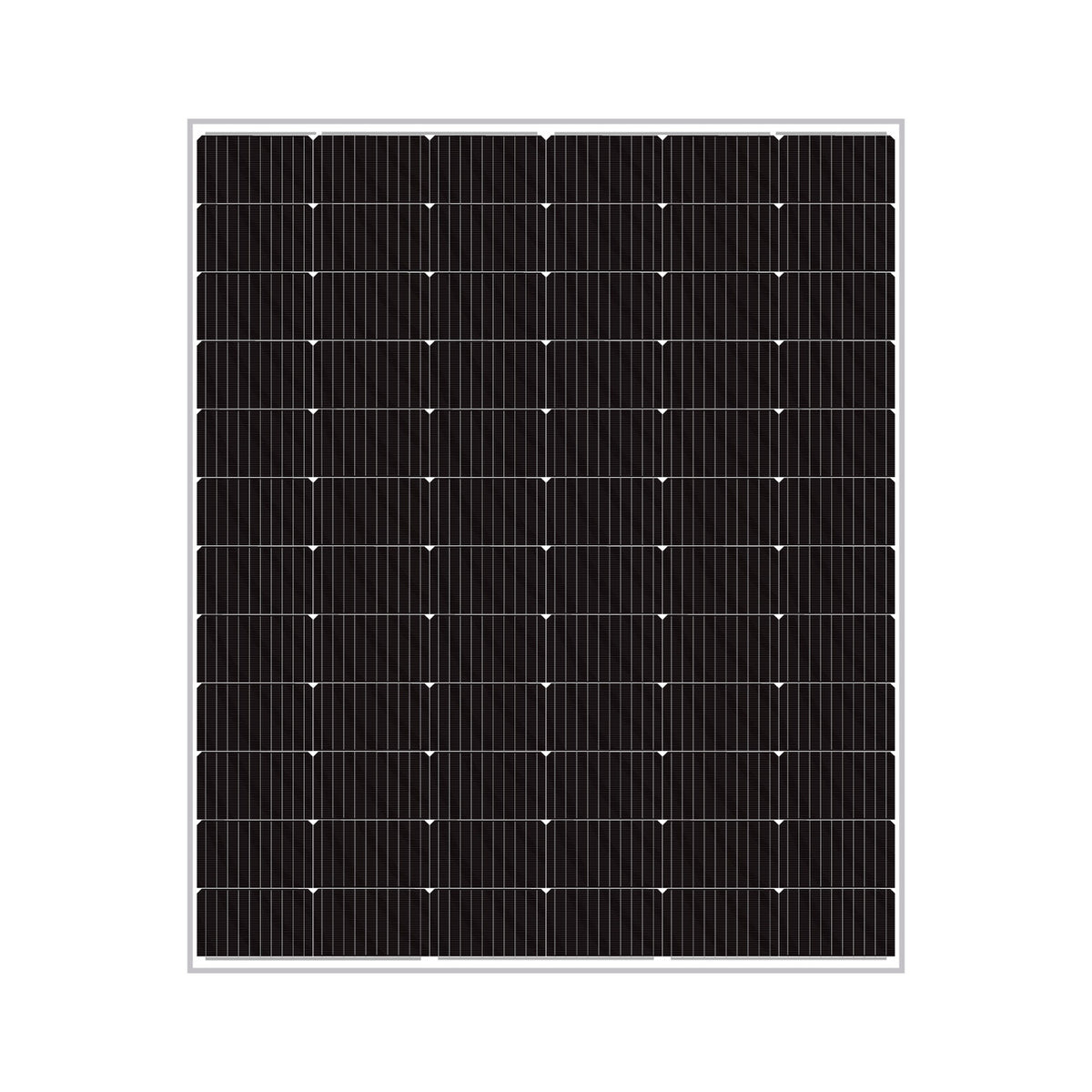

AIKO AIKO-A465-MAH54Db 465W N-Type ABC Monocrystalline Solar Panel
AIKO-A465-MAH54Db | Back Contact N-Type | 108 Cells | Monocrystalline | 1500V System Voltage
Product Overview
The AIKO AIKO-A465-MAH54Db 465W N-Type ABC Monocrystalline Solar Panel represents the pinnacle of modern photovoltaic engineering. This advanced panel utilizes exclusive N-type ABC (All-Back Contact) technology to eliminate front busbars completely. This unique design significantly enhances light absorption while providing a sleek, uniform black appearance. With a maximum power output of 465 Wp and an impressive efficiency of 23.3%, it delivers superior energy generation for residential and commercial projects. The dual-glass construction ensures exceptional durability against harsh weather conditions like heavy snow and strong winds. Its low temperature coefficient of -0.26%/°C guarantees stable performance even in high-heat environments. This panel is designed for long-term reliability with a 25-year product warranty and a 30-year performance warranty. Installers will appreciate its manageable weight of 24.5 kg and standard MC4 connectors for easy integration.
Key Benefits
Superior Efficiency: Achieves 23.3% module efficiency to maximize energy yield per square meter.
Advanced ABC Technology: N-type All-Back Contact cells remove front busbars for better light capture and aesthetics.
Extreme Durability: Dual-glass construction withstands snow loads up to 5400 Pa and wind loads of 2400 Pa.
Low Degradation Rate: Features a maximum degradation of only 0.35% per year after the first year.
Premium Warranty: Includes a 25-year product warranty and a 30-year linear performance warranty.
How It Works
This solar panel operates by converting sunlight directly into electricity using high-quality N-type monocrystalline silicon cells. The unique ABC technology places all electrical contacts on the rear side of the cell, eliminating the need for front metal grid lines. This design allows photons to strike the entire cell surface without obstruction, significantly boosting efficiency. The dual-glass structure protects the internal components from moisture and physical damage while maintaining thermal stability. Its optimized temperature coefficient ensures that power output remains high even when ambient temperatures rise significantly. The integrated bypass diodes prevent power loss during partial shading events by isolating affected sections automatically.
Back Contact Mechanism: Electrical contacts are positioned entirely on the back of the cell to maximize light absorption area.
N-Type Silicon Advantage: N-type cells resist impurity-induced degradation better than traditional P-type silicon for longer life.
Dual-Glass Protection: Two layers of tempered glass provide robust shielding against environmental stress and mechanical impact.
Technical Specifications
| Nominal Power (Pmax) | 465 Wp |
| Module Efficiency | 23.3% |
| Cell Technology | N-Type ABC Back Contact |
| Cell Count | 108 Monocrystalline Cells |
| Voltage at Max Power (Vmpp) | 34.68 V |
| Current at Max Power (Impp) | 13.41 A |
| Open Circuit Voltage (Voc) | 41.12 V |
| Short Circuit Current (Isc) | 14.29 A |
| Max System Voltage | 1500 V |
| Temperature Coefficient of Pmax | -0.26%/°C |
| Operating Temperature Range | -40°C to +85°C |
| Dimensions (H/W/D) | 1757 x 1134 x 30 mm |
| Weight | 24.5 kg |
| Glass Thickness | 2 mm Tempered Glass |
| Frame Type | Anodized Aluminium, Black |
| Junction Box Protection | IP68 with 3 Bypass Diodes |
| Connector Type | MC4 |
| Cable Crossection | 4 mm² |
| Cable Length | 1200 mm |
| Series Fuse Rating | 25 A |
| Power Warranty | 25 Years @ 90.6%, 30 Years @ 88.85% |
| Total Degradation Rate | 0.37% Maximum |
Certifications & Compliance
Certifications: IEC 61215, IEC 61730, TUV Certified
Inverter Compatibility: Compatible with all major string inverters (SMA, Fronius, Huawei, Growatt)
Environmental: PFAS-free, RoHS Compliant, Green Product Certification
Warranty: 25-Year Product Warranty and 30-Year Linear Performance Warranty (90.6% output at 25 years)
