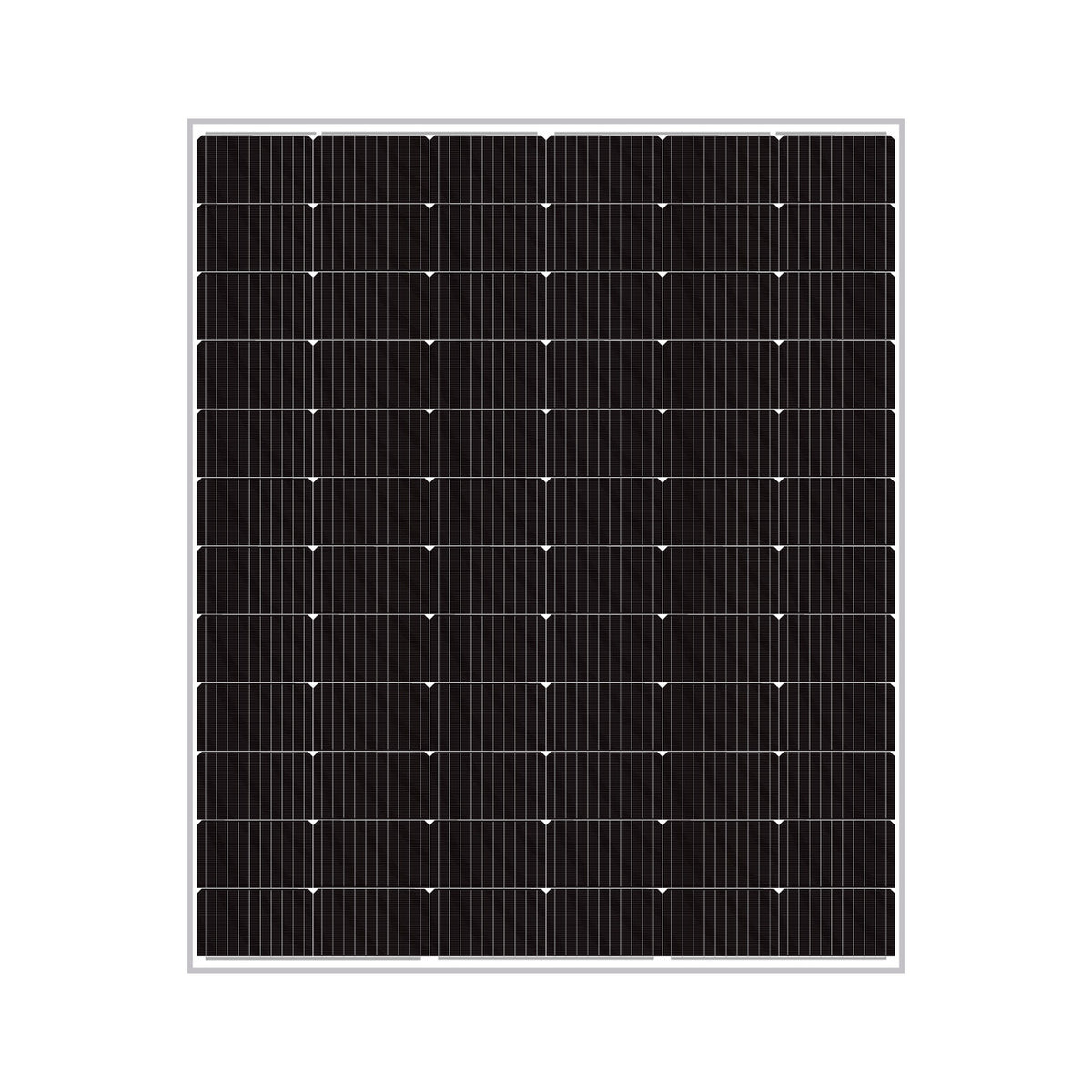

AIKO AIKO-A460-MAH54Db 460W N-Type ABC Monocrystalline Solar Panel
AIKO-A460-MAH54Db | N-Type ABC | 108 Half-Cell | Monocrystalline | 1500V System Voltage
Product Overview
The AIKO AIKO-A460-MAH54Db 460W N-Type ABC Monocrystalline Solar Panel represents the pinnacle of modern photovoltaic engineering. This Neostar 2S+ dual-glass module delivers exceptional 23.1% efficiency for maximum energy harvest. Its advanced N-Type ABC technology hides front metal lines, allowing more sunlight absorption. The all-black aesthetic suits residential roofs while providing superior durability against harsh weather. With a 25-year product warranty and 30-year power warranty, this panel ensures long-term reliability. It operates efficiently between -40°C and 85°C, making it ideal for diverse climates worldwide. The robust glass-glass construction protects against moisture and mechanical stress effectively.
Key Benefits
Superior Efficiency: Achieves 23.1% module efficiency to maximize power output per square meter for lower energy costs.
Advanced ABC Technology: N-Type ABC cells hide front grid lines, increasing light absorption and reducing reflection losses significantly.
Premium Warranty: Includes a 25-year product warranty and 30-year power warranty guaranteeing 90.6% output after 25 years.
Dual-Glass Durability: Glass-glass construction offers enhanced resistance to moisture, corrosion, and mechanical stress compared to standard panels.
All-Black Aesthetic: The sleek black frame and cells blend seamlessly with modern residential roofs for an elegant visual appearance.
How It Works
This solar panel converts sunlight into electricity using advanced N-Type ABC photovoltaic cells. The dual-glass design protects internal components while allowing high light transmission. When photons strike the cells, they excite electrons to create a direct current. The junction box regulates this flow and includes bypass diodes to prevent power loss during shading. This system ensures consistent energy generation even under partial cloud cover or low-light conditions.
Photon Absorption: Sunlight photons penetrate the glass surface and strike the N-Type ABC cells hidden beneath the front grid. This process excites electrons within the semiconductor material to generate electrical current.
Current Regulation: The junction box collects the generated direct current and routes it through MC4 EVO2 connectors. Three bypass diodes inside the box prevent reverse current flow if part of the panel is shaded.
Energy Conversion: The direct current flows through cables to an inverter that converts it into usable alternating current. This alternating current powers household appliances or feeds directly into the electrical grid.
Technical Specifications
| Model Number | AIKO-A460-MAH54Db |
| Cell Type | N-Type ABC Monocrystalline |
| Maximum Power (Pmax) | 460 Wp |
| Module Efficiency | 23.1% |
| Voltage at Max Power (Vmpp) | 34.62 V |
| Current at Max Power (Impp) | 13.29 A |
| Open Circuit Voltage (Voc) | 41.06 V |
| Short Circuit Current (Isc) | 14.25 A |
| Number of Cells | 108 |
| Dimensions (H/W/D) | 1757 x 1134 x 30 mm |
| Weight | 24.5 kg |
| Glass Thickness | 2 mm (Front & Back) |
| Frame Type | Anodized Aluminium, Black |
| Junction Box Protection | IP 68 |
| Connector Type | MC4 EVO2 |
| Cable Length | 1200 mm |
| Max System Voltage | 1500 V |
| Temperature Coefficient (Pmax) | -0.26 %/°C |
| Operating Temperature Range | -40°C to +85°C |
| Power Tolerance | 0 to +3% |
| Annual Degradation (Year 2-30) | ≤ 0.35% |
Certifications & Compliance
Certifications: CE, IEC 61730 (2016), IEC 61215 (2021), ISO 9001:2015, ISO 14001:2015
Inverter Compatibility: Compatible with all major string inverters featuring MC4 EVO2 connectors
Environmental: RoHS compliant, Lead-free, Low carbon footprint manufacturing
Warranty: 25-year product warranty; 30-year power warranty (90.6% output at 25 years, 88.85% at 30 years)
