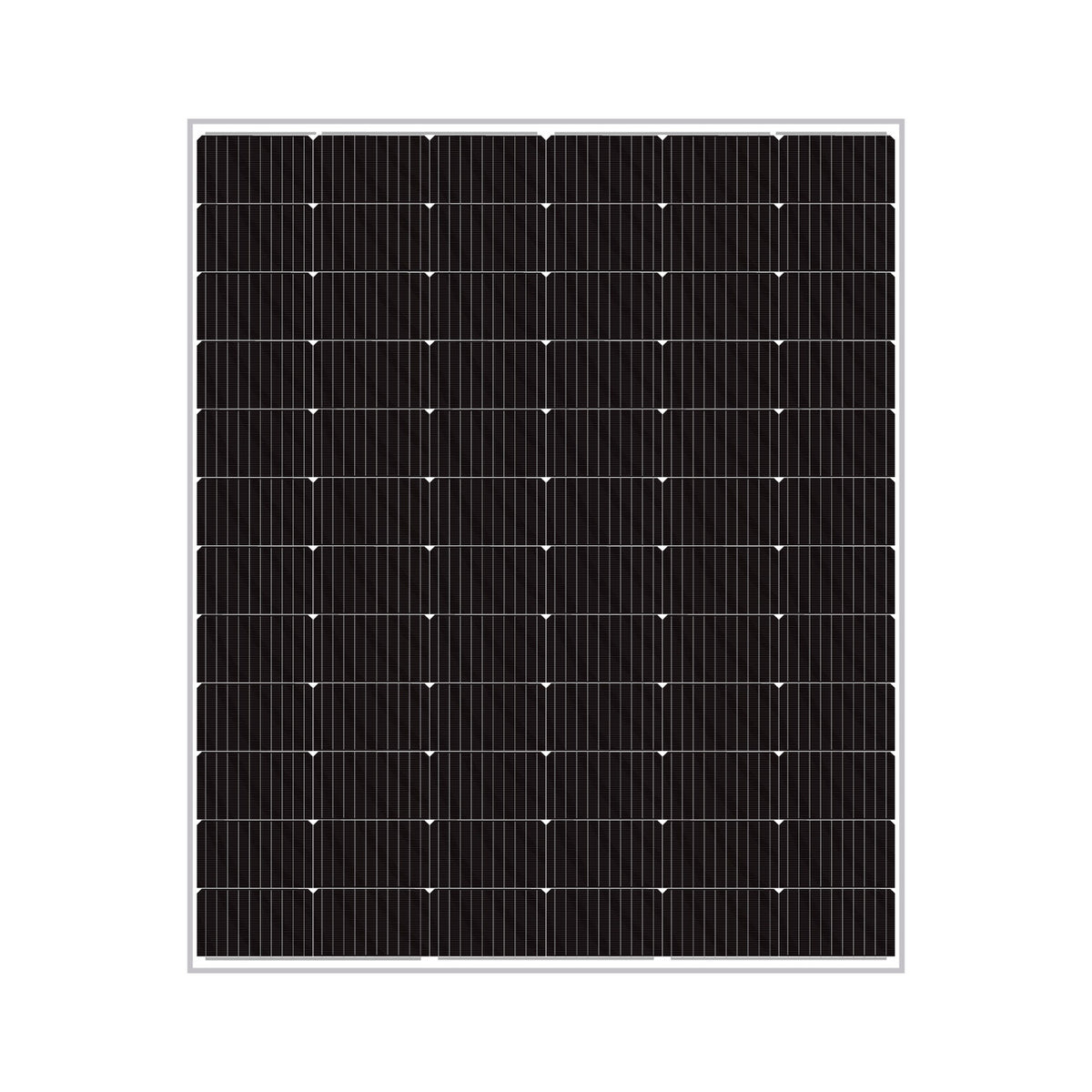

AIKO AIKO-A450-MAH54Db 450W N-Type ABC Monocrystalline Solar Panel
AIKO-A450-MAH54Db | N-Type ABC | 108 Half-Cell | Mono | 1500V System Voltage
Product Overview
The AIKO AIKO-A450-MAH54Db 450W N-Type ABC Monocrystalline Solar Panel represents the pinnacle of modern photovoltaic technology. This high-performance module utilizes advanced N-type All-Back-Contact (ABC) technology to ensure superior efficiency and maximum light conversion. Its sleek all-black design eliminates front contacts, offering exceptional aesthetic value for residential and commercial installations. With a robust 450 Wp output and 22.6% efficiency, it delivers reliable energy for diverse solar systems. The dual-glass construction provides enhanced durability against harsh environmental conditions. This panel is ideal for users seeking a blend of premium performance, long-term reliability, and modern visual appeal. It supports a maximum system voltage of 1500V, making it versatile for various grid configurations.
Key Benefits
Superior Efficiency: Achieves 22.6% module efficiency with 450 Wp power output for optimal energy generation.
All-Black Design: Features a sleek, contact-free front surface that enhances aesthetic appeal for modern homes.
Dual-Glass Durability: Built with 2mm coated semi-tempered glass on both sides for extreme weather resistance.
Long-Term Warranty: Includes a 25-year power warranty guaranteeing 90.6% output and a 30-year total warranty.
Advanced N-Type Tech: Utilizes N-type ABC cells to minimize degradation and maximize light conversion efficiency.
How It Works
The AIKO-A450-MAH54Db panel operates by converting sunlight into electricity through its advanced N-type All-Back-Contact cells. Photons strike the silicon cells, exciting electrons to generate a direct current. The back-contact design eliminates grid lines on the front, reducing light reflection and increasing absorption. This technology ensures minimal energy loss during conversion. The dual-glass structure protects internal components from moisture and physical stress. Three bypass diodes in the junction box prevent power loss during partial shading. The MC4 connectors ensure secure, weatherproof electrical connections for the entire system.
N-Type ABC Cell Technology: This technology places all electrical contacts on the rear of the cell. This design removes front grid lines, allowing more light to reach the silicon surface. It significantly reduces electron recombination for higher voltage output.
Dual-Glass Protection: The module uses two layers of 2mm tempered glass. This construction provides superior resistance against hail, wind, and thermal stress. It also prevents moisture ingress, ensuring long-term reliability.
Bypass Diode System: Three bypass diodes are integrated into the IP68-rated junction box. These diodes isolate shaded sections to prevent power loss. They protect the entire array from damage during partial shading events.
Technical Specifications
| Cell Type | N-Type ABC Monocrystalline |
| Maximum Power (Pmax) | 450 Wp |
| Panel Efficiency | 22.6% |
| Voltage at Max Power (Vmpp) | 34.5 V |
| Current at Max Power (Impp) | 13.05 A |
| Open Circuit Voltage (Voc) | 40.94 V |
| Short Circuit Current (Isc) | 14.12 A |
| Number of Cells | 108 (6 x 18) |
| Panel Dimension (H/W/D) | 1757 x 1134 x 30 mm |
| Weight | 24.5 kg |
| Glass Type | Dual Glass, 2.0 + 2.0 mm |
| Frame Type | Anodized Aluminium, Black |
| Junction Box Rating | IP68, 3 Bypass Diodes |
| Connector Type | MC4 EVO2 |
| Cable Crossection | 4 mm² (12 AWG) |
| Cable Length | 1200 mm |
| Operating Temperature Range | -40°C to +85°C |
| Max System Voltage | 1500 V |
| Series Fuse Rating | 25 A |
| Temperature Coefficient (Pmax) | -0.26 %/°C |
| First-Year Degradation | ≤1% |
| Annual Degradation (Year 2-30) | ≤0.35% |
Certifications & Compliance
Certifications: IEC 61730 (2016), IEC 61215 (2021), ISO 9001:2015, ISO 14001:2015
Inverter Compatibility: Compatible with all major string inverters supporting 1500V systems
Environmental: RoHS Compliant, Lead-Free Solder, Green Product Certified
Warranty: 25-Year Power Warranty (90.6% output), 30-Year Total Warranty (88.85% output)
