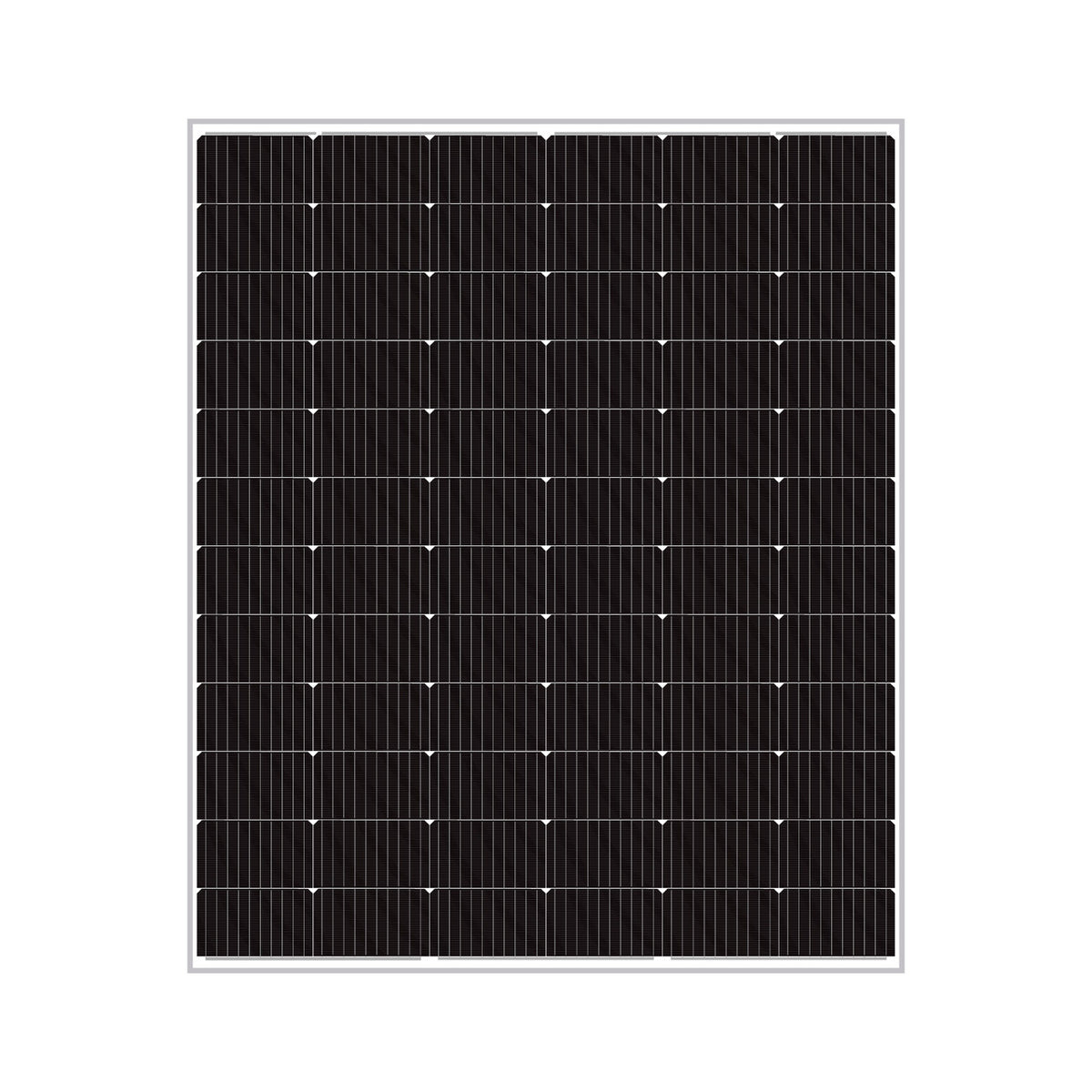

AIKO AIKO-A445-MAH54Db 445W N-Type ABC Monocrystalline Solar Panel
AIKO-A445-MAH54Db | Back Contact N-Type | 108 Half-Cell | Monofacial | 1500V System Voltage
Product Overview
The AIKO AIKO-A445-MAH54Db 445W N-Type ABC Monocrystalline Solar Panel delivers exceptional performance for modern energy systems. This advanced module utilizes cutting-edge Back Contact technology to eliminate grid lines on the front surface. The N-Type ABC cell design ensures superior efficiency up to 22.3 percent. Its robust dual-glass construction provides enhanced durability against harsh weather conditions. The full-black aesthetic offers a sleek look perfect for residential roof installations. This monofacial panel maximizes power output while minimizing degradation over time. It operates efficiently in temperatures ranging from -40 to 85 degrees Celsius. The 1500V maximum system voltage supports large-scale grid integration projects. Shop now for reliable, high-efficiency solar energy solutions from Shanghai AIKO Energy Co., Ltd.
Key Benefits
Ultra-High Efficiency: Achieves 22.3% module efficiency with N-Type ABC technology for maximum energy yield.
Premium Durability: Dual-glass construction with 2mm coated semi-tempered glass ensures long-term structural integrity.
Low Degradation Rate: Features only 0.35% annual degradation from year two to thirty for sustained performance.
Superior Temperature Coefficient: Better -0.26%/°C coefficient maintains power output even in high-temperature environments.
Aesthetic Excellence: Full-black design with no front grid lines creates a clean, modern look for any roof.
How It Works
This solar panel converts sunlight into usable electricity through advanced photovoltaic principles. The N-Type ABC cells utilize back-contact technology to reduce electron resistance significantly. This design allows more photons to reach the active layer for better conversion rates. The dual-glass structure protects internal components while allowing light transmission efficiently. The system operates reliably across extreme temperature ranges without losing significant power. Three bypass diodes inside the junction box prevent power loss during partial shading events. This ensures consistent energy generation even when some cells are obstructed by shadows.
Back Contact Technology: Electrical contacts are placed entirely on the rear side, eliminating grid lines on the front. This maximizes light absorption area and reduces optical losses significantly.
N-Type Cell Structure: N-type silicon cells resist degradation from light-induced effects better than traditional P-type cells. This results in higher long-term efficiency and lower annual power loss rates.
Bypass Diode Protection: Three integrated bypass diodes allow current to flow around shaded sections automatically. This prevents hot spots and maintains overall system output during partial shading conditions.
Technical Specifications
| Cell Type | N-Type ABC (Back Contact) |
| Maximum Power (Pmax) | 445 Wp |
| Module Efficiency | 22.3% |
| Voltage at Max Power (Vmpp) | 34.44 V |
| Current at Max Power (Impp) | 12.93 A |
| Open Circuit Voltage (Voc) | 40.88 V |
| Short Circuit Current (Isc) | 14.02 A |
| Temperature Coefficient of Pmax | -0.26 %/°C |
| Operating Temperature Range | -40°C to +85°C |
| Maximum System Voltage | 1500 V |
| Number of Cells | 108 (6x18) |
| Panel Dimensions (H/W/D) | 1757 x 1134 x 30 mm |
| Weight | 24.5 kg |
| Glass Type & Thickness | Dual Glass, 2.0mm + 2.0mm Coated Tempered |
| Frame Type | Black Anodized Aluminium |
| Junction Box Protection | IP68 with 3 Bypass Diodes |
| Connector Type | MC4 EVO2 |
| Cable Cross Section | 4 mm² (IEC) / 12AWG (UL) |
| Cable Length | 1200 mm |
Certifications & Compliance
Certifications: IEC 61215, IEC 61730, ISO 9001, ISO 14001
Inverter Compatibility: Compatible with all major string inverters supporting 1500V DC input
Environmental: RoHS Compliant, Lead-free, Low Carbon Footprint Manufacturing
Warranty: 25-Year Product Warranty and 30-Year Performance Warranty (90.6% at 25 years, 88.85% at 30 years)
Documentation
Product Datasheet (PDF)● Available | Contact us for lead time and pricing
| SKU | PES-SPS-SOL-0553 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Mpn | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
