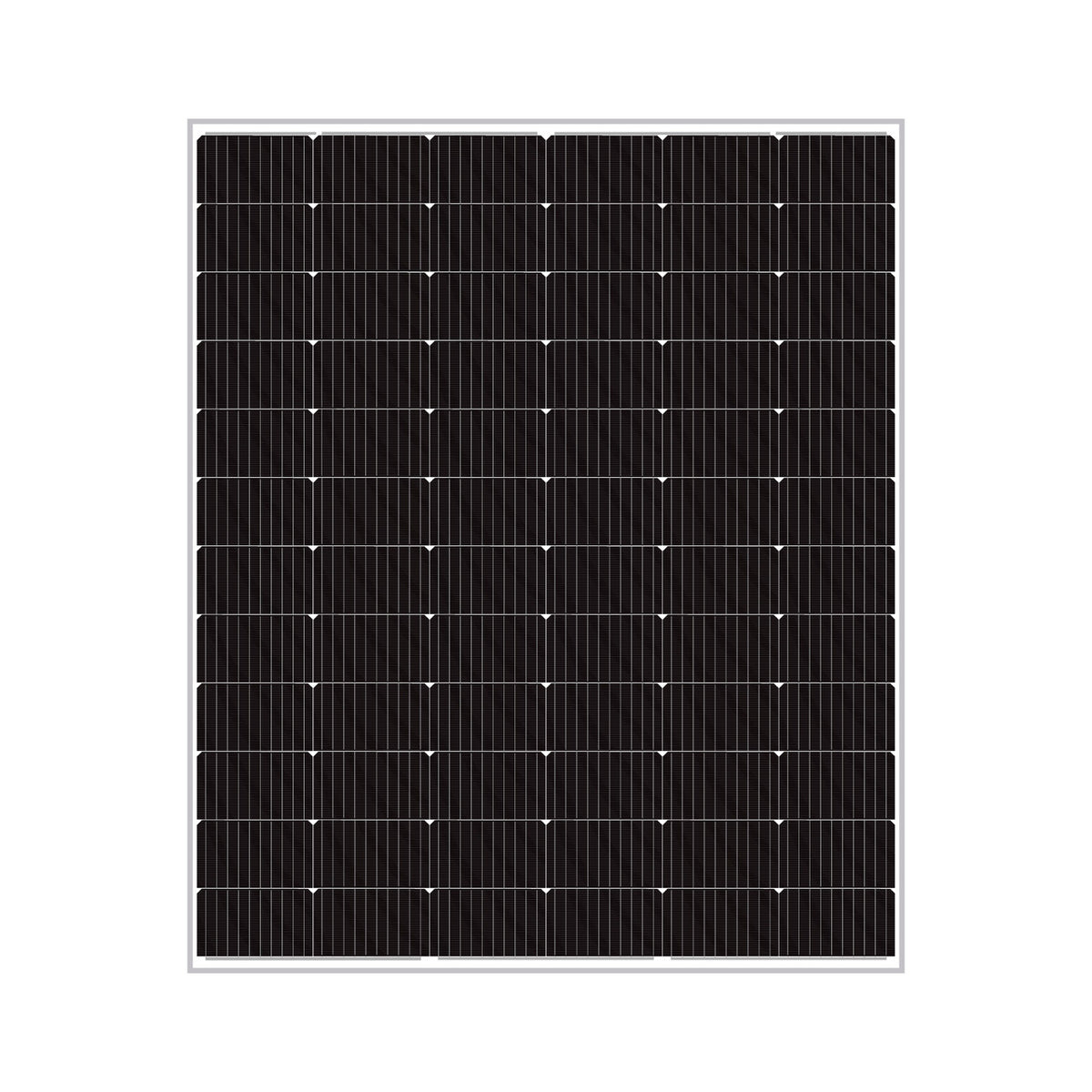

AIKO AIKO-A440-MAH54Db 440W N-Type ABC Back Contact Solar Panel
AIKO-A440-MAH54Db | N-Type ABC | 108 Cells Back Contact | Mono | 1500V System Voltage
Product Overview
The AIKO AIKO-A440-MAH54Db 440W N-Type ABC Back Contact Solar Panel represents the pinnacle of modern photovoltaic technology. This advanced monocrystalline module utilizes cutting-edge N-Type ABC (All Back Contact) cell architecture to maximize energy conversion. Its robust design ensures superior performance even under challenging environmental conditions. The panel delivers a reliable 440 Wp of power with an impressive 22.1% efficiency rating. Builders and homeowners benefit from its lightweight 24.5 kg structure and compact 1757x1134x30 mm dimensions. This solar panel is engineered for longevity, offering a premium 25-year product warranty and a 30-year performance guarantee. Its advanced back-contact design eliminates front grid lines, enhancing aesthetics and reducing micro-crack risks. The dual-glass construction provides exceptional durability against hail, wind, and corrosion. Ideal for both residential and commercial installations, this module optimizes space while maximizing output. It features a high maximum system voltage of 1500 V for flexible system design. The AIKO-A440-MAH54Db is a top-tier choice for sustainable energy generation.
Key Benefits
Superior Efficiency: Achieves 22.1% efficiency with N-Type ABC technology for maximum energy yield per square meter.
Enhanced Durability: Features dual 2mm tempered glass and an anodized aluminum frame for extreme weather resistance.
Premium Warranty: Includes a 25-year product warranty and a 30-year linear performance warranty guaranteeing 90.6% output.
Low Degradation Rate: Experiences minimal degradation of 0.37% annually, ensuring long-term energy stability and value.
Optimal Shading Performance: Advanced cell design and three bypass diodes optimize power output even during partial shading conditions.
How It Works
The AIKO AIKO-A440-MAH54Db solar panel operates by converting sunlight directly into electricity using advanced N-Type ABC cells. Unlike traditional panels, this module places all electrical contacts on the rear side, eliminating front grid lines. This design reduces light reflection and increases the active surface area for photon absorption. The N-Type material inherently resists degradation from light-induced effects, ensuring consistent performance over decades. When photons strike the cell, they excite electrons to create a flow of direct current. The panel's high voltage and current ratings allow efficient power transmission to the grid or battery system. Its robust construction withstands temperatures ranging from -40°C to +85°C without significant power loss. The integrated bypass diodes prevent hot spots by redirecting current around shaded cells. This intelligent management maximizes total system output even in imperfect lighting. The dual-glass structure protects internal components from moisture and physical damage, extending the module's lifespan significantly.
All Back Contact Technology: Positions all electrodes on the rear, maximizing front light capture and reducing optical losses.
N-Type Cell Stability: Uses N-Type silicon which is immune to light-induced degradation, ensuring stable power output for 30 years.
Bypass Diode Protection: Three integrated diodes redirect current around shaded sections, preventing power loss and thermal damage.
Technical Specifications
| Module Type | Monocrystalline N-Type ABC |
| Model Number | AIKO-A440-MAH54Db |
| Maximum Power (Pmax) | 440 Wp |
| Voltage at Max Power (Vmpp) | 34.38 V |
| Current at Max Power (Impp) | 12.8 A |
| Open Circuit Voltage (Voc) | 40.82 V |
| Short Circuit Current (Isc) | 13.92 A |
| Module Efficiency | 22.1% |
| Temperature Coefficient Pmax | -0.26%/°C |
| Operating Temperature Range | -40°C to +85°C |
| Maximum System Voltage | 1500 V |
| Series Fuse Rating | 25 A |
| Panel Dimensions (H/W/D) | 1757 x 1134 x 30 mm |
| Weight | 24.5 kg |
| Cell Number | 108 (6 x 18) |
| Glass Thickness | 2 mm (Dual Glass) |
| Frame Type | Anodized Aluminium, Black |
| Junction Box Protection | IP68 (3 Bypass Diodes) |
| Connector Type | MC4 |
| Cable Crossection | 4 mm² |
| Cable Length | 1200 mm |
| Power Warranty | 25 Years (90.6%) / 30 Years (88.85%) |
| Degradation Rate | 0.37% Total |
Certifications & Compliance
Certifications: IEC 61730 (2016), IEC 61215 (2021), ISO 9001:2015, ISO 14001:2015
Inverter Compatibility: Compatible with all major string inverters supporting 1500V systems
Environmental: Lead-free, IEC Class C hail resistance, RoHS compliant
Warranty: 25-Year Product Warranty, 30-Year Linear Performance Warranty (90.6% output)
Documentation
Product Datasheet (PDF)● Available | Contact us for lead time and pricing
