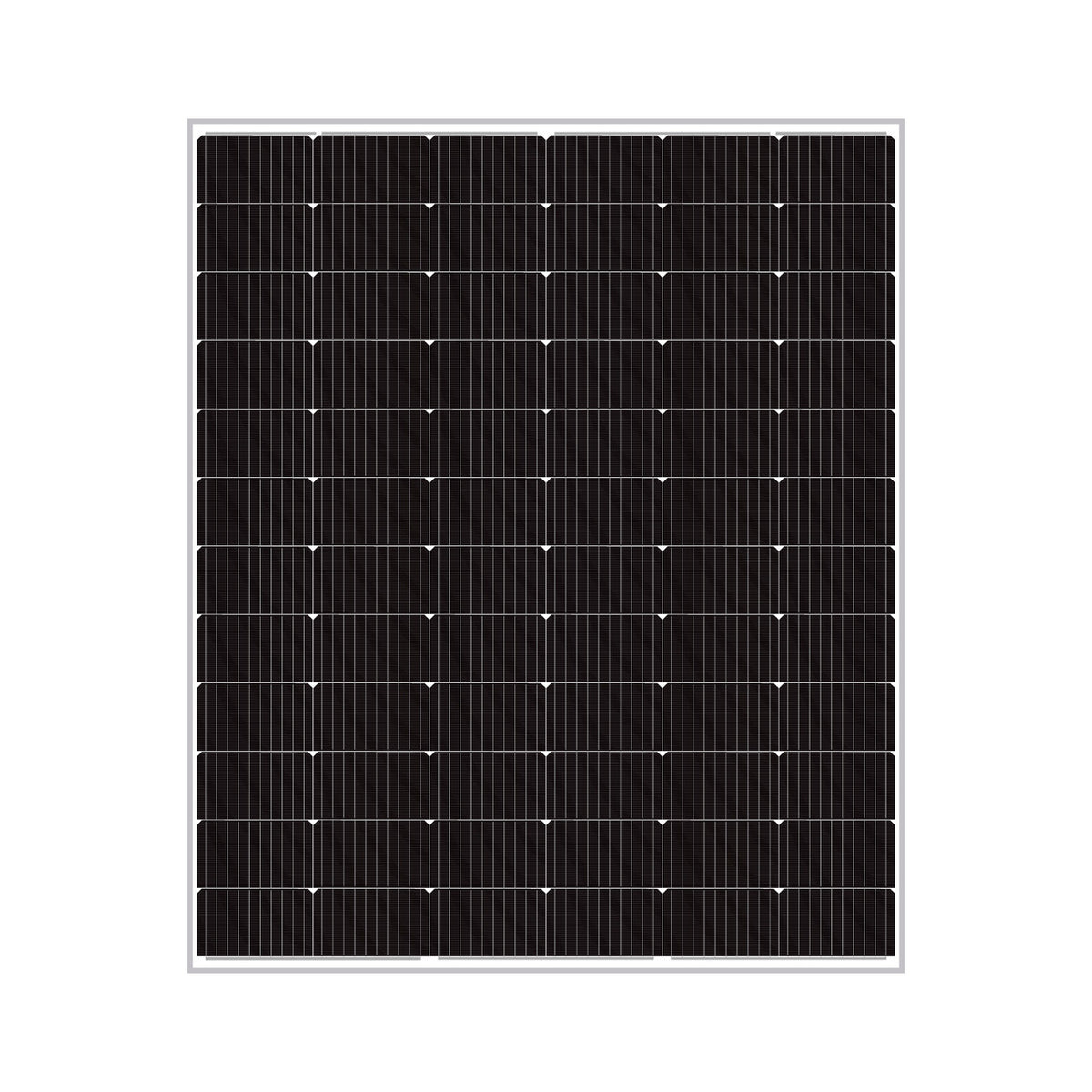

Agora Solar 430W Bifacial Monocrystalline Solar Panel
Model 430Wp | Monocrystalline | 108 Half-Cell | Bifacial | 1500V System Voltage
Product Overview
The Agora Solar 430W Bifacial Monocrystalline Solar Panel delivers unmatched energy performance for modern renewable systems. This advanced unit features 108 half-cut monocrystalline cells engineered for superior efficiency and durability. Its bifacial design captures sunlight from both front and rear surfaces, boosting total yield significantly. The panel operates efficiently across a wide temperature range from -40°C to 85°C. It supports a maximum system voltage of 1500V for flexible grid integration. Manufactured in Slovakia with automated precision, this panel ensures consistent quality. The 20-year product warranty provides long-term reliability for commercial and residential installations. Its lightweight design of 25.8 kg simplifies mounting and transport logistics. The MC4 connectors ensure secure and standardized electrical connections. This solar solution is ideal for agrovoltaics and ground-mounted arrays.
Key Benefits
Bifacial Energy Harvest: Captures sunlight from both sides to increase total energy yield by up to 30% in standard installations.
High Efficiency Rating: Achieves a 22.0% module efficiency, reducing balance of system costs through higher power density per square meter.
Extreme Durability: Built with double-glass construction and IP68 protection to withstand harsh weather conditions and mechanical stress.
Wide Temperature Range: Operates reliably between -40°C and 85°C, ensuring consistent performance in diverse global climates.
Long Warranty Coverage: Includes a 20-year product warranty, guaranteeing long-term reliability and peace of mind for investors.
How It Works
This solar panel converts sunlight into electricity using advanced photovoltaic technology. The monocrystalline cells absorb photons and release electrons to generate direct current. Its bifacial structure allows the rear side to capture reflected light from the ground or surrounding surfaces. This dual-sided absorption maximizes energy production even in low-light conditions. The half-cut cell design reduces internal resistance, improving overall efficiency and shade tolerance. The double-glass construction protects the internal components from environmental damage and moisture ingress. The junction box contains three diodes to prevent reverse current flow and ensure safe operation.
Dual-Side Absorption: The front absorbs direct sunlight while the rear captures reflected albedo light. This process significantly increases total energy output compared to traditional single-sided panels.
Half-Cut Cell Technology: Each cell is cut in half to lower resistive losses within the module. This design enhances performance under partial shading and improves thermal stability.
Double-Glass Protection: Two layers of 2mm glass encase the cells for superior durability. This construction offers 94% light transmittance and protects against humidity and mechanical impact.
Technical Specifications
| Maximum Power (Pmax) | 430 Wp |
| Power Tolerance | 0 ~ +1.16% |
| Voltage at Max Power (Vmpp) | 32.49 V |
| Current at Max Power (Impp) | 13.24 A |
| Open Circuit Voltage (Voc) | 38.07 V |
| Short Circuit Current (Isc) | 14 A |
| Temperature Coefficient of Pmax | -0.29%/°C |
| Maximum System Voltage | 1500 V |
| Cell Type | Monocrystalline |
| Number of Cells | 108 Half-Cut |
| Cell Size | 182×91 mm |
| Panel Dimensions (H/W/D) | 1722×1134×30 mm |
| Weight | 25.8 kg |
| Glass Thickness | 2 mm (Double Glass) |
| Junction Box Protection | IP 68 |
| Connector Type | MC4 |
| Cable Length | 1000 mm |
| Operating Temperature Range | -40°C to 85°C |
Certifications & Compliance
Certifications: Manufactured in Slovakia with automated precision, meeting international PV standards
Inverter Compatibility: Compatible with all major inverters supporting 1500V DC input systems
Environmental: RoHS compliant, lead-free construction, and double-glass design for durability
Warranty: 20-Year Product Warranty ensures long-term reliability and performance assurance
● Available | Contact us for lead time and pricing
| SKU | PES-SPS-SOL-0815 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Wattage |
No documents available for this product. Contact us to request documentation.
