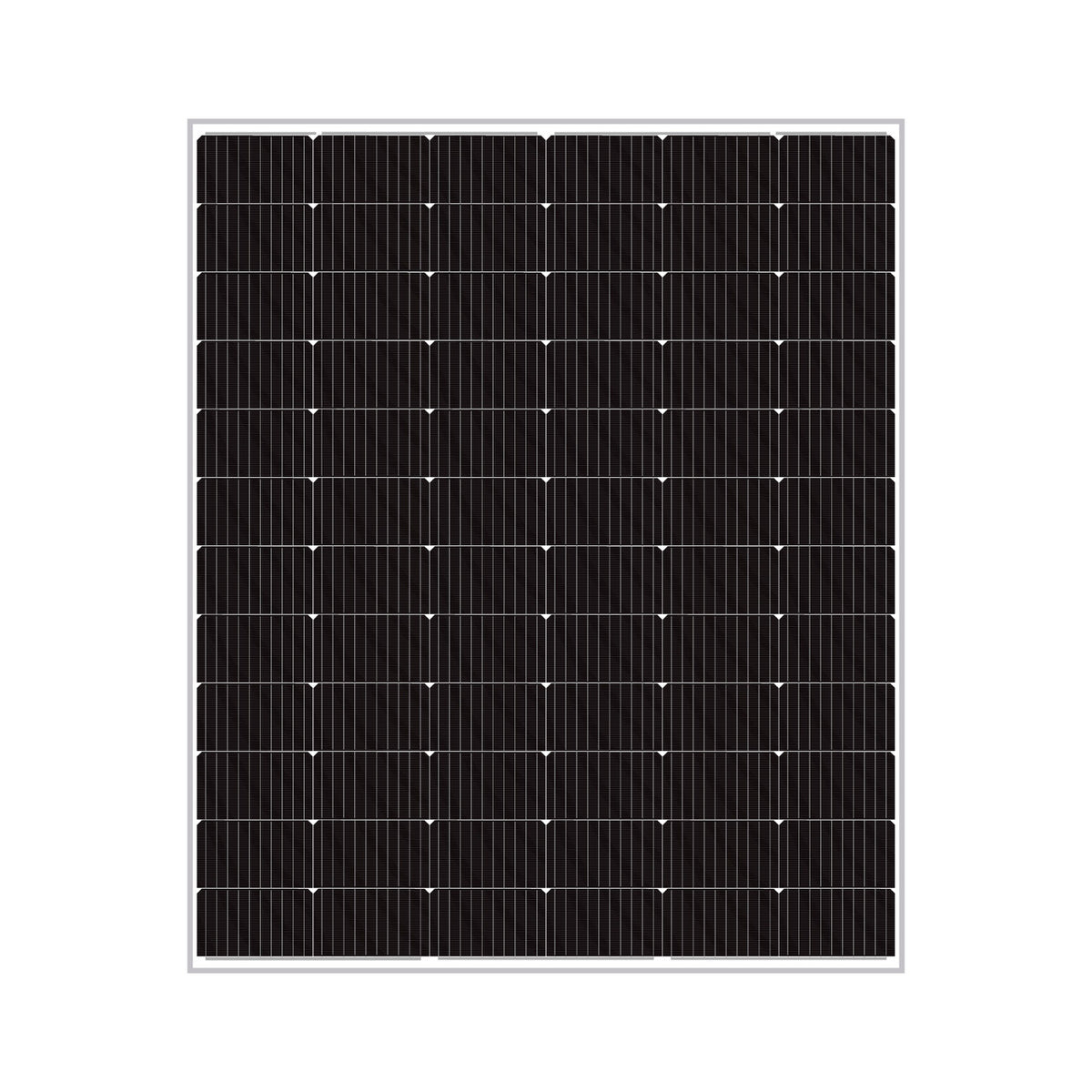

Agora Solar AG-B120 380Wp Bifacial Monocrystalline Solar Panel
Model AG-B120 | Monocrystalline | 120 Half-Cell | Bifacial | 1500V System Voltage
Product Overview
The Agora Solar 380 Wp bifacial monocrystalline solar panel delivers exceptional energy generation for diverse installations. This advanced panel features 120 high-quality monocrystalline cells optimized for maximum power output. Its bifacial technology captures sunlight from both front and rear surfaces, significantly boosting efficiency in real-world conditions. Manufactured in Slovakia with fully automated precision, this panel ensures consistent performance and durability. The robust aluminum frame supports extreme weather while maintaining structural integrity. Ideal for agricultural, commercial, and residential projects, it offers a reliable solution for sustainable energy needs. With a 20-year product warranty, owners gain long-term peace of mind. The panel operates efficiently across a wide temperature range, ensuring stability in varying climates. Its compact dimensions and lightweight design simplify installation processes without compromising power capacity.
Key Benefits
Enhanced Energy Yield: Bifacial design captures rear-side light, increasing total output by up to 15% compared to standard panels.
Superior Durability: Built with a strong 35mm aluminum frame and 2mm glass to withstand harsh environmental conditions.
Wide Temperature Range: Operates reliably between -40°C and +85°C, maintaining performance in extreme cold or heat.
High System Compatibility: Supports a maximum system voltage of 1500V, ideal for large-scale grid-tie and off-grid installations.
Long-Term Warranty: Includes a 20-year product warranty, ensuring protection and confidence for decades of operation.
How It Works
This solar panel converts sunlight into electricity using advanced photovoltaic technology. The monocrystalline cells absorb photons from direct sunlight on the front surface. Simultaneously, the bifacial design captures reflected and diffuse light on the rear side. This dual-sided absorption significantly increases the total energy generated per panel. The internal wiring minimizes losses, ensuring efficient power transfer to the connected system. The junction box protects the electrical connections from moisture and environmental damage. Overall, the panel maximizes energy harvest in diverse lighting conditions throughout the day.
Front-Side Absorption: Monocrystalline cells capture direct sunlight to generate the primary electrical current. This process converts high-intensity photons into usable energy efficiently.
Rear-Side Reflection: The transparent rear glass allows light reflection from the ground to generate additional power. This feature boosts output especially in snowy or bright environments.
Low Loss Wiring: Series-parallel wiring reduces internal resistance and shading effects for higher net output. This design ensures minimal energy loss during power transmission.
Technical Specifications
| Cell Type | Monocrystalline |
| Cell Technology | Bifacial |
| Number of Cells | 120 Cells |
| Maximum Power (Pmax) | 380 Wp |
| Power Tolerance | 0 ~ +1.35% |
| Voltage at Max Power (Vmpp) | 33.8 V |
| Current at Max Power (Impp) | 11.25 A |
| Open Circuit Voltage (Voc) | 41.3 V |
| Short Circuit Current (Isc) | 11.9 A |
| Temperature Coefficient of Pmax | -0.3%/°C |
| Operating Temperature Range | -40°C to +85°C |
| Maximum System Voltage | 1500 V |
| Panel Dimensions (H/W/D) | 1771 x 1049 x 35 mm |
| Weight | 23 kg |
| Cell Size | 166 x 83 mm |
| Glass Thickness | 2 mm |
| Junction Box Protection Class | IP 68 |
| Connector Type | MC4 |
| Cable Cross Section | 4 mm² |
| Cable Length | 1020 mm |
Certifications & Compliance
Certifications: Manufactured in Slovakia with automated production standards
Inverter Compatibility: Compatible with standard grid-tie and off-grid inverters
Environmental: IP 68 rated junction box for moisture protection
Warranty: 20-Year Product Warranty included
Documentation
Product Datasheet (PDF)● Available | Contact us for lead time and pricing
