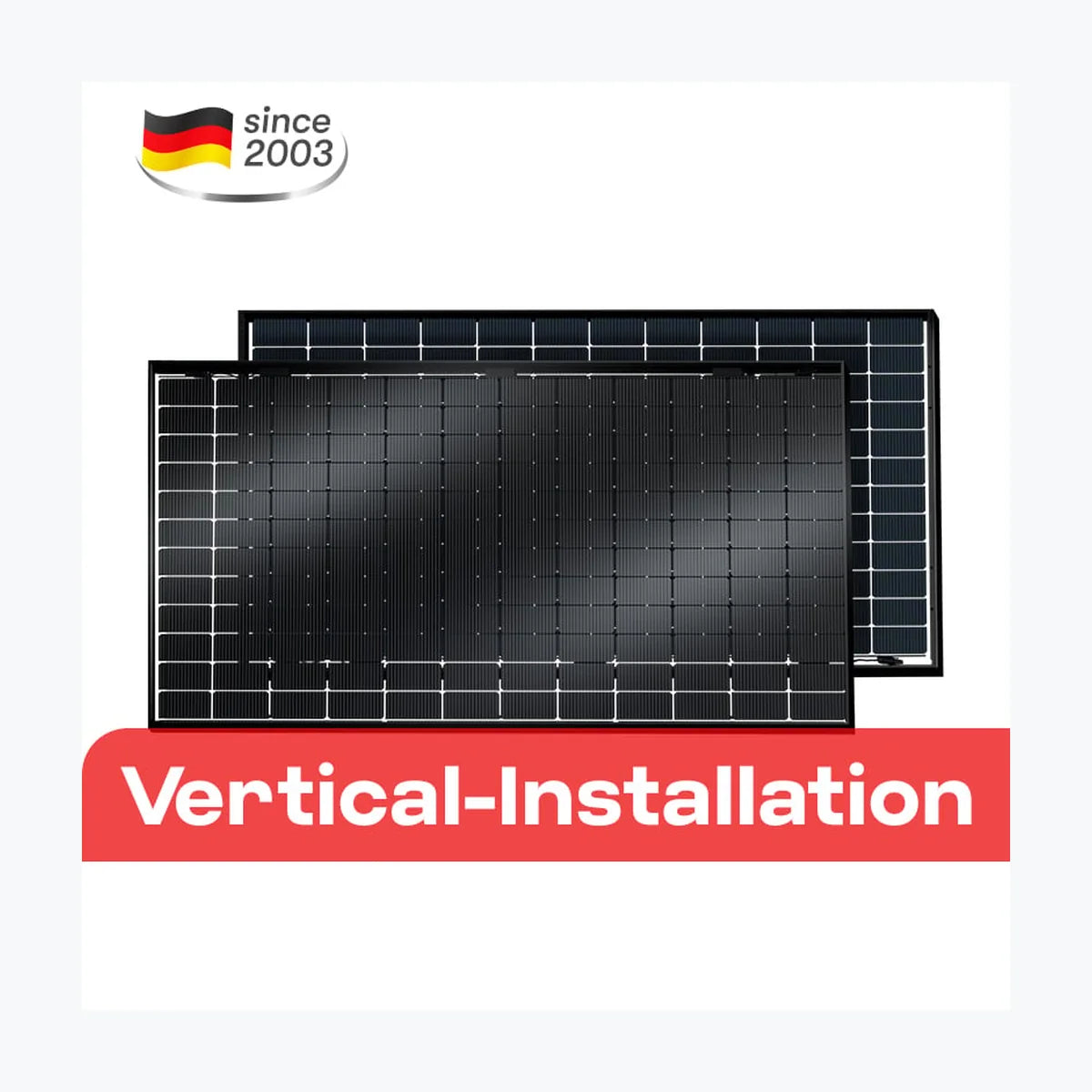

Aesolar AE570CMD-L144BD
PayPal Pay in 4 interest-free payments of $28.50 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-0484
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. AE570CMD-L144BD Product Warranty 30 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 570 Wp Voltage at Maximum Power (Vmpp) 42.72 V Current at Maximum Power (Impp) 13.34 A Open Circuit Voltage (Voc) 50.62 V Short Circuit Current (Isc) 14.26 A Panel Efficiency 21.58 % Maximum Power (Pmax) 434 Wp Voltage at Maximum Power (Vmpp) 39.7 V Current at Maximum Power (Impp) 10.94 A Open Circuit Voltage (Voc) 47.8 V Short Circuit Current (Isc) 11.5 A Temperature 42±2 °C Operating Temperature Range -40 - +85 °C Temperature Coefficient of Pmax -0.29 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.046 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1184x2276x6 mm Weight 29.5 kg Cell Number 144 Glass Type Anti-reflection Coating, Tempered Glass Thickness 2 mm Encapsulant Type POE Frame Type Frameless Junction Box Diodes 3 Junction Box
Technology: Bifacial, TOPCon
Power Range: 560 ~ 580 Wp
Panel Efficiency: 21.21 ~ 21.96 %
Weight: 29.5 kg
Seller Name: AE Alternative Energy GmbH
Country: Germany
| SKU | PES-SPS-SOL-0484 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Mpn | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
