- SKU
- PES-SPS-SOL-0168
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.

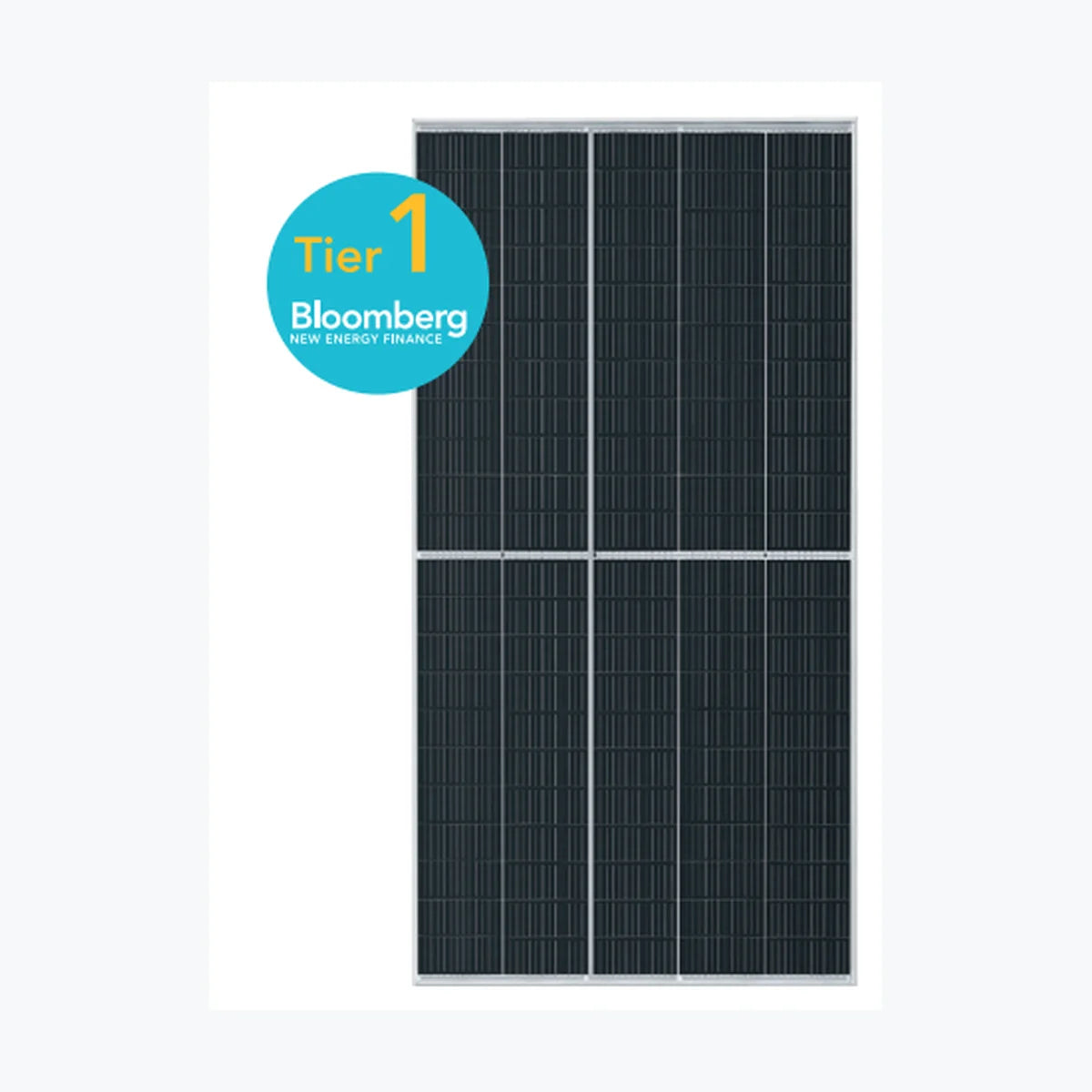

Type Monocrystalline Model No. AB540-55MHC Product Warranty 15 Years Power Warranty 15 Years of 87.4 %, 25 Years of 84.8 % Total Degradation Rate ⏳ 0.61 % Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 540 Wp Voltage at Maximum Power (Vmpp) 31.23 V Current at Maximum Power (Impp) 17.31 A Open Circuit Voltage (Voc) 37.54 V Short Circuit Current (Isc) 18.41 A Panel Efficiency 20.67 % Maximum Power (Pmax) 409 Wp Voltage at Maximum Power (Vmpp) 29 V Current at Maximum Power (Impp) 14.1 A Open Circuit Voltage (Voc) 35.3 V Short Circuit Current (Isc) 14.84 A Temperature 43±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.34 %/°C Temperature Coefficient of Voc -0.25 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2384x1096x35 mm Weight 28.6 kg Cell Number 110 Glass Type Tempered Glass Thickness 3.2 mm Frame Type Anodized Aluminium Junction Box Protection Class IP 68 Connector Type MC4 Ca
Technology: PERC
Power Range: 540 ~ 555 Wp
Panel Efficiency: 20.67 ~ 21.24 %
Weight: 28.6 kg
Seller Name: ABi-Solar Inc
Country: United States
| SKU | PES-SPS-SOL-0168 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Mpn | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
