- SKU
- PES-PA-ELC-27713
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for 3S. 50,000+ SKUs from 169 authorized brands.

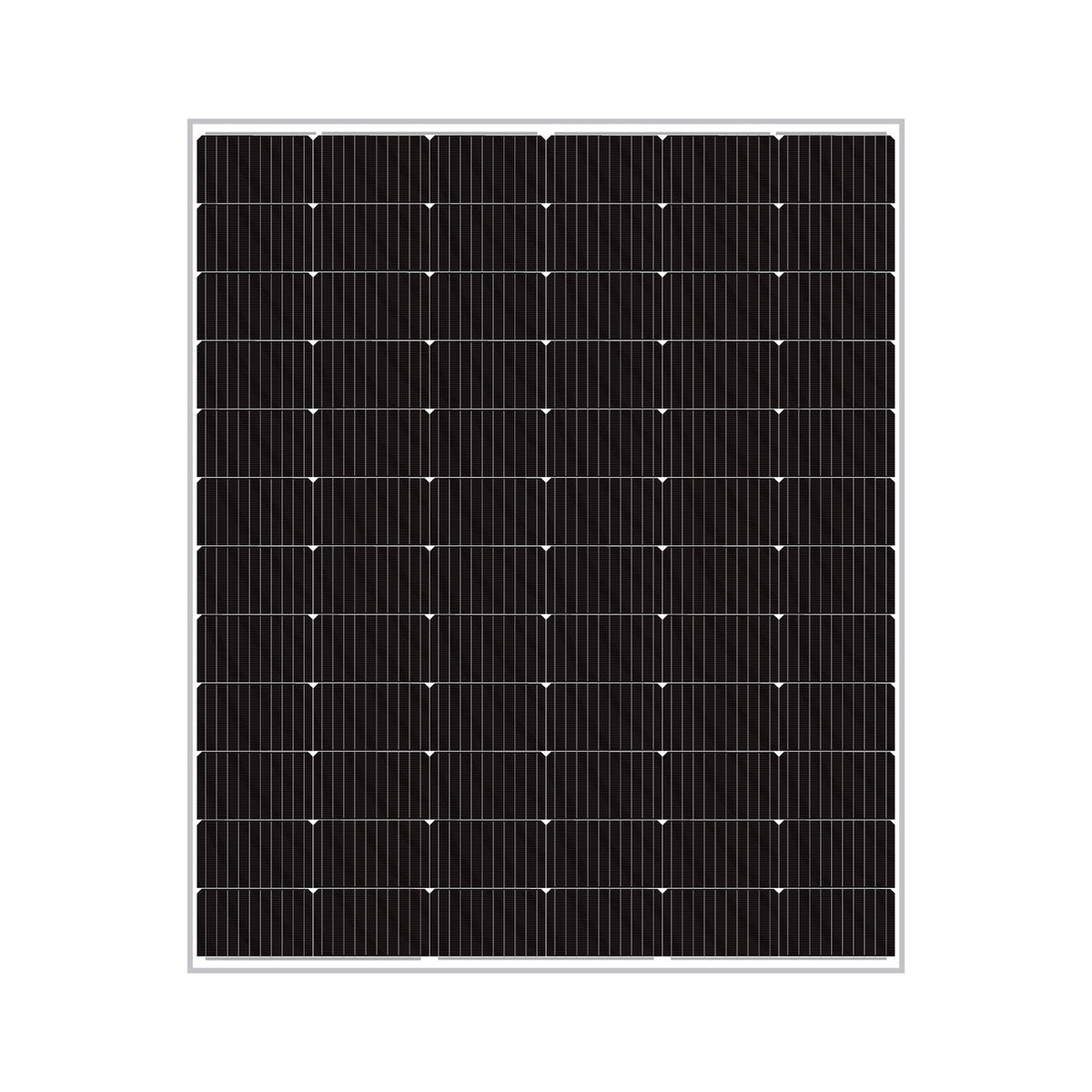

Type Monocrystalline Model No. MSD435P Product Warranty 10 Years Power Tolerance 0 ~ +1 % Maximum Power (Pmax) 435 Wp Voltage at Maximum Power (Vmpp) 33.9 V Current at Maximum Power (Impp) 12.77 A Open Circuit Voltage (Voc) 40.8 V Short Circuit Current (Isc) 13.67 A Panel Efficiency 20.3 % Maximum Power (Pmax) 330 Wp Voltage at Maximum Power (Vmpp) 32.05 V Current at Maximum Power (Impp) 10.3 A Open Circuit Voltage (Voc) 38.28 V Short Circuit Current (Isc) 10.95 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.35 %/°C Temperature Coefficient of Voc -0.276 %/°C Temperature Coefficient of Isc 0.046 %/°C Maximum System Voltage 1500 V Series Fuse Rating 25 A Panel Dimension (H/W/D) 1909x1134x35 mm Weight 23.9 kg Cell Number 120 Glass Thickness 3.2 mm Encapsulant Type EVA Frame Type Anodized Aluminium Junction Box Diodes 3 Junction Box Protection Class IP 68 Cable Crossection 4 mm2 Download Manufacturer's PDF Datasheet
Technology: PERC
Power Range: 430 ~ 455 Wp
Panel Efficiency: 19.9 ~ 21.1 %
Weight: 23.9 kg
Seller Name: 3S Import & Export Shijiazhuang Co., Ltd.
Country: China
| SKU | PES-PA-ELC-27713 |
|---|---|
| Manufacturer | 3S |
| Brand | |
| Container price | |
| Container qty | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
