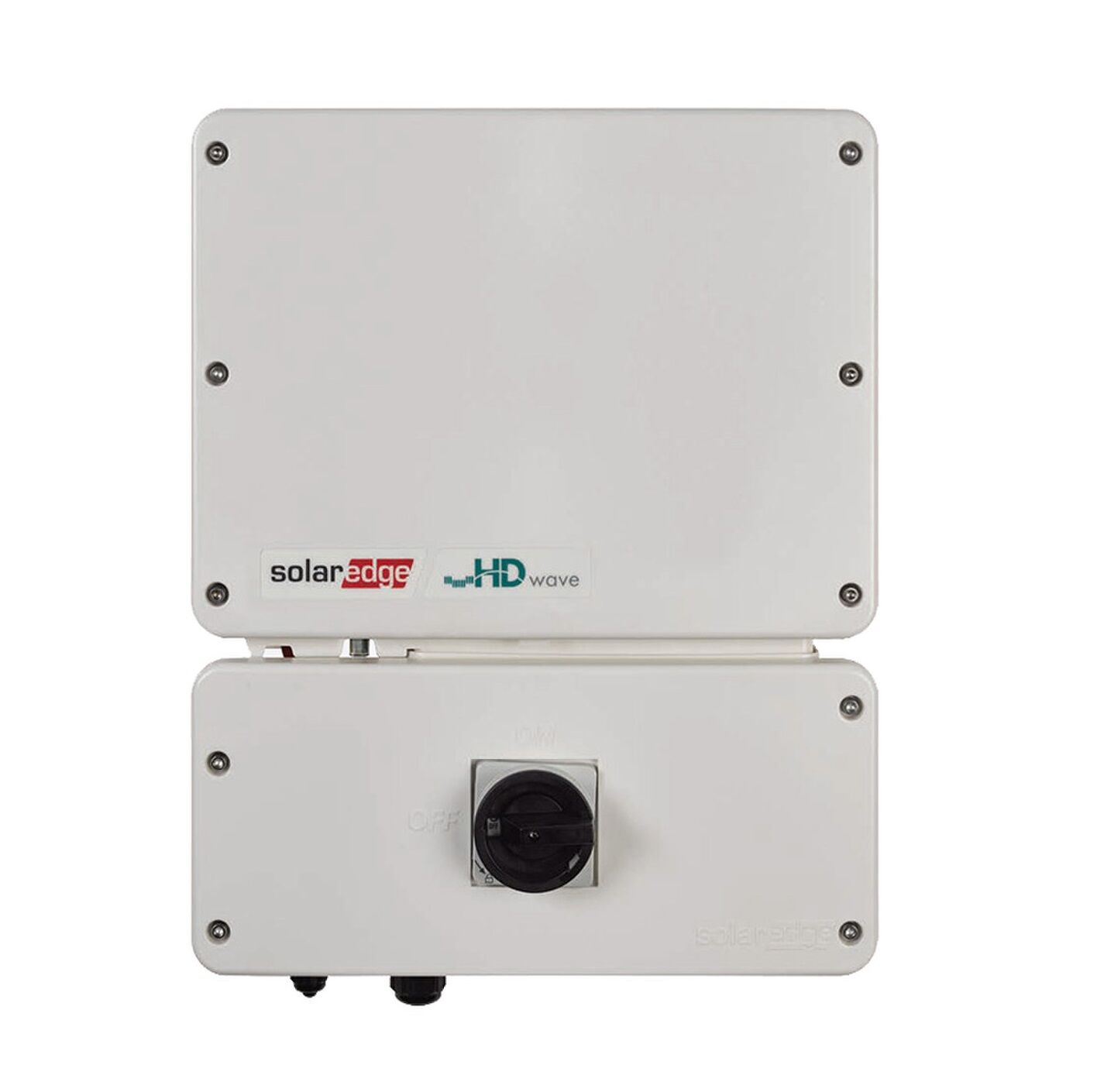

SolarEdge SE11400H-US000BEU5 11.4kW Single Phase Home Wave Inverter
The SolarEdge SE11400H-US000BEU5 is a powerful, high-efficiency single-phase inverter designed for residential solar systems. Part of the SolarEdge HD-Wave technology lineup, this 11.4 kW inverter offers exceptional energy conversion efficiency, lightweight design, and advanced monitoring features for seamless system integration and long-term performance.
Product Overview
Engineered with HD-Wave technology, the SE11400H-US000BEU5 delivers superior power density and reduced heat generation, allowing more compact and reliable operation. Its SetApp-enabled configuration simplifies commissioning via a smartphone, while integrated safety and communication features make it a top choice for modern smart solar homes.
Key Features
1. High-Efficiency HD-Wave Technology
Achieves up to 99% efficiency with cutting-edge waveform synthesis, reducing energy loss and maximizing solar yield.
2. Compact and Lightweight Design
Weighing under 30 lb, this inverter simplifies installation and requires minimal wall space compared to traditional models.
3. Smart Commissioning via SetApp
Fully configured using the SolarEdge SetApp mobile platform for streamlined setup without physical buttons or screens.
4. Integrated Arc Fault and Rapid Shutdown
Built-in arc fault protection and rapid shutdown compliance ensure superior system safety and NEC 2017 readiness.
5. SolarEdge Optimizer Compatibility
Designed for use with SolarEdge power optimizers to deliver module-level monitoring, safety, and performance optimization.
6. Grid Compliance and Communication
Meets U.S. and international grid requirements, with integrated RS485, Wi-Fi, and Ethernet communication options.
Applications
- Residential solar energy systems
- Smart grid-connected installations
- Battery-ready hybrid configurations
Technical Specifications
| Model | SE11400H-US000BEU5 |
| AC Rated Output Power | 11,400 W |
| Max DC Input Voltage | 480 VDC |
| Nominal DC Voltage | 380 VDC |
| MPPT Operating Range | 200 – 480 VDC |
| Max Input Current | 23 A |
| Nominal AC Output Voltage | 240 V Split Phase |
| Maximum Efficiency | 99.0% |
| Weighted Efficiency (CEC) | 98.3% |
| Operating Temperature | -13°F to +140°F (-25°C to +60°C) |
| Enclosure Rating | NEMA 4 (Outdoor Rated) |
| Cooling | Natural Convection |
| Dimensions (H × W × D) | 17.7 × 14.6 × 6.8 in |
| Weight | 25.3 lb |
| Warranty | 12 Years (extendable to 20/25 Years) |
Certifications
- UL 1741 SA Certified
- IEEE 1547 Compliant
- NEC 2017 Rapid Shutdown Compliant
- NEMA 4 Enclosure Rated
