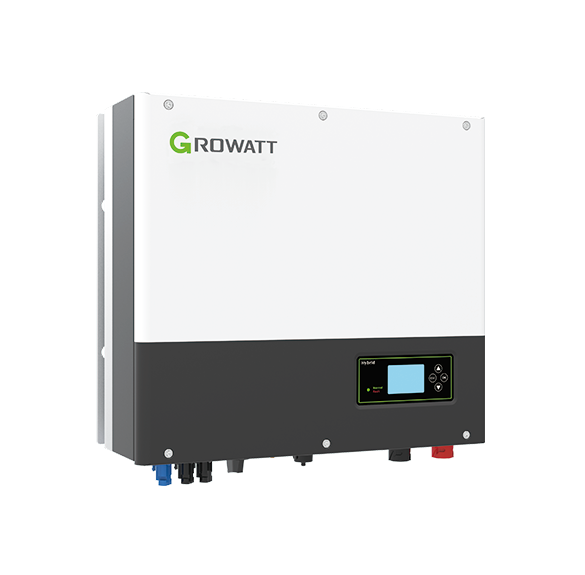

Growatt SPH 10000TL3 BH-UP — 10kW Three-Phase Hybrid Inverter | HV Battery Ready
The Growatt SPH 10000TL3 BH-UP is a high-performance three-phase hybrid inverter delivering 10,000W of rated AC output. Designed for residential and commercial solar-plus-storage systems, it features dual MPP trackers with a DC/AC ratio of up to 1.5, a built-in UPS function with 10ms transition, and supports both lithium and lead-acid batteries. With a maximum efficiency of 98.2% and IP65 outdoor-rated enclosure, the SPH series delivers exceptional energy yields in any environment.
Key Benefits
- Dual MPP Trackers — Maximize energy harvest across multiple roof orientations and shading conditions with independent MPPT tracking
- UPS Function — 10ms Transition — Seamless backup power switchover in just 10 milliseconds when the grid goes down
- 100% Three-Phase Imbalance Output — Supports unbalanced loads across all three phases for maximum flexibility
- Max Efficiency 98.2% — Industry-leading conversion efficiency minimizes energy losses
- Supports Lithium & Lead-Acid — Compatible with high-voltage lithium battery systems and traditional lead-acid banks
- IP65 Rated — Outdoor-ready enclosure protects against dust and water jets for flexible installation
- Smart Load Control — Dry contact output for intelligent load management and VPP interface ready
Specifications
| Specification | Detail |
|---|---|
| Rated Power | 10,000W (10kW) |
| Phase | Three-phase 380/400Vac |
| Max Efficiency | 98.2% |
| MPPT Trackers | 2 (Dual) |
| DC/AC Ratio | Up to 1.5 |
| Battery Type | Lithium & Lead-Acid (HV) |
| UPS Transition | 10ms |
| Enclosure Rating | IP65 |
| Protection | Type II SPD on DC and AC side |
| Communication | ShineWiFi-X, ShineLink-X, Shine4G-X, ShineMaster |
| Warranty | Standard manufacturer warranty |
What's in the Box
- Growatt SPH 10000TL3 BH-UP Hybrid Inverter
- Wall-mounting bracket
- Quick start guide
- User manual
| SKU | GRO-SPH10000TL3BHUP |
|---|---|
| Manufacturer | Growatt |
