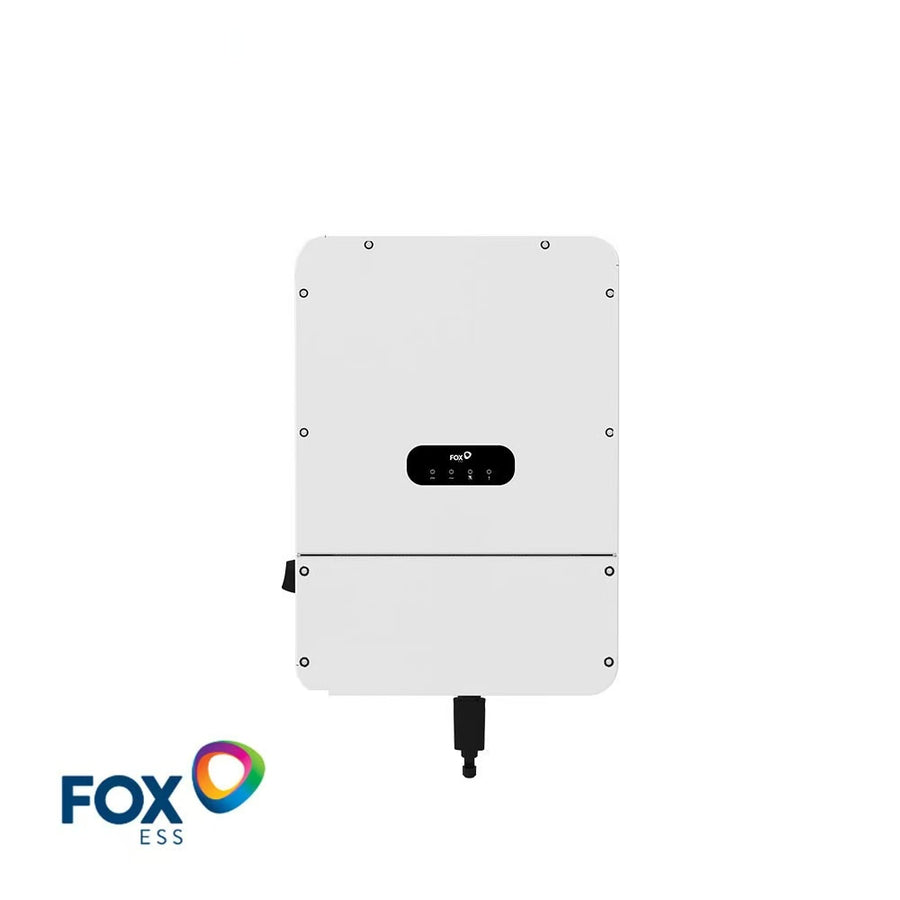

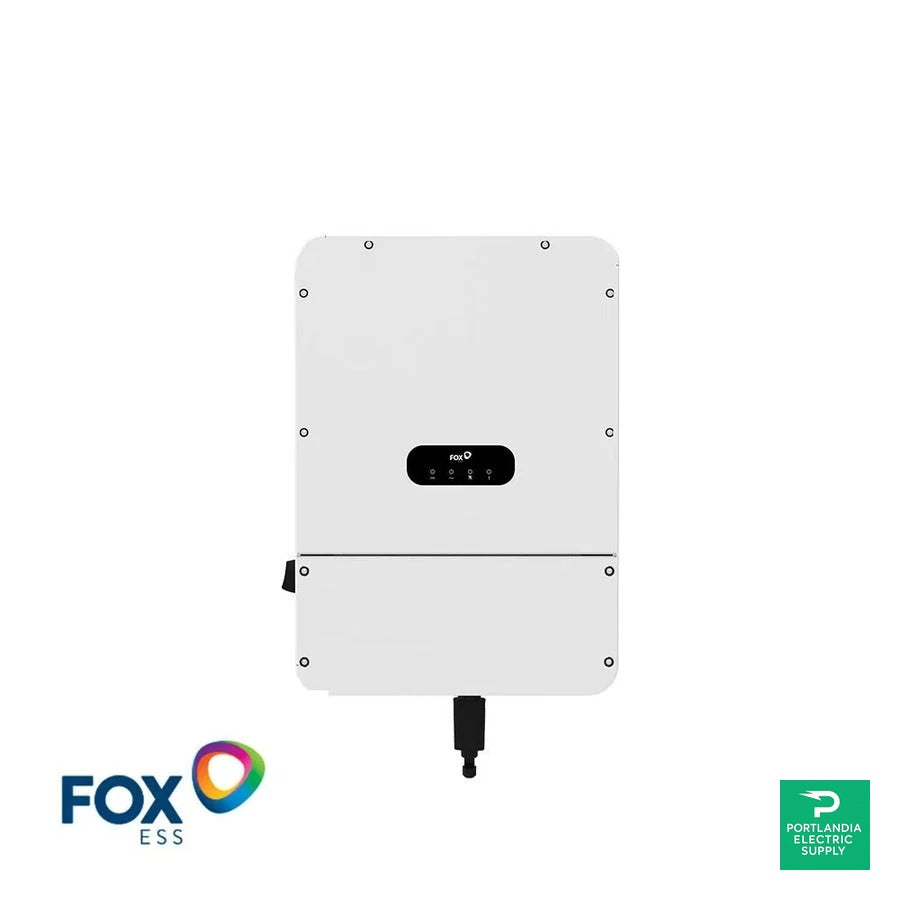

FoxESS 7.6kW Hybrid Inverter 2 MPPT, WIFI Included - H1-7.6-US ( 30-148-7623F-00 )

FoxESS H1-7.6-US hybrid inverter — 7.6 kW split-phase (120/240 V)

The FoxESS 7.6kW Hybrid Inverter - H1-7.6-US is a high-performance, future-ready energy solution designed for modern residential and light commercial solar systems. Built to seamlessly integrate solar generation, battery storage, and grid power, this inverter ensures maximum efficiency, energy independence, and long-term reliability. With advanced hybrid technology and intelligent energy management, it empowers users to take full control of their power consumption while reducing electricity costs.

Engineered with cutting-edge features, the FoxESS 7.6kW Hybrid Inverter 2 MPPT, WIFI Included - H1-7.6-US ( 30-148-7623F-00 ) delivers optimal solar harvesting, smart monitoring, and flexible system expansion. Whether you are installing a new solar system or upgrading an existing one, this inverter offers the performance and scalability required for today’s evolving energy demands.

Key features

FoxESS H1-7.6-US hybrid inverter 2 MPPTs (max PV 15.2 kW), Wi-Fi/LAN monitoring, CAN/RS485 BMS comms, aur natural-convection cooling provide karta hai—residential whole-home backup ya self-consumption projects ke liye ideal. ^[datasheet]

• 7.6 kW rated output @ 120/240 V; rated current 31.7 A; power factor >0.99
• PV: 2 MPPT · 600 V max · MPPT 80–550 V (full-load 271–500 V) · 28/14 A per MPPT (I_sc 44/22 A)
• Battery: LFP, 85–460 V bus, 50 A charge/discharge; CAN 2.0 BMS interface
• Backup: 7.6 kW rated · max apparent 11.4 kVA · 13.64 kVA (10 min) · 15.38 kVA (60 s)
• Enclosure: Type 4X (IP66), fan-less, <35 dB; −13 to 140 °F operating range

Specifications

High-Efficiency Performance with Advanced Hybrid Technology

The FoxESS 7.6kW Hybrid Inverter - H1-7.6-US is designed to deliver superior energy conversion efficiency, ensuring you get the most out of your solar panels. Its hybrid capability allows it to intelligently manage power from solar, batteries, and the grid in real time. This means your home or business can continue operating smoothly even during grid outages or peak demand periods.

By prioritizing solar energy usage and optimizing battery charging cycles, the inverter reduces dependency on utility power. This results in lower energy bills, improved sustainability, and enhanced energy security throughout the year.

Dual MPPT Design for Maximum Solar Yield

One of the standout features of the FoxESS 7.6kW Hybrid Inverter - H1-7.6-US is its 2 MPPT (Maximum Power Point Tracking) configuration. Dual MPPT inputs allow the inverter to manage two independent solar strings, making it ideal for installations with different roof orientations or shading conditions.

This intelligent design ensures each solar array operates at its optimal performance level, maximizing energy generation even when sunlight conditions vary. The result is improved system efficiency, higher daily energy output, and better overall return on investment.

Built-In WiFi Monitoring for Smart Energy Management

With built-in WiFi connectivity, the FoxESS 7.6kW Hybrid Inverter - H1-7.6-US enables real-time monitoring and system control. Users can track solar production, battery status, energy consumption, and grid interaction from a user-friendly monitoring platform.

Remote monitoring allows quick fault detection and performance analysis, ensuring the system always operates at peak efficiency. Installers and system owners benefit from simplified maintenance, faster troubleshooting, and greater peace of mind.

Flexible Battery Compatibility and Future Expansion

The FoxESS 7.6kW Hybrid Inverter - H1-7.6-US is fully compatible with high-voltage battery storage systems, allowing users to store excess solar energy for nighttime use or backup power. Its modular design supports easy system expansion, making it an excellent long-term investment.

As energy needs grow, additional batteries or solar capacity can be added without replacing the inverter. This flexibility makes it suitable for homeowners planning future upgrades or businesses looking to scale their energy infrastructure.

Reliable Safety Features and Durable Construction

Safety and reliability are core strengths of the FoxESS 7.6kW Hybrid Inverter - H1-7.6-US. It includes advanced protection mechanisms such as over-voltage, short-circuit, anti-islanding, and thermal protection to safeguard both the system and connected equipment.

Its robust build quality ensures stable performance in varying environmental conditions, while efficient heat dissipation enhances longevity. Designed to meet strict electrical and grid compliance standards, this inverter provides dependable operation for years to come.

Ideal Applications for Residential and Light Commercial Use

The FoxESS 7.6kW Hybrid Inverter - H1-7.6-US is perfectly suited for residential homes, small offices, and light commercial properties. It supports energy independence, backup power solutions, and optimized solar utilization in a compact and efficient form factor.

Whether your goal is to reduce electricity costs, ensure uninterrupted power, or move toward sustainable energy solutions, this inverter offers the performance and intelligence required to meet those objectives.
