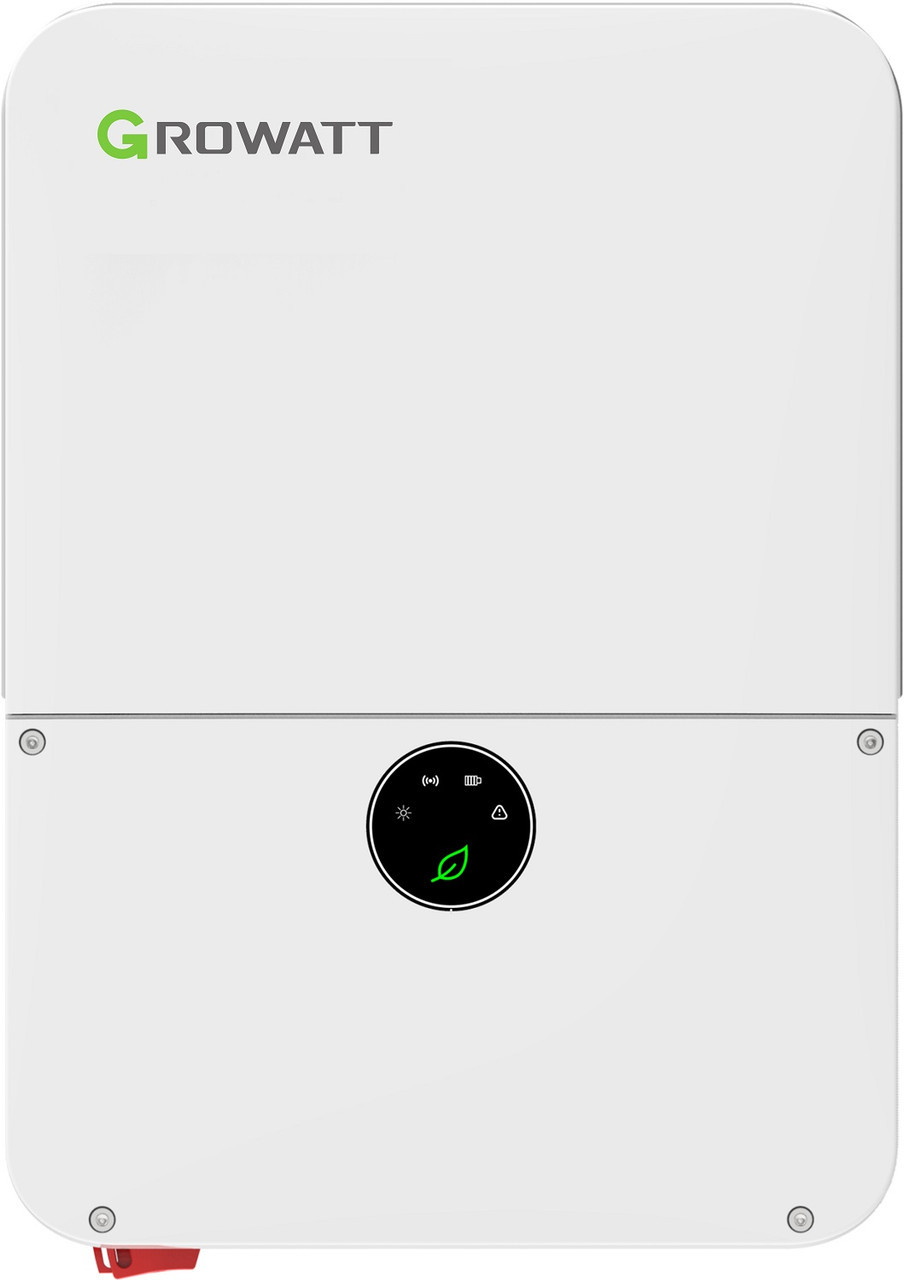

• Growatt MIN 11400TL-XH-US 11.4kW hybrid inverter — front view
1 1

Growatt MIN 11400TL-XH-US 11.4kW Hybrid Inverter

Growatt MIN 11400TL-XH-US 11.4kW Hybrid Inverter

In Stock
Brand: Growatt
$1,706.00 USD
$1,875.00 USD $1,706.00 USD
-9% Sale Sold out
Shipping calculated at checkout.

PayPal Pay in 4 interest-free payments of $426.50 on qualifying orders, or monthly financing with PayPal Pay Later.

Available at checkout for eligible US buyers. Subject to approval.

In stock at our Louisville, KY warehouse — 5–10 business days
Orders ship via freight or ground from Louisville, KY. Tracking provided once your order ships.

Ships via ground carrier, tracked. Pallet & heavy orders go LTL freight — our team confirms freight within 1 business day.

In Stock
Multi-unit or project order?Get a Volume Quote →
Offloading overstock or decommissioned gear? We buy surplus equipment →

Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you

OEM Authorized Full Warranty 5–10 business days

Complete the job

Verified compatible gear for this system

Growatt ALP 5.0L-E2-US 5kWh LV LFP Battery Module (48V)
Compatible Growatt ALP 5.0L-E2-US 5kWh LV LFP Battery Module (48V)
$1,477.00
Growatt ALP 5.0L Battery Base – Floor Stand for ALP LV Battery Stacks
Compatible Growatt ALP 5.0L Battery Base – Floor Stand for ALP LV Battery Stacks
$124.00
Growatt SM-US Smart Meter with 2 CTs (200A) – for MIN/SPH/SPF ESS Management
Compatible Growatt SM-US Smart Meter with 2 CTs (200A) – for MIN/SPH/SPF ESS Management
$194.00
Growatt ATS 11400T-US 50A Automatic Transfer Switch (Partial Home Backup)
Compatible Growatt ATS 11400T-US 50A Automatic Transfer Switch (Partial Home Backup)
$636.00
Growatt SYN 200-XH-US-13A Whole Home Backup ATS – 200A Breaker + Smart Meter + Generator Port
Compatible Growatt SYN 200-XH-US-13A Whole Home Backup ATS – 200A Breaker + Smart Meter + Generator Port
$1,683.00
Growatt ALP 5.0L Battery Cables (Battery Bank to Inverter)
Compatible Growatt ALP 5.0L Battery Cables (Battery Bank to Inverter)
$48.00
Growatt

PES Supply is an authorized distributor for Growatt. 50,000+ SKUs from 169 authorized brands.

The Growatt MIN 11400TL-XH-US (V3) is the flagship 11.4kW residential storage inverter — four MPPTs, up to 22.8kW PV input, and whole-home backup with the SYN 200-XH-US transfer switch.

Key Features

  • Whole Home Backup (V3) with Growatt SYN 200-XH-US 200A ATS
  • 4 independent MPPTs; supports up to 22.8kW PV input (2.0 DC/AC)
  • Integrated Tigo RSD transmitter for Tigo TS4-F MLPEs
  • Integrated WiFi/LAN communication module
  • Battery-ready: Growatt ARO/APX & LG Prime/Enblock HV batteries; max efficiency 98.5%

Compatibility: SYN 200-XH-US ATS; Growatt ARO/APX & LG Prime/Enblock HV batteries; Tigo TS4-F MLPEs

Specifications

Model MIN 11400TL-XH-US (V3)
Part Number PV01.0105200
Rated AC Output 11,400 W
MPPTs 4
Max PV Input 22,800 W
Communication Integrated WiFi/LAN (WL)
Rapid Shutdown Integrated Tigo RSD transmitter (TRS-T)
Backup Whole Home Backup (V3) — requires SYN 200-XH-US
Dimensions (W×H×D) 15.8 × 25.2 × 7.4 in (400 × 638 × 187 mm)
Weight 45 lb (20.4 kg)
Enclosure IP65/NEMA 4X
Certifications UL1741SA/SB, IEEE1547, CA Rule 21, HECO, CEC listed, UL9540 (with ARO/APX)

Authorized Growatt distribution — full 10-year manufacturer warranty. Ships single units via ground freight from Growatt USA (Eastvale, CA) or our Louisville, KY warehouse.

ManufacturerGrowatt
Datasheet
Height7.4
Length15.8
Width25.2
Growatt MIN 11400TL-XH-US 11.4kW hybrid inverter — front view
Growatt MIN 11400TL-XH-US 11.4kW Hybrid Inverter $1,706.00

You May Also Need

Solis 11.4kW Hybrid Inverter with Tigo Transmitter S6-EH1P11.4K-H-US-RS

Solis 11.4kW Hybrid Inverter with Tigo Transmitter S6-EH1P11.4K-H-US-RS

$2,092.75
EG4 12000XP 12kW Off-Grid Inverter

EG4 12000XP 12kW Off-Grid Inverter

$1,899.99
Growatt MIN 10000TL-XH-US 10kW Hybrid Inverter

Growatt MIN 10000TL-XH-US 10kW Hybrid Inverter

$1,485.00
Growatt SPH 10000TL-HU-US(B) 10kW Split-Phase Hybrid Inverter with CTs (WiFi/LAN, Tigo RSD)

Growatt SPH 10000TL-HU-US(B) 10kW Split-Phase Hybrid Inverter with CTs (WiFi/LAN, Tigo RSD)

$2,851.00
Sol-Ark SA-12K-2P 12KW Inverter/Charger 120V/240V

Sol-Ark SA-12K-2P 12KW Inverter/Charger 120V/240V

$4,025.61
Sol-Ark 12KW EMP Hardened Inverter/Charger 120V/240V SA-12K-EMPKIT

Sol-Ark 12KW EMP Hardened Inverter/Charger 120V/240V SA-12K-EMPKIT

$6,796.00
Fronius Primo 11.4-1 Grid Tie Inverter, 11.4kW , 208,240 VAC

Fronius Primo 11.4-1 Grid Tie Inverter, 11.4kW , 208,240 VAC

$3,770.92
MidNite Solar MN15-12KW-AIO 11.4kW All-In-One Inverter System

MidNite Solar MN15-12KW-AIO 11.4kW All-In-One Inverter System

$5,137.12

Specifications

Datasheet
Model MIN 11400TL-XH-US (V3)
Part Number PV01.0105200
Rated AC Output 11,400 W
MPPTs 4
Max PV Input 22,800 W
Communication Integrated WiFi/LAN (WL)
Rapid Shutdown Integrated Tigo RSD transmitter (TRS-T)
Backup Whole Home Backup (V3) — requires SYN 200-XH-US
Dimensions (W×H×D) 15.8 × 25.2 × 7.4 in (400 × 638 × 187 mm)
Weight 45 lb (20.4 kg)
Enclosure IP65/NEMA 4X
Certifications UL1741SA/SB, IEEE1547, CA Rule 21, HECO, CEC listed, UL9540 (with ARO/APX)
Max. PV Input Power (STC) 22,800 W
MPPT Trackers 4
PV Strings per MPPT 2 per MPPT
MPPT Full-Load Voltage Range 220–500V
Battery Charge/Discharge Current 32.5 A
Battery Charge/Discharge Power 11,700 W
AC Output Power @208V 9,880 W
Max. AC Output Current 48 A
Backup (EPS) Output Power 11,400 W
Max. Backup Surge 18,000 VA
Max. Efficiency 98.5%
CEC Efficiency @240V 98.0%
CEC Efficiency @208V 97.5%
Max. DC System Voltage 600 V
Startup Voltage 80 V
Nominal DC Voltage 360 V
Max. Input Current per MPPT 13.5 A (16.9 A Isc)
Battery Voltage Range Growatt APX 380–550V / ARO 360–550V / LG 360–450V (nominal 400V)
Battery Chemistry LFP
AC Nominal Voltage 208/240V split-phase (183–229V / 211–264V range)
Grid Frequency 50/60 Hz (45–65 Hz)
Power Factor >0.99 (0.8 leading – 0.8 lagging)
THDi <3%
Operating Temperature −13°F to +140°F (−25 to +60°C), derating above 113°F
Max. Altitude 9,843 ft (3,000 m)
Cooling Natural convection
RSD Compliance UL1741 PVRSS / NEC 2020 690.12 (Tigo / APsmart / FUDA transmitter options)
Warranty 10 years (optional 15/20-year extension)
Revenue-Grade Meter ANSI C12.20 (0.5% accuracy)
Certifications<
