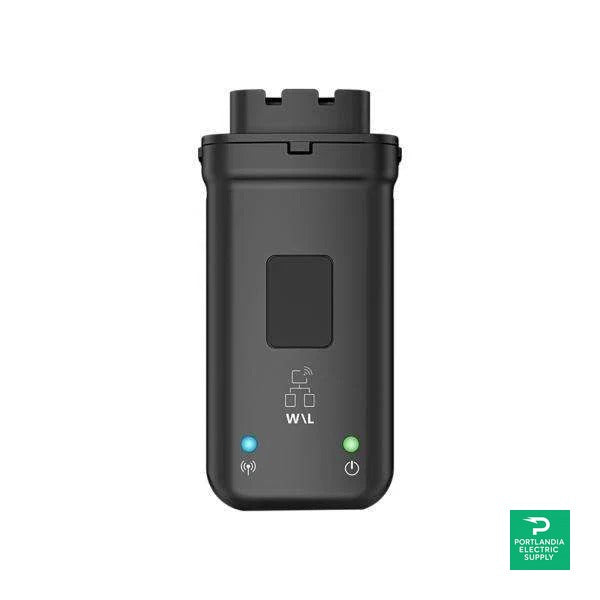

GoodWe Wi-Fi/LAN Kit 2.0 communication dongle
The GoodWe Wi-Fi/LAN Kit 2.0 is a compact, plug-and-play communication module that adds reliable Wi-Fi and Ethernet to GoodWe inverters. It supports encrypted data, breakpoint retransmission to prevent data loss, and quick configuration via Bluetooth—ideal for installers and fleet operators.
Key Features
Dual networking built in
Wi-Fi (802.11 b/g/n @2.4 GHz) and 10/100 Mbps LAN give flexible on-site or remote connectivity.
Fast setup & robust operation
USB plug-in design with Bluetooth V4.2 local config and GoodWe Wi-Fi/LAN Kit 2.0 breakpoint retransmission for stable logging.
Outdoor-ready
IP65 enclosure and -30~+60 °C operating range for harsh environments.
Specifications
| Model | WiFi/LAN Kit-20 |
|---|---|
| Max. number of connected devices | 1 |
| Input voltage | 5 V |
| Power consumption | ≤ 3 W |
| Connection interface | USB |
| Ethernet interface | 10M / 100 Mbps self-adaption |
| WLAN | IEEE 802.11 b/g/n @ 2.4 GHz |
| WLAN max. transmit power | < 20 dBm |
| WLAN bandwidth | 20 / 40 MHz |
| Wi-Fi operating mode | STA |
| Bluetooth | V4.2 |
| Dimensions (W × H × D) | 48.3 × 159.5 × 32.1 mm (1.90 × 6.28 × 1.26 in) |
| Weight | 82 g (0.18 lb) |
| Indicator | LED × 2 |
| Installation | Plug and Play |
| Operating temperature range | -30 ~ +60 °C |
| Storage temperature range | -40 ~ +70 °C |
| Relative humidity | 0 – 95% |
| Ingress protection rating | IP65 |
| Max. operating altitude | 4000 m |
Compatible GoodWe inverter/IoT lists and downloads available via the official product page.
| SKU | PES-PA-ELC-1979 |
|---|---|
| MPN | GA10081-68-00P |
| Manufacturer | Goodwe |
| Container price | |
| Container qty | |
| Height | |
| Length | |
| Pallet price | |
| Unit price | |
| Width | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
