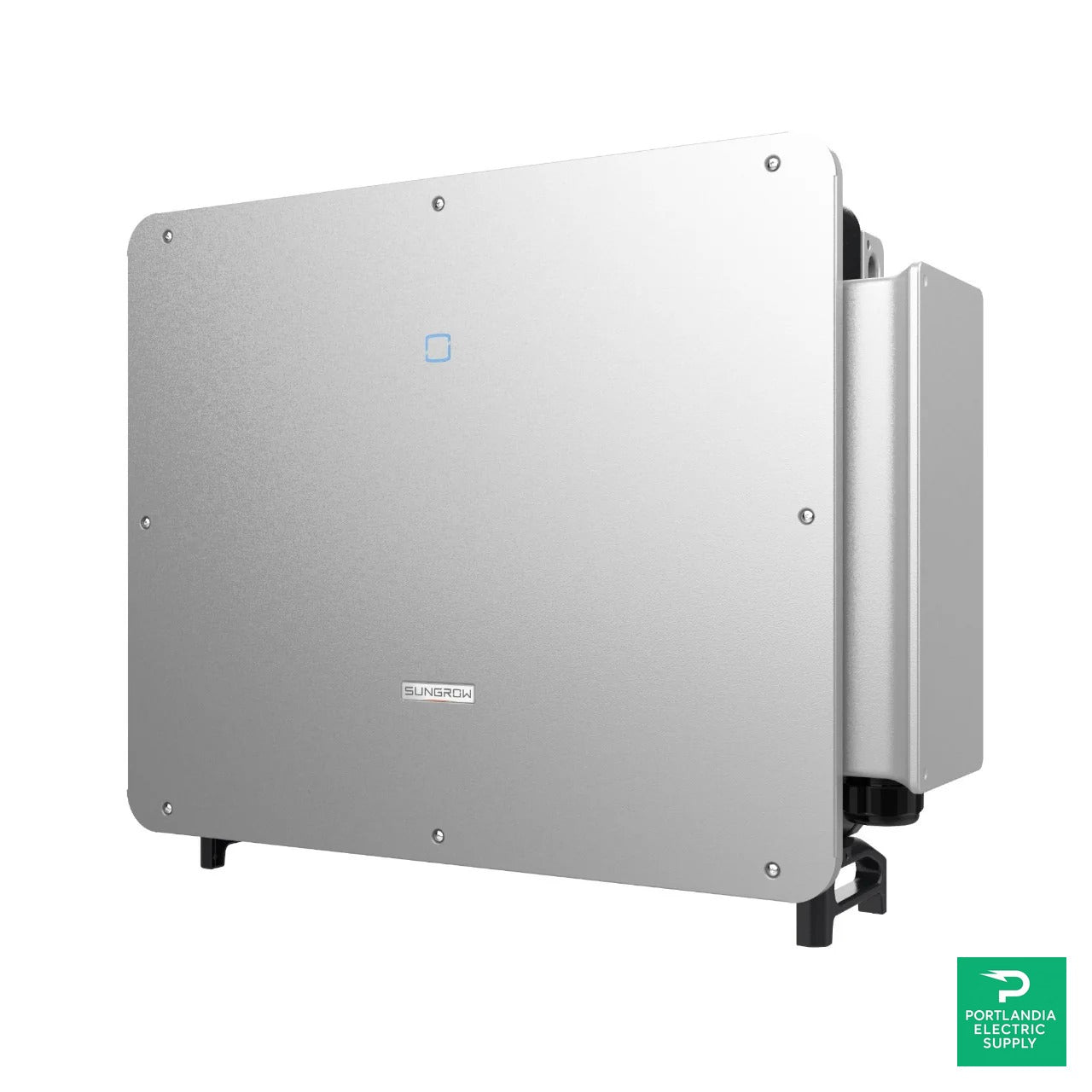

Sungrow 200 KVA 1500VDC 800VAC 12 MPPT 3 Phase PV String Inverter - SG200HX-US
The Sungrow 200 KVA 1500VDC 800VAC 12 MPPT 3 Phase PV String Inverter - SG200HX-US delivers high-performance energy conversion for utility-scale and large commercial solar projects. It offers exceptional efficiency, advanced protection features, and smooth grid integration. Built to endure demanding energy environments, this inverter ensures steady and optimized solar power output. This makes it a favorite choice in modern PV infrastructure.
Note: Per Sungrow’s datasheet, SG200HX-US is a 200 kVA, 600 Vac model (AC voltage range 528–660 V). Specs below reflect the official datasheet.
| Input (DC) | |
|---|---|
| Max. PV input voltage | 1500 V |
| Min. / Startup input voltage | 500 V / 550 V |
| Nominal PV input voltage | 1000 V |
| MPP voltage range | 500–1500 V |
| Full power MPP range @ 40 °C | 850–1300 V * |
| No. of independent MPPTs | 12 |
| Strings per MPPT | 2 |
| Max. PV input current | 40 A per MPPT (total 12×40 A) |
| Max. DC short-circuit current per MPPT | 60 A |
| Output (AC) | |
| AC output power | 200 kVA @ 40 °C |
| Max. AC output current | 193 A |
| Nominal AC voltage | 3/PE, 600 V |
| AC voltage range | 528–660 V |
| Nominal grid frequency / range | 60 Hz / 55–65 Hz |
| THD | < 3% (at nominal power) |
| DC current injection | < 0.5% In |
| Power factor (nominal / adjustable) | > 0.99 / 0.8 leading – 0.8 lagging |
| Feed-in phases / Connection phases | 3 / 3 |
| Efficiency | |
| Max. efficiency / CEC efficiency | 98.8% / 98.5% |
| Protection & Safety | |
| DC reverse connection / AC short circuit / Leakage current / Grid monitoring / Ground fault | Yes / Yes / Yes / Yes / Yes |
| DC switch / AC switch | Yes / No |
| PV string current monitoring / Q at night | Yes / Yes |
| Anti-PID & PID recovery | Optional (MVS3200-US / MVS4480-US) |
| Surge protection | DC Type II / AC Type II |
| General Data | |
| Dimensions (W×H×D) | 1165 × 870 × 361 mm (45.9 × 34.3 × 14.2 in) |
| Weight | ≤122 kg (≤269 lb) |
| Isolation / Enclosure | Transformerless / IP66 (NEMA 4X) |
| Night power consumption | < 6 W |
| Operating ambient temperature | −30 to 60 °C (−22 to 140 °F) |
| Relative humidity | 0%–100% |
| Cooling | Smart forced air cooling |
| Max. operating altitude | 4000 m (>3000 m derating) / 13,123 ft (>9843 ft derating) |
| Display / Communication | LED, Bluetooth+APP / RS485, SunSpec, Modbus |
| DC / AC connections | MC4 (Max. #10 AWG, optional #8) / OT/DT terminal (Max. 750 kcmil) |
| Compliance | UL 1741, UL 62109-1, CSA C22.2 No.107.1-16, IEEE 1547-2018, IEEE 1547.1-2020, UL 1741 SA/SB, California Rule 21, FCC Part 15 Class A |
| Grid support functions | Q at night, LVRT/HVRT, active & reactive power control, power ramp rate, Q-U control, P-f control |
* Full-power MPP range depends on temperature; see datasheet curve.
High Efficiency and Optimized Power Generation
The unit is designed to maximize energy harvest even in variable weather or partial shading. With 12 independent MPPTs, it operates each string at ideal capacity. This reduces mismatch losses and improves yield. Its advanced MPPT tech reacts quickly to environmental changes, maintaining high energy output.
Durable Construction for Demanding Conditions
Engineered for long-term durability, this inverter handles tough outdoor conditions. It resists high temperatures, dust, and moisture effectively. With intelligent thermal design, heat dissipates efficiently. That allows continuous operation under extreme temperatures without performance loss or damage.
Sungrow 200 KVA 1500VDC 800VAC 12 MPPT 3 Phase PV String Inverter - SG200HX-US Smart Monitoring and Intelligent Operation
This model has a built-in smart monitoring system for easy tracking. Operators can detect faults and make decisions based on real-time data. Remote monitoring makes maintenance simpler and cheaper. Diagnostics work to prevent downtime, ensuring consistent power generation throughout its lifecycle.
Enhanced Safety Features
Safety is key in large-scale solar projects. This inverter offers arc-fault detection, ground fault monitoring, and rapid shutdown. Automatic fault isolation lowers risks but maintains function. Such safeguards assure users of reliable operation during all project phases.
Grid Support and Compliance
The inverter complies with advanced grid support standards. It provides dynamic grid control, reactive power compensation, and low-voltage ride through capability. These features promote grid stability and improve energy delivery. Whether in utility or commercial fields, it fits modern grid infrastructure.
Flexible Design and Easy Installation
Compact and modular, it simplifies installation workflows. Lightweight and pre-wired options enable quick setup, saving project time. Its wide voltage support and flexible mounting suit many scenarios. Installers benefit from less labor, lower cabling, and easier commissioning.
Sustainable and Cost-Efficient Performance
By delivering high efficiency and reliability, this inverter helps projects speed ROI and lower operating costs. Its strong performance enhances sustainability by optimizing solar use. Intelligent engineering minimizes energy loss, making it cost-effective and eco-friendly.
Why Choose the Sungrow 200 KVA 1500VDC 800VAC 12 MPPT 3 Phase PV String Inverter - SG200HX-US for Large-Scale Solar Projects
Reliability, efficiency, and flexibility matter in demanding PV environments. This inverter has all these qualities. From monitoring to thermal stability and grid support, it boosts solar system output. It empowers developers, utilities, and businesses to meet long-term energy goals with optimized power conversion.
Specifications & Documents: Full specifications & datasheet for Sungrow 200 KVA 1500VDC 800VAC 12 MPPT 3 Phase PV String Inverter - SG200HX-US
| SKU | PES-SPS-SIV-0722 |
|---|---|
| MPN | SG200HX-US |
| Manufacturer | Sungrow |
| Container price | |
| Container qty | |
| Documents | |
| Height | |
| Isfollow | |
| Isindex | |
| Length | |
| Pallet price | |
| Unit price | |
| Width | |
| Inverter type | |
| Manufacturer | |
| Model number | |
| Voltage |
No documents available for this product. Contact us to request documentation.
