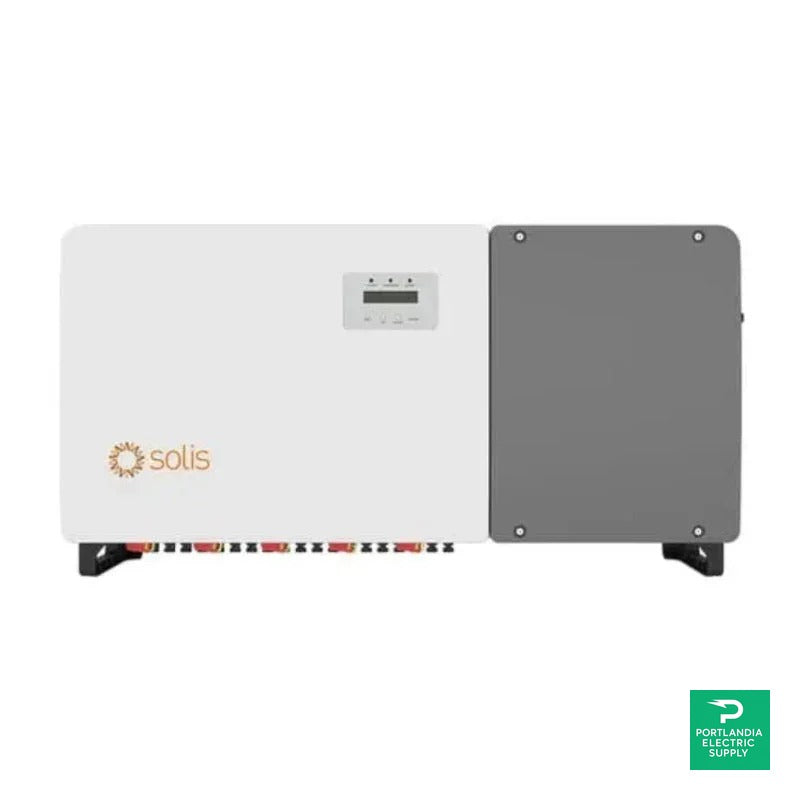

Solis 75kW Three Phase String Inverter - S5-GC75K-US-APST
The Solis S5-GC75K-US-APST Three Phase String Inverter offers advanced solar PV solutions for commercial and industrial sectors. Designed to optimize efficiency, this inverter supports a robust performance with a maximum efficiency of 98.8%. Equipped with cutting-edge features such as multiple MPPTs and high-quality componentry, it ensures a seamless energy conversion process, maximizing energy yield and system reliability.
Product Features
Advanced Efficiency
Featuring a peak efficiency of 98.8% and CEC efficiency of 98.3%, the Solis S5-GC75K-US-APST is engineered to deliver exceptional energy conversion for superior system output.
Robust Protection Systems
This inverter is equipped with comprehensive protection mechanisms including DC reverse-polarity protection, surge protection, and integrated AFCI, enhancing safety and system security.
Versatile Connectivity Options
Enjoy reliable communication with options for RS485, Ethernet, and optional Wi-Fi or Cellular connections, ensuring seamless integration into various network setups.
Smart Monitoring Capabilities
Benefit from intelligent string monitoring and smart I-V curve scanning, allowing in-depth performance tracking and rapid diagnostics to minimize downtime.
Durable Design and Safety Compliance
Built to withstand rigorous conditions, it's UL1741SB and UL1998 compliant, ensuring safety and adherence to industrial standards with its durable Type 4X enclosure.
How It Works
The Solis S5-GC75K-US-APST utilizes intelligent fan-cooling and supports a wide MPPT voltage range, ensuring optimized performance in varying environmental conditions. It operates with transformerless topology for increased energy efficiency.
MPPT Integration
Leveraging up to 10 MPPTs, the inverter ensures maximum energy harvest by precisely aligning module and system efficiencies throughout its operation.
Intelligent Redundant Cooling
The inverter's cooling system intelligently manages thermal performance, ensuring consistent operation even under the most challenging conditions.
PID Recovery System
The integrated PID recovery feature works to maintain optimal module performance, extending the longevity and efficiency of your solar installation.
Specifications
| Model Variants | 75K, 80K, 90K, 100K |
| Max. Input Voltage | 1000 V |
| Rated Voltage | 600 V |
| Start-up Voltage | 195 V |
| Max. Input Current | 8*32 A, 9*32 A, 10*32 A |
| Rated Output Power | 75 kW, 80 kW, 90 kW, 100 kW |
| Max. Efficiency | 98.7%, 98.8% |
| Operating Temperature Range | -22F to 140F (-30C to +60C) |
| Ingress Protection | TYPE 4X |
| Communication | RS485, Ethernet, Optional Wi-Fi, Cellular |
| SKU | PES-SPS-SIV-0313 |
|---|---|
| MPN | S5-GC75K-US-APST |
| Manufacturer | Solis |
| Brands | |
| Container price | |
| Container qty | |
| Documents | |
| Height | |
| Isfollow | |
| Isindex | |
| Length | |
| Pallet price | |
| Phase | |
| Shop by inverter type | |
| Special sections quote cta | |
| Unit price | |
| Width | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
