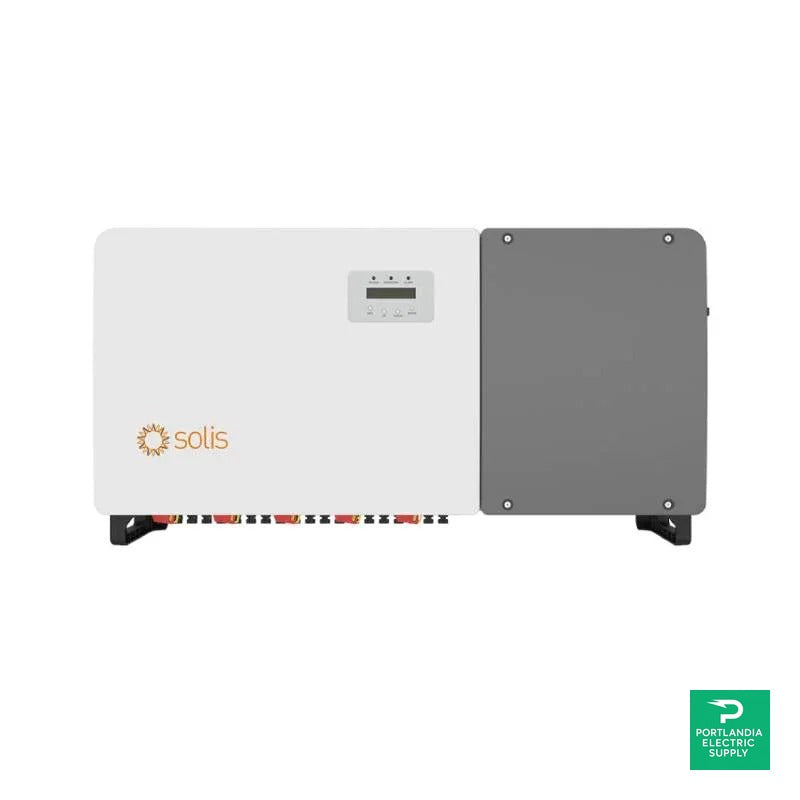

Solis 80KW 3-Phase Inverter with 9-MPPT and APS Transmitter
The Solis 80KW 3-Phase Inverter, featuring model 80K-5G-US-APST, is an advanced power solution designed to optimize your solar energy system. With cutting-edge technology including a high-efficiency rate of up to 98.8% and integrated AFCI for fire safety, this inverter ensures robust performance and reliability. Embrace a sustainable future with seamless energy conversion, engineered for efficiency and compliance with modern standards.
Product Features
High-Efficiency Conversion
The Solis 80K-5G-US-APST boasts a remarkable efficiency of 98.8%, ensuring maximum power generation from your solar panels, hence maximizing your energy savings.
Advanced Safety Measures
Equipped with integrated AFCI protection, this inverter ensures proactive reduction of fire risks, enhancing safety for residential or commercial systems.
Multiple MPPT Channels
With 9 MPPT channels, the inverter optimizes power tracking, providing flexibility and efficiency in diverse conditions, targeted for various types of installations.
Global Compliance
Certified to meet UL 1741 SA and CA Rule 21, the Solis 80K-5G-US-APST aligns with international quality and safety standards, ensuring dependable performance worldwide.
Comprehensive Monitoring Solutions
Intelligent string monitoring and smart I-V curve scanning provide insight and control over energy production, enabling efficient system management and maintenance.
How It Works
This inverter effectively transforms DC electricity from solar panels into AC electricity for use in homes and businesses. Featuring an intelligent fan-cooling system, it maintains optimal temperatures even during peak usage, ensuring both performance and longevity.
Efficient DC to AC Conversion
The core function involves converting DC from solar arrays into usable AC power with high efficiency and minimal loss, facilitated by its transformerless design.
String Monitoring Technology
Continuous monitoring of each string allows for early detection of performance issues, optimizing output and facilitating timely maintenance interventions.
Integrated Communication Systems
Equipped with RS485, Ethernet, and optional Wi-Fi or Cellular connectivity, users have multiple avenues for remote monitoring and control.
Specifications
| Model Name | Solis-80K-5G-US |
| Input Voltage Range | 180-1000 V |
| Max. Efficiency | 98.8% |
| Rated Output Power | 80 kW |
| MPPT Number | 9 |
| AC Output Connection | OT Terminal (max. 350MCM) |
| Operating Temperature Range | -22F to 140F (-30C to 60C) |
| Ingress Protection Rating | TYPE 4X |
| Compliance | UL 1741, IEEE 1547, California Rule 21 |
| Communication Interfaces | RS485, Ethernet, Optional: Wi-Fi, Cellular |
| SKU | PES-SPS-SIV-0097 |
|---|---|
| MPN | 80K-5G-US-APST |
| Manufacturer | Solis |
| Brands | |
| Compliance special features | |
| Container price | |
| Container qty | |
| Documents | |
| Height | |
| Isfollow | |
| Isindex | |
| Length | |
| Pallet price | |
| Special sections quote cta | |
| Unit price | |
| Width | |
| Inverter type | |
| Manufacturer | |
| Warranty (years) | 10 |
No documents available for this product. Contact us to request documentation.
