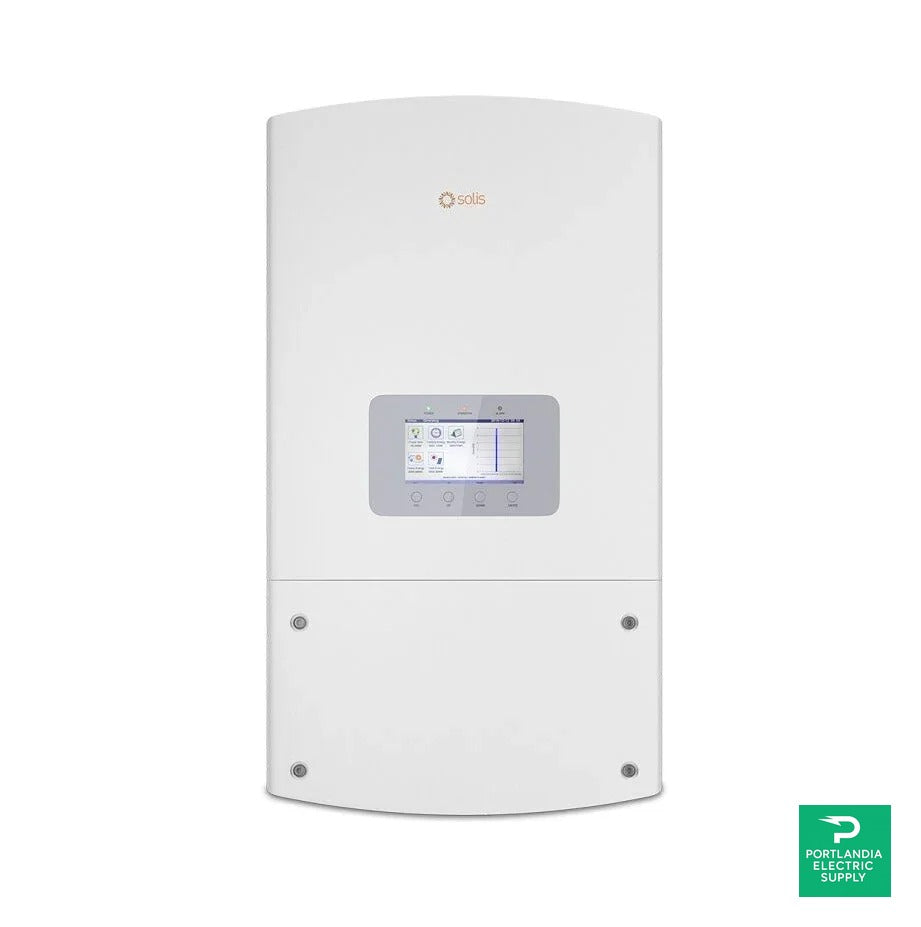

Efficient Solis 40kW 3-Phase Inverter with 480VAC Output
The Solis 40K-US-SW inverter offers unparalleled efficiency and a robust design tailored for commercial and industrial applications. Featuring 98.6% maximum efficiency, this inverter is engineered to meet high power demands with its transformerless configuration, ensuring optimal performance. Ideal for utility-scale installations, it stands out with its rapid MPPT response times, ensuring efficient energy conversion even under diverse conditions.
Product Features
High Efficiency Ratings
Maximize energy utilization with the Solis 40K-US-SW, boasting a remarkable 98.6% efficiency. This feature optimizes power output, ensuring minimal energy wastage.
Durable Construction
Designed for resilience, the inverter is encased in a corrosion-resistant NEMA 4X enclosure, safeguarding it against harsh environmental conditions, making it suitable for outdoor and challenging settings.
Advanced MPPT Technology
Equipped with an industry-leading 4 MPPT design, the inverter offers fast response times of less than 5 seconds, enhancing energy harvesting from solar panels and improving overall system efficiency.
Integrated Safety Features
The Solis 40K-US-SW incorporates advanced safety measures, including AFCI protection and integrated DC switches, to proactively minimize fire risks and ensure safe operation.
User-Friendly Interface
Benefit from easy monitoring with a 7€ LCD color display, along with RS-485 Modbus communication protocol, offering seamless integration with existing network systems and optional Wi-Fi interface for remote access.
How It Works
The Solis 40K-US-SW inverter operates by converting DC power generated by solar panels into AC power suitable for commercial and utility consumption. Its multi-point power tracking optimizes voltage and current levels, ensuring optimal energy transfer with minimal losses.
Innovative MPPT Technology
The advanced MPPT technology ensures each string operates at peak efficiency, dynamically adjusting to changing light conditions to maximize power output throughout the day.
Robust Safety Systems
Safety is paramount with integrated features such as ground fault monitoring and anti-islanding protection, ensuring reliable and secure operation in various environments.
Seamless Integration
The inverter€™s communication capabilities allow for seamless integration with existing systems, providing data insights through web-based monitoring platforms.
Specifications
| Model Name | Solis-40K-US-SW |
| Max. Input Voltage | 1000 V |
| Rated Voltage | 700 V |
| Start-up Voltage | 350 V |
| MPPT Voltage Range | 200 - 800 V |
| Rated Output Power | 40 kW |
| Max. Apparent Output Power | 40 kVA |
| Power Factor | >0.99 (0.8 leading - 0.8 lagging) |
| Max. Efficiency | 98.6% |
| CEC Efficiency | 98.3% |
| Ingress Protection | TYPE 4X |
| Cooling Concept | Natural convection |
| Compliance | UL 1741, IEEE 1547, UL 1998 & others |
| SKU | PES-SPS-SIV-0158 |
|---|---|
| MPN | 40K-US-SW |
| Manufacturer | Solis |
| Brands | |
| Container price | |
| Container qty | |
| Documents | |
| Height | |
| Isfollow | |
| Isindex | |
| Length | |
| Pallet price | |
| Special sections quote cta | |
| Unit price | |
| Width | |
| Inverter type | |
| Manufacturer | |
| Model number | |
| Voltage | |
| Warranty (years) | 10 |
