SolarEdge 3.8kW Single Phase Energy Hub with RGM, Consumption Monitoring & 5-Year Cellular Plan – SE3800H-USMNBBL14

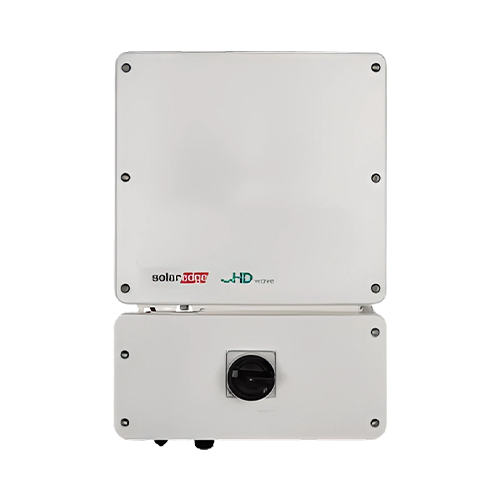

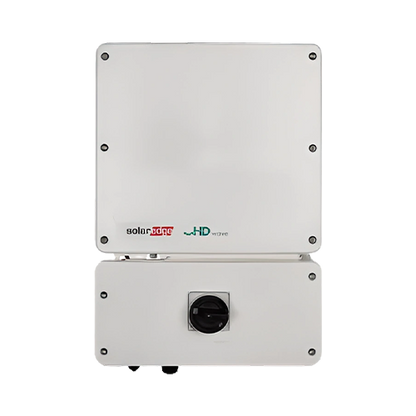

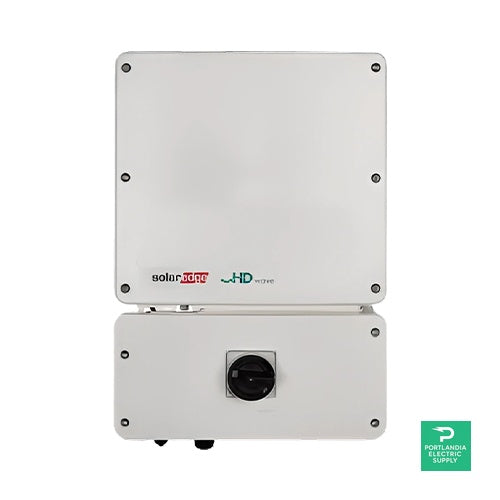

The SolarEdge SE3800H-USMNBBL14 is a high-efficiency 3.8kW single-phase Energy Hub inverter designed for residential solar and storage systems. It integrates revenue-grade metering (RGM), real-time consumption monitoring, and a 5-year cellular plan for remote communication—all within one streamlined platform.
Product Features
High Efficiency & HD-Wave Technology
Utilises SolarEdge HD-Wave inverter technology for record-breaking 99% weighted efficiency, ensuring superior energy conversion and system performance.
Integrated Revenue-Grade Meter (RGM)
Comes with a built-in ANSI C12.20 Class 0.5 accuracy RGM, enabling precise energy measurement for net metering and utility compliance.
Advanced Consumption Monitoring
Provides detailed visibility into both solar production and household energy usage with integrated consumption monitoring, accessible through the SolarEdge monitoring platform.
Battery-Ready Hybrid Design
Compatible with the SolarEdge Home Battery and the Backup Interface (BI-EUSGN-01) for seamless DC-coupled energy storage and backup functionality.
Built-in 5-Year Cellular Connectivity
Includes an integrated cellular modem with a 5-year plan for remote system communication, reducing the need for external networking hardware.
Flexible Smart Energy Integration
Works with SolarEdge smart home devices, EV chargers, and load controllers for a fully connected home energy ecosystem.
Applications
- Residential grid-tied and hybrid solar systems
- Battery-backed home energy storage
- Net metering and consumption monitoring
- Smart home and EV charging integration
Specifications
| Model | SE3800H-USMNBBL14 |
| Rated AC Power Output | 3.8 kW |
| Input Voltage Range (DC) | 380 – 480 V |
| Max Efficiency | 99.0% |
| Integrated Features | RGM, Consumption Monitoring, Cellular Modem (5-Year Plan) |
| Battery Compatibility | SolarEdge Home Battery (DC-Coupled) |
| Communication | Ethernet, RS485, Cellular |
| Enclosure Rating | NEMA 3R – Outdoor Rated |
| Operating Temperature | –13°F to 140°F (–25°C to 60°C) |
| Certifications | UL 1741 SA, UL 1699B, IEEE 1547, NEC 2020 Compliant |
| Warranty | 12 Years (Standard), Extendable to 20–25 Years |
| Manufacturer | SolarEdge Technologies |
Specifications verified from official SolarEdge Datasheet.
| SKU | PES-SPS-SIV-0809 |
|---|---|
| MPN | SE3800H-USMNBBL14 |
| Manufacturer | SolarEdge |
