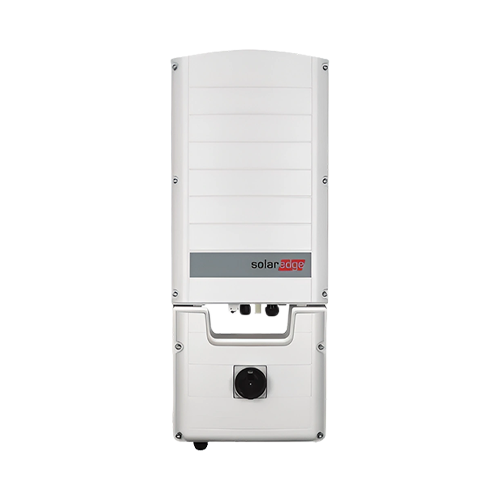

SolarEdge SE-30K-USR8IBNZ4 30 kW Three-Phase Inverter — Commercial-Grade Performance and Reliability
The SolarEdge SE-30K-USR8IBNZ4 30 kW Three-Phase Inverter delivers exceptional efficiency and intelligent energy management for large commercial and industrial solar installations. Designed to operate with SolarEdge power optimisers, the SolarEdge SE-30K-USR8IBNZ4 30 kW Three-Phase Inverter ensures module-level optimisation, simplified system design, and superior safety. This advanced model supports both wye and delta configurations, making it suitable for complex grid environments. Built with robust outdoor protection and SetApp commissioning, the SolarEdge SE-30K-USR8IBNZ4 30 kW Three-Phase Inverter provides long-lasting reliability and high-efficiency solar power conversion.
Product Features
High-Efficiency Three-Phase Design
Engineered for balanced power distribution and efficiency up to 98 %, ensuring optimal yield in demanding commercial conditions.
Module-Level Power Optimisation
Works exclusively with SolarEdge optimisers to eliminate mismatch losses, improve energy harvest, and enable detailed performance monitoring.
Advanced Safety and Compliance
Includes integrated arc-fault detection, rapid shutdown compliance, and ground-fault protection as per NEC 2017 standards.
SetApp Commissioning
The SolarEdge SE-30K-USR8IBNZ4 30 kW Three-Phase Inverter is configured and monitored via the SolarEdge SetApp mobile interface — no display screen required.
Outdoor-Ready Construction
Rugged NEMA 3R / IP65 aluminium enclosure supports outdoor mounting and silent natural convection cooling for minimal maintenance.
How It Works
The SolarEdge SE-30K-USR8IBNZ4 30 kW Three-Phase Inverter receives optimised DC power from SolarEdge optimisers and converts it into grid-synchronised AC electricity. Real-time communication between optimisers and inverter ensures module-level MPPT, enhanced safety, and centralised monitoring via SolarEdge Cloud.
Specifications
| Model | SE-30K-USR8IBNZ4 |
| Rated AC Output Power | 30,000 W (30 kW) |
| AC Output Voltage | 208 V / 480 V AC Three Phase (Wye or Delta) |
| Maximum DC Input Voltage | 1000 V DC |
| Weighted Efficiency | 98 % |
| Power Optimiser Compatibility | All SolarEdge P-Series Optimisers |
| Cooling Method | Natural Convection |
| Enclosure Rating | NEMA 3R / IP65 (Outdoor) |
| Communication Interfaces | Ethernet / Wi-Fi / RS485 / Cellular (optional) |
| Operating Temperature Range | -13 °F to 140 °F (-25 °C to +60 °C) |
| Dimensions (L × W × H) | 26.6 × 14.5 × 10.6 in (676 × 370 × 270 mm) |
| Weight | ≈ 55 lb (25 kg) |
| Warranty | 12 Years (Standard) — Extendable to 20 or 25 Years |
| Manufacturer | SolarEdge Technologies |
Specifications verified from SolarEdge official datasheet (SE-30K-USR8IBNZ4, 2023 Edition) and commercial product listings.
