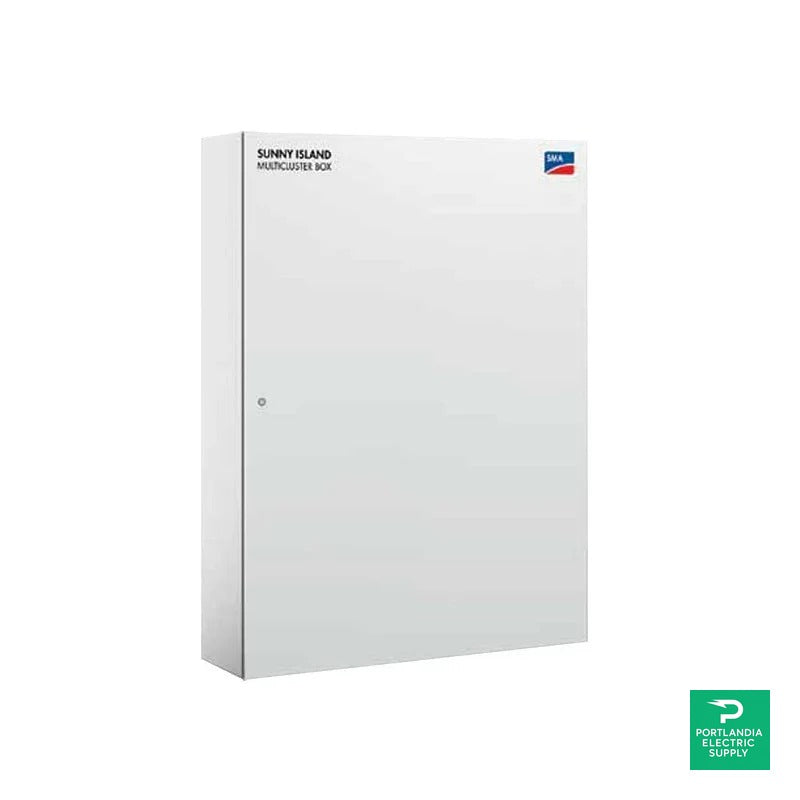

SMA Solar 3-phase Multicluster-Box for 120VAC/60Hz. connections for: 12 x Sunny Island - MCB-12U

SMA Solar 3-phase Multicluster-Box for Off-Grid Solutions

The SMA Solar MCB-12U Multicluster-Box offers a robust solution for simplifying the setup of off-grid systems. Targeted at efficiently integrating Sunny Island inverter setups, this box provides seamless connections and management for systems up to 100 kW. Its ease of installation and integration of essential components makes it a valuable asset to any solar power installation project.

Product Features

Integrated AC Distribution

This feature, central to the SMA Solar MCB-12U, provides reliable distribution for Sunny Island, generator, and PV systems, ensuring consistent power flow terms with the target keyword.

Load Shedding and Circuit Breakers

The MCB-12U includes essential load shedding and circuit breakers for enhanced safety, maintaining system performance, and protecting equipment under heavy usage conditions.

Robust NEMA 12 Enclosure

With a sturdy NEMA 12 enclosure, the device offers superior protection against harsh weather conditions and windblown dust, thereby ensuring longevity and reliability in varied environments.

Flexible System Configuration

The product accommodates a variety of generator, PV, and load sizes, making it adaptable to different system specifications and enhancing its utility for diverse installation needs.

Pre-wired for Quick Setup

Pre-wired connections allow for hassle-free installation, saving time and effort by minimizing the need for additional setup processes, thus enhancing installation efficiency.

How It Works

The SMA Solar Multicluster-Box operates by simplifying the integration of multiple three-phase clusters, each containing Sunny Islands. It provides a centralized connection point for photovoltaic or wind energy systems, facilitating a seamless flow of power across connected systems.

Centralized Connection Management

Acts as a central hub for connecting PV and generator systems, simplifying system architecture and reducing complexity in power management.

Pre-wired Communication Cables

Includes communication cables that are pre-configured to ensure an efficient and straightforward setup process, enhancing connectivity and system performance.

Emergency Operation Features

These capabilities allow for easy control during emergencies, ensuring that systems maintain operation under critical conditions.

Specifications
