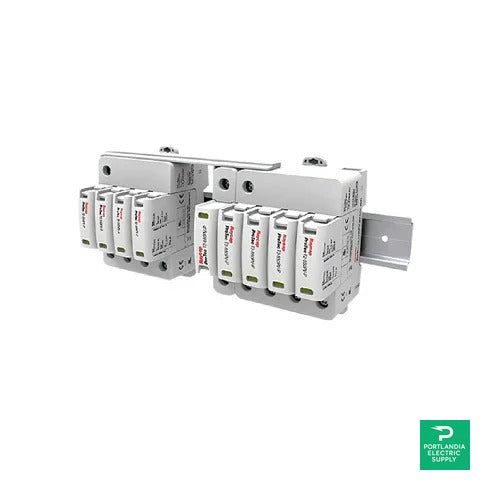

SMA Solar DC Surge Protector for CORE1-US Type 1/2
The SMA Solar DC_SPD_KIT5_T1T2 is a high-performance surge protection device specially designed for safeguarding photovoltaic systems. Its robust construction ensures optimal protection against electrical surges, making it an essential component for maintaining system integrity and efficiency. With advanced features, this surge protector helps prevent damage to photovoltaic installations, thus ensuring long-term reliability.
Product Features
Advanced Surge Protection
This surge protection device effectively shields your photovoltaic systems from electrical surges, leveraging advanced protective mechanisms to ensure durability and performance.
High Energy MOV Elements
The inclusion of high energy Metal Oxide Varistor (MOV) elements allows the device to handle substantial surges, providing peace of mind and enhancing system safety.
Pluggable Design
Featuring a user-friendly pluggable design, the device can be easily installed and replaced, making maintenance straightforward and hassle-free.
Type 1/2 Protection
Designed as a Type 1 and Type 2 SPD, the device caters to various protection needs within photovoltaic systems, improving versatility and coverage.
Thermal Protection
Equipped with thermal protection, the surge protector mitigates overheating risks, thereby safeguarding connected components and ensuring stable operation.
How It Works
This surge protection device operates by intercepting and neutralizing high-energy surges before they can damage sensitive photovoltaic equipment. Its design incorporates essential components that function in harmony to maintain system performance and extend lifespan.
High Energy MOV
The high energy Metal Oxide Varistor (MOV) elements form the core of the device, responsible for clamping voltage surges and protecting internal components.
Pluggable Modules
The pluggable module design facilitates quick installation and easy maintenance, minimizing downtime during replacement or inspection processes.
Remote Contact Monitoring
An optional remote contact feature provides additional monitoring capabilities, allowing system operators to quickly respond to protection status alerts.
Specifications
| Maximum Continuous Operating DC Voltage | 1100 V |
| Nominal Discharge Current | 20 kA |
| Total Discharge Current | 50 kA |
| Voltage Protection Level | 4400 V |
| Response Time | < 25 ns |
| Short-Circuit Current Rating | 11 kA |
| Operating Temperature Range | -40 F to +185 F |
| Permissible Operating Humidity | 5%...95% |
| Degree Of Protection | IP 20 |
| Housing Material | Thermoplastic UL 94 V-0 |
| SKU | PES-PA-ELC-0022 |
|---|---|
| MPN | DC_SPD_KIT5_T1T2 |
| Manufacturer | SMA Solar |
| Brands | |
| Container price | |
| Container qty | |
| Documents | |
| Isfollow | |
| Isindex | |
| Pallet price | |
| Unit price | |
| Manufacturer | |
| Model number |
