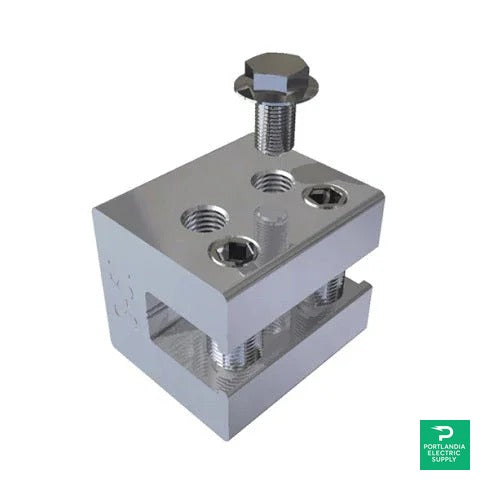

S-5! Metal Roof Clamp - S-5-H90

The S-5-H90 is an innovative one-piece clamp designed specifically for metal roof panels with horizontal seams greater than 0.65 inches. This unique feature allows for secure, cost-effective installation while maintaining the integrity of the roof. The S-5-H90 clamp is perfect for use in a variety of applications, including snow retention systems and other heavy-duty uses, ensuring a robust solution for your roofing needs.

Product Features

Versatile Compatibility

With its capacity to accommodate horizontal seam panels, the S-5-H90 clamp is a practical choice for those looking to enhance their metal roofing systems. This feature ensures that it can be integrated seamlessly into various roofing applications, including those with different design requirements.

Secure Installation

The S-5-H90 is designed for easy attachment. By simply turning the clamp 90 degrees and tightening the setscrews, users can efficiently install the clamp without any complications. This straightforward installation process enhances usability and ensures a secure fit every time.

Designed for Heavy-Duty Use

Ideal for robust applications, the S-5-H90 clamp is compatible with S-5! ColorGard® and X-Gard snow retention systems. Its construction can handle the demands of heavy-duty settings, making it a reliable choice for various roofing projects.

Durable Construction

Constructed from structural aluminum, the S-5-H90 clamp is built to last. Its durable design ensures that it can withstand the test of time while providing reliable support for all connected rooftop accessories.

Unique Setscrew Feature

The patented setscrews on the S-5-H90 clamp offer a unique advantage by dimpling the metal seam material without puncturing it. This feature preserves the integrity of the roof and keeps the manufacturer's warranties intact, providing peace of mind for roofing professionals.

How It Works

The S-5-H90 clamp operates by securely gripping the roof seam, providing a stable foundation for various rooftop accessories. Its straightforward design allows for quick installation and reliable performance, ensuring that everything stays firmly in place even under challenging conditions.

Clamp Mechanism

The primary mechanism of the S-5-H90 clamp involves its setscrews which secure the connection to the standing seam. This functional aspect is crucial for maintaining the clamp's position on the panel, ensuring consistent performance.

Accessory Attachment

The clamp features two threaded bolt holes, allowing for the attachment of various accessories. This design provides flexibility and versatility, accommodating a wide range of rooftop installations while ensuring solid support for all fixed items.

Independent Testing

Backed by independent lab tests, the S-5-H90 clamp has proven holding strength across various horizontal standing seam profiles. These tests validate the clamp's durability and effectiveness in real-world applications, ensuring that customers receive a reliable product.

Specifications
