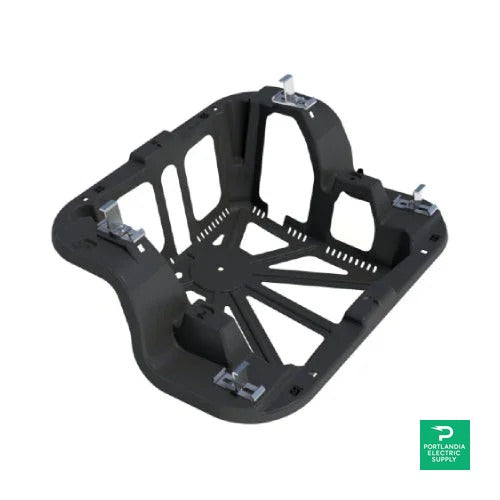

Ironridge bx chassis 10 Degree - BX-10D-P1

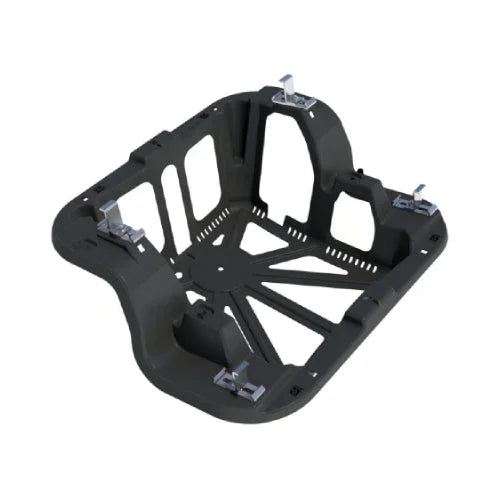

Ironridge BX Chassis 10 Degree - BX-10D-P1

The Ironridge BX-10D-P1 offers a robust and efficient solution for solar panel mounting, specifically designed for flat roofs. This chassis features a unique 10 degree tilt, allowing for optimal sunlight capture and enhancing overall energy production. Made from a durable glass-reinforced composite, it is built to withstand extreme structural loading while being corrosion-resistant, contributing to its long-term reliability.

Product Features

Durable Construction

The BX-10D-P1 chassis is constructed from a glass-reinforced composite material that is designed for longevity and structural integrity. This ensures that the system maintains stability over time, even under challenging weather conditions.

Optimal Tilt Angle

With a specified 10 degree tilt, this chassis enhances solar energy collection, allowing modules to capture more sunlight throughout the day. This crucial feature maximizes system performance and energy efficiency, ensuring users achieve the best output from their solar installations.

Versatile Module Compatibility

This system provides flexibility, accommodating a variety of PV module sizes and types. It is compatible with multiple manufacturers, allowing various solar panel models to be fitted securely, making it a versatile choice for different installation needs.

Innovative Design for Easy Installation

The design of the BX-10D-P1 chassis includes integrated reference tabs that simplify module alignment. This user-friendly feature streamlines installation, making the process quicker and more efficient for contractors and installers.

Environmental Resistance

Designed to withstand the elements, the BX-10D-P1 chassis is built to resist corrosion and maintain its functionality in various environmental conditions. This is essential for ensuring the longevity and reliability of solar installations.

How It Works

The Ironridge BX-10D-P1 operates primarily as a mounting solution for solar PV modules on flat roofs. Its innovative design ensures that modules are anchored securely while allowing for proper drainage and airflow.

Support Structure

The chassis is engineered to provide an effective support framework, allowing modules to be firmly mounted while ensuring stability and resilience under varying loads.

Grounding System

This system includes an efficient grounding solution that enhances electrical safety. It provides the necessary connections to ensure all components are properly grounded, minimizing risk during operation.

Ballast Accommodation

It accommodates concrete ballast blocks that meet ASTM specifications, ensuring the system adheres to safety standards while providing the necessary weight to secure the outdoor installation effectively.

Specifications
