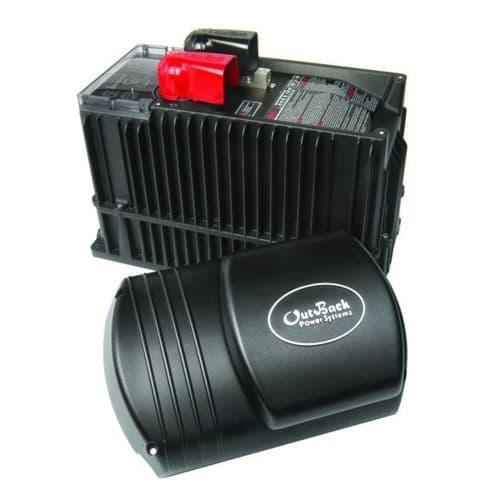

Outback Power Grid-interactive Fxr Renewable Series Inverter VFXR3024E
Outback Power Grid-interactive Fxr Renewable Series Inverter VFXR3024E
PayPal Pay in 4 interest-free payments of $487.78 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Orders ship via freight or ground from Louisville, KY. Tracking provided once your order ships.
Ships via ground carrier, tracked. Pallet & heavy orders go LTL freight — our team confirms freight within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Ships from our Louisville, KY warehouse. Freight details →
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for OutBack Power. 50,000+ SKUs from 169 authorized brands.
The OutBack Power VFXR3024E is a 3.0kW battery-based inverter/charger for 24VDC systems — Vented FXR-series platform delivering pure sine power for off-grid and grid-interactive applications (230VAC export).
Key Features
- 3.0kW continuous pure sine wave output from a 24VDC battery bank
- Vented chassis built for demanding environments
- Grid-interactive and off-grid capable — sell-back, backup, or standalone operation
- Integrated battery charger with programmable multi-stage charging for flooded, AGM, and lithium
- Built-in AC transfer switching for seamless source changes
- System configuration and monitoring via MATE3s and OPTICS RE
- Stackable for higher power or split/three-phase configurations
Specifications
| Model | VFXR3024E |
| Continuous Output | 3.0kW |
| Battery Voltage | 24VDC |
| AC Output | 230VAC export |
| Chassis | Vented |
| Waveform | Pure sine wave |
| Monitoring | MATE3s / OPTICS RE compatible |
| Warranty | Standard 5-year OutBack warranty (extendable) |
Authorized OutBack Power distribution — full manufacturer warranty. Ships via ground; pre-wired power centers and battery systems ship LTL freight.
| Manufacturer | OutBack Power |
|---|---|
| Height | |
| Length | |
| Width |
No documents available for this product. Contact us to request documentation.
