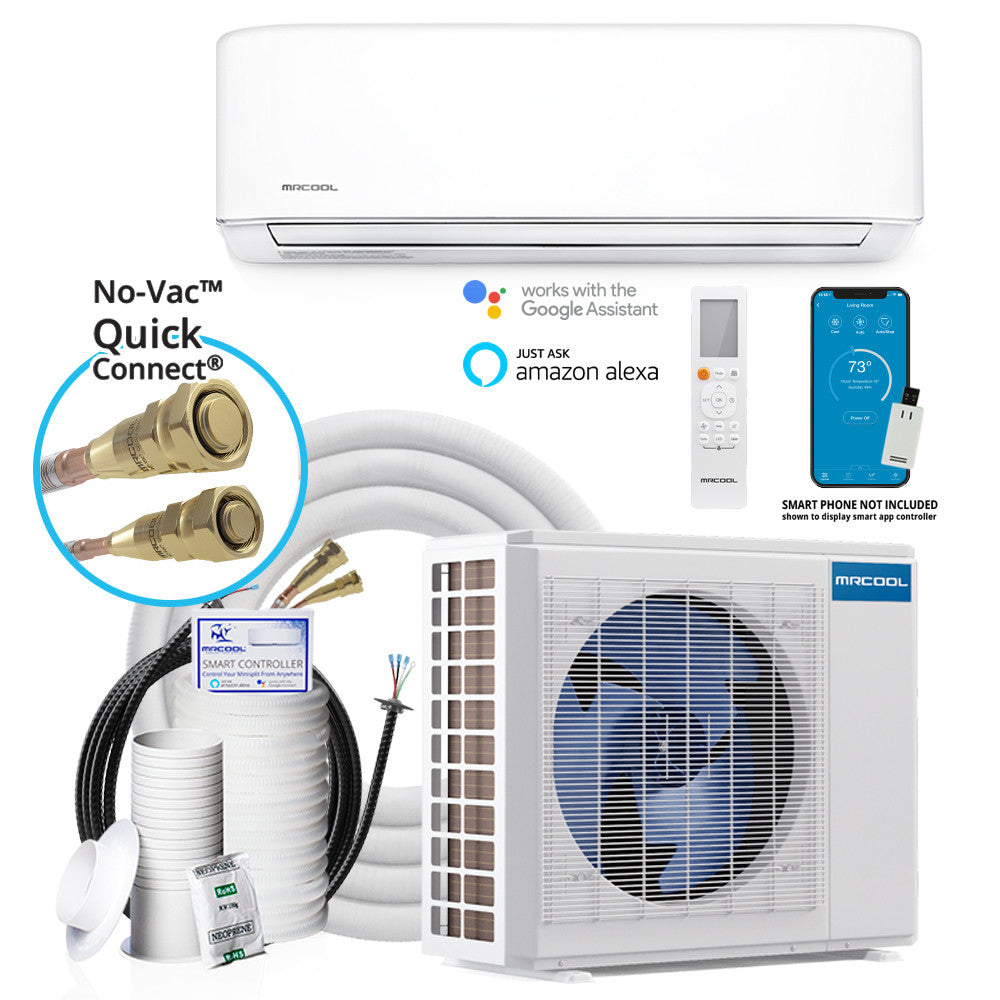

MRCOOL DIY 24,000 BTU 22 SEER2 Ductless Mini-Split Heat Pump System
The MRCOOL DIY 5th Generation Mini-Split is America's only DIY-friendly ductless mini-split heat pump system. Designed for easy installation with pre-charged line sets and quick-connect fittings, this 24,000 BTU system efficiently cools and heats spaces up to 1,500 sq. ft. With a 22 SEER2 rating, it delivers exceptional energy efficiency and year-round comfort without the need for professional HVAC installation.
- DIY Installation: Pre-charged line sets with quick-connect fittings — no special tools or professional HVAC license required
- 22 SEER2 Efficiency: Exceeds DOE minimum standards for lower energy bills
- Heating & Cooling: Functions as both air conditioner and heat pump for year-round use
- Smart Control: Wi-Fi enabled with smartphone app control (iOS/Android) and voice assistant compatibility
- Quiet Operation: Indoor unit operates as low as 31 dB for undisturbed comfort
- Follow Me Function: Remote thermostat built into the handheld remote for precise temperature control
- Gold Fin Condenser: Corrosion-resistant coating extends unit lifespan in coastal or humid climates
- Leak Detection: Built-in auto-leak detection system for safe operation
Technical Specifications
| Cooling Capacity | 24,000 BTU/h (2 Ton) |
| Heating Capacity | 24,000 BTU/h |
| SEER2 Rating | 22 SEER2 |
| Voltage | 208/230V / 60Hz / 1-Phase |
| Refrigerant | R454B (Eco-friendly) |
| Max Room Size | Up to 1,500 sq. ft. |
| Indoor Unit Noise Level | 31-47 dB |
| Outdoor Unit Noise Level | 56 dB |
| Line Set Length | 25 ft. pre-charged |
| Warranty | Limited Lifetime Compressor / 2-Year Parts |
What's in the Box
- 1x Outdoor Condenser Unit
- 1x Indoor Wall-Mount Air Handler
- 25 ft. Pre-Charged Line Set with Quick-Connect Fittings
- Remote Control with Follow Me Function
- Wall Mounting Bracket
- Installation Kit & Hardware
| SKU | PES-MRC-MRCOOL-DIY-24K- |
|---|---|
| Manufacturer | MRCOOL |
