Enphase IQ8 IQ8MC-72-M-US-NFC Microinverter 240/208V Split Phase 330VA Max Power MC4 Connectors
Enphase IQ8 IQ8MC-72-M-US-NFC Microinverter 240/208V Split Phase 330VA Max Power MC4 Connectors
PayPal Pay in 4 interest-free payments of $40.74 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Your card is not charged until stock is confirmed. Enter your ZIP below for a transit estimate. Tracking provided once your order ships.
Ships via ground carrier, tracked. Pallet & heavy orders go LTL freight — our team confirms freight within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-EMI-0415
- MPN
- IQ8MC-72-M-US-NFC
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for Enphase. 50,000+ SKUs from 169 authorized brands.

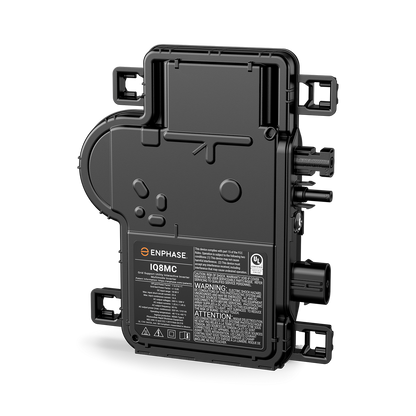

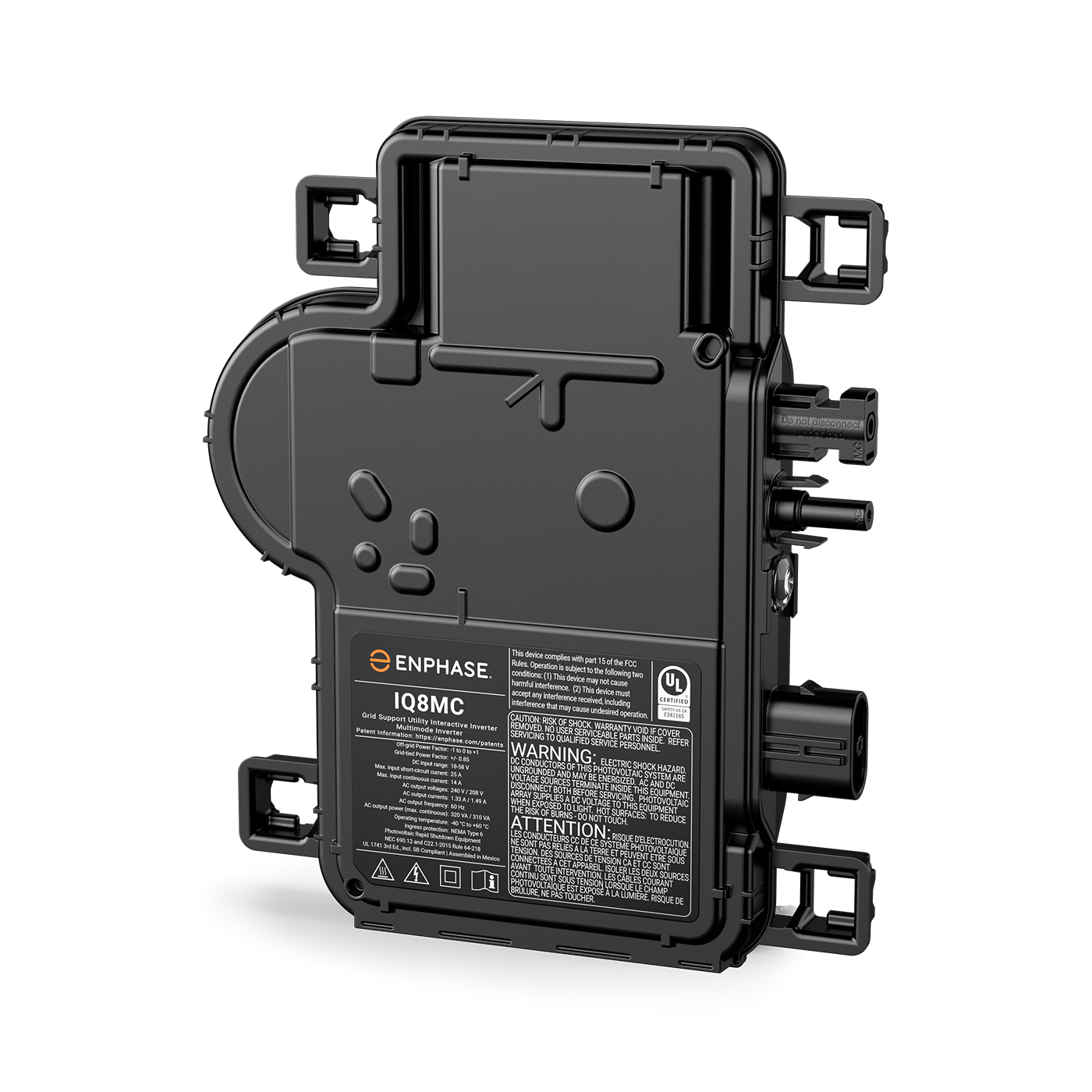

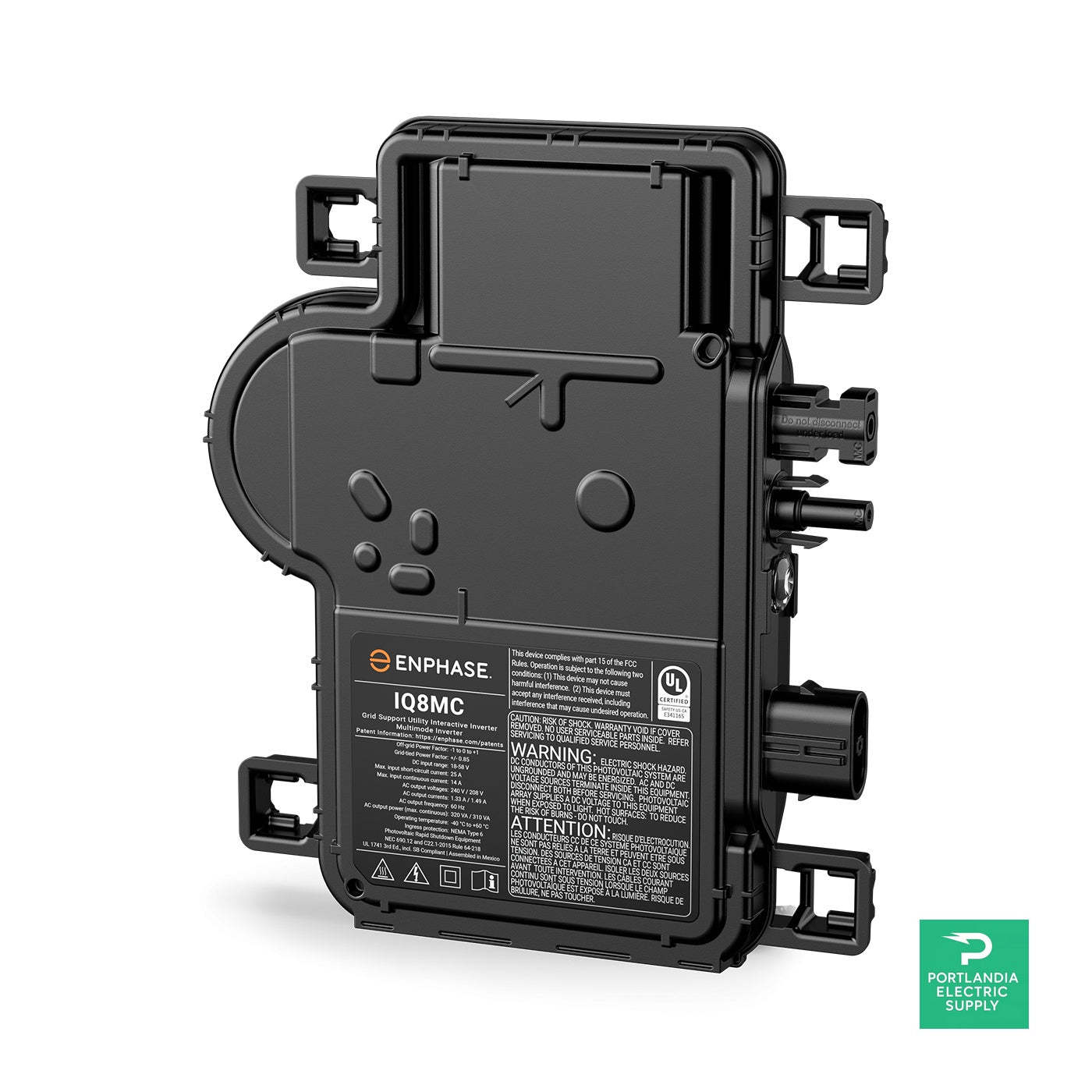

Enphase IQ8MC Microinverter
Model IQ8MC-72-M-US-NFC | 240/208V Split-Phase | 330 VA Peak | Integrated MC4 + Female AC Connectors
Product Overview
The Enphase IQ8MC (IQ8MC-72-M-US-NFC) is part of the newest IQ8 Series Microinverters — the industry's first microgrid-forming, software-defined microinverters with split-phase power conversion capability for efficient DC-to-AC conversion. The IQ8MC is compatible with 54/108, 60/120, and 72/144 cell PV modules, supports 240/208 V split-phase output, and ships with integrated MC4 DC connectors and a female AC connector for fast, reliable installation.
At the heart of every IQ8 microinverter is Enphase's proprietary application-specific integrated circuit (ASIC), enabling the unit to operate in either grid-tied or off-grid modes. Built in advanced 55-nm technology with high-speed digital logic and superfast response times to changing loads and grid events, the IQ8 ASIC alleviates constraints on battery sizing for home energy systems and enables Sunlight Backup — the ability to keep producing solar power during a grid outage even without a battery.
Key Benefits
Microgrid-Forming & Software-Defined: Industry-first microgrid-forming microinverter with software-defined behavior, enabling flexible operation in grid-tied or off-grid modes and future-proof feature updates over time.
Proprietary 55-nm ASIC: Enphase's custom application-specific integrated circuit, built in advanced 55-nm semiconductor technology with high-speed digital logic, delivers superfast response to load and grid events — reducing constraints on battery sizing for home energy systems.
Split-Phase 240/208 V Output: Native split-phase power conversion supports both 240 V residential and 208 V light-commercial services, delivering up to 330 VA peak AC output per microinverter.
Broad Module Compatibility: Compatible with 54/108, 60/120, and 72/144 cell PV modules, giving designers flexibility across a wide range of residential and commercial module choices.
Plug-and-Play Connectors: Integrated MC4 DC connectors and a female AC connector simplify wiring on the roof and accelerate installation, while reducing installation errors.
Module-Level Performance & Monitoring: As a true module-level converter, the IQ8MC isolates underperforming or shaded modules, maximizing total array output, and integrates with the Enphase monitoring platform for real-time per-module visibility.
How It Works
Each IQ8MC microinverter is mounted directly behind a single solar module and converts that module's DC output into grid-quality split-phase AC at the source. By performing conversion at the module level instead of using a single string inverter, the IQ8MC isolates each module's performance, eliminates high-voltage DC on the roof, and enables flexible system design.
Module-Level DC-to-AC Conversion: DC power from a single PV module is converted directly to 240/208 V split-phase AC at up to 330 VA peak, ensuring each module operates at its maximum power point independently.
ASIC-Driven Grid Response: The 55-nm ASIC continuously monitors grid voltage and frequency, responding in microseconds to grid events — enabling smooth transitions between grid-tied and microgrid-forming operation.
Integrated AC Trunk Wiring: Microinverters are daisy-chained on the Enphase IQ Cable system using the female AC connector, simplifying string wiring and minimizing installation labor compared to traditional string inverter setups.
Technical Specifications
| Manufacturer | Enphase Energy |
| Model Number | IQ8MC-72-M-US-NFC |
| Product Family | IQ8 Series Microinverter |
| Peak AC Power Output | 330 VA |
| AC Output Configuration | 240 / 208 V Split-Phase |
| Compatible PV Modules | 54/108, 60/120, and 72/144 Cell |
| DC Input Connectors | Integrated MC4 |
| AC Output Connector |
● Available | Contact us for lead time and pricing
| SKU | PES-SPS-EMI-0415 |
|---|---|
| MPN | IQ8MC-72-M-US-NFC |
| Manufacturer | Enphase |
| Container price | |
| Container qty | |
| Pallet price | |
| Product specifications | |
| Unit price | |
| Inverter type | |
| Manufacturer | |
| Model number | |
| Voltage |
No documents available for this product. Contact us to request documentation.
