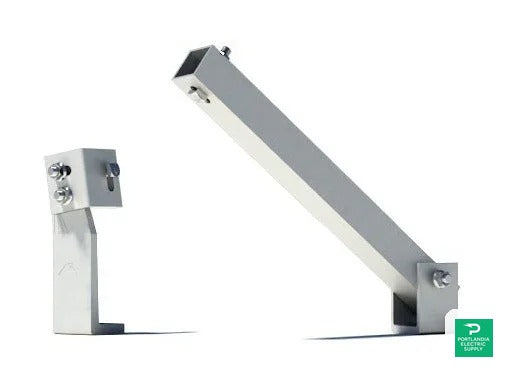

Ironridge 25" Mill Fixed Tilt Leg - TM-FTL-025

Ironridge 25-Inch Mill Fixed Tilt Leg - TM-FTL-025

The Ironridge TM-FTL-025 is a robust fixed tilt leg designed to provide optimal support for solar modules, allowing angles of up to 30 degrees. This tilt leg is specially engineered to handle various wind and snow loads, ensuring reliability and stability. Crafted from high-quality materials, this tilt leg not only enhances the performance of your solar setup but also guarantees durability over time.

Product Features

Unique Curved Profile

The TM-FTL-025 features a unique curved design that enhances its structural integrity, allowing for a wide angle range while maintaining strength. This allows users to adjust their systems effectively to maximize solar exposure.

Corrosion-Resistant Material

Crafted from aluminum with clear anodized finishes, this tilt leg is designed to withstand harsh environmental conditions without succumbing to corrosion. This feature ensures a long-lasting performance for your solar installations.

Multiple Length Options

Available in various lengths, the TM-FTL-025 accommodates different installation needs. This flexibility allows for tailored solutions that meet specific project requirements, providing versatility to users.

Pre-assembled Components

This tilt leg comes pre-assembled with south tilt legs and all necessary hardware, streamlining the installation process. This design saves time and effort while ensuring accuracy in assembly.

Integrated Grounding System

Featuring an integrated grounding system, the TM-FTL-025 eliminates the need for separate grounding components, enhancing safety while simplifying the setup process for solar module installations.

How It Works

The Ironridge Tilt Mount System is engineered for simplicity and effectiveness. It supports a range of solar panel tilting angles, allowing for optimal energy capture while resisting environmental stresses. With every component meticulously designed, users can trust in a reliable and efficient solar mounting solution.

XR Rails Tilt Legs

The XR Rails Tilt Legs are mounted directly to achieve the desired tilt angle. Including indicator marks, they ensure precise adjustments up to 30 degrees, enhancing user experience and installation efficiency.

Clamping and Grounding Mechanism

Our clamps enable secure module attachment at the ends of the rails, while grounding lugs allow for effective electrical grounding, integrating seamlessly with the tilt system.

Seamless Internal Splices

Each rail contains internal splices that enable perfect joints without visible connections, maintaining the clean and professional look of the installation.
