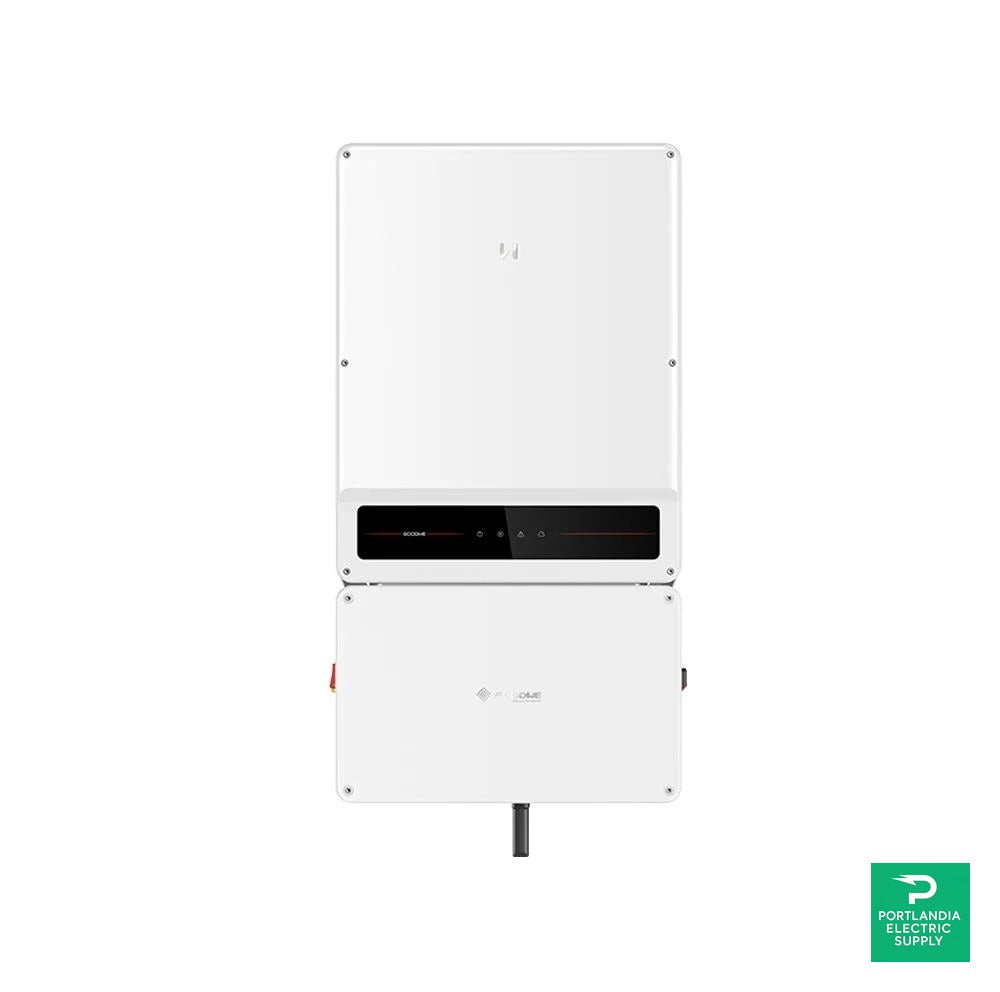

GoodWe GW60K-SMT-US APS — 60 kW, 480 V 3-Phase C&I String Inverter
The GoodWe SMT-US Series 480V Commercial Inverter - GW60K-SMT-US APS is a high-performance solution designed to optimize energy conversion for commercial solar installations. Engineered with advanced technology, this inverter ensures maximum efficiency, reliability, and durability, making it a top choice for businesses seeking sustainable energy solutions. Whether you are upgrading your existing solar system or starting a new commercial project, the GW60K-SMT-US APS offers cutting-edge features to meet all your energy demands.
- Up to 6 MPPTs (2 strings each) for flexible arrays.
- 98.5% max efficiency; CEC 98.2%.
- NEMA Type 4X outdoor rating; smart fan cooling.
- Integrated Type II SPD (DC/AC), AFCI, rapid shutdown (PVRSS).
- Communication: RS485, Wi-Fi, USB, optional 4G or Wi-Fi+LAN; SunSpec Modbus.
- APS variant includes integrated APsmart RSD transmitter.
Technical Specifications
| Input (DC) | |
|---|---|
| Max. Input Voltage (V) | 1000 |
| MPPT Operating Voltage Range (V) | 180–980 |
| Start-up Voltage (V) | 200 |
| Nominal Input Voltage (V) | 720 |
| Max. Input Current per MPPT (A) | 30 |
| Max. Short-Circuit Current per MPPT (A) | 50 |
| Number of MPPTs / Strings per MPPT | 6 / 2 |
| Output (AC) | |
| Nominal Output Power (kW) | 60 |
| Nominal Apparent Power (kVA) | 60 |
| Max. AC Active / Apparent Power | 66 kW / 66 kVA |
| Nominal AC Grid Voltage | 480 V, 3L/N/PE or 3L/PE |
| Nominal AC Frequency (Hz) | 60 |
| Max. Output Current (A) | 80 |
| Power Factor | ~1 (adjustable 0.8 leading to 0.8 lagging) |
| Total Harmonic Distortion | < 3% |
| Efficiency | |
| Max. Efficiency | 98.5% |
| CEC Efficiency | 98.2% |
| Protection | |
| PV String Current / Insulation / Residual Current Monitoring | Integrated |
| PV Reverse Polarity / Anti-islanding | Integrated |
| AC Overcurrent / Short Circuit / Overvoltage | Integrated |
| DC Switch / AC Switch | Integrated |
| Surge Protection | DC Type II; AC Type II |
| AFCI / Rapid Shutdown | Integrated (PVRSS) |
| General | |
| Operating Temp. Range | -30 ~ +60 °C (>45 °C derating) |
| Relative Humidity | 0 ~ 100% |
| Max. Operating Altitude | 4000 m (>3000 m derating) |
| Cooling | Smart fan cooling |
| User Interface | LED, WLAN + App |
| Communication | RS485, Wi-Fi, USB, optional 4G or Wi-Fi+LAN; Modbus-RTU (SunSpec) |
| Dimensions (W×H×D) | 520 × 990 × 220 mm (20.5 × 39.0 × 8.7 in) |
| Weight | 70 kg (154.3 lb) |
| Noise Level | < 65 dB(A) |
| Topology | Non-isolated |
| Self-consumption at Night | < 12 W* |
| Ingress Protection | Type 4X (NEMA 4X) |
| DC Connector | #12 ~ #8 AWG Cu |
| AC Connector | OT (#5–3/0 AWG, Cu or Al) |
| Compliance | |
| Certifications | UL 1741 (SB), IEEE 1547-2018 / 1547.1-2020 / 1547a-2020, CSA C22.2 No.0.8-19, UL 1998, IEEE 2030.5; PVRSS (NEC 690.12; CEC 64-218) |
* Less than 1 W without optional RSD and 24-hour load monitoring (datasheet note).
Specs source: GoodWe SMT-US datasheet & manual.
Unmatched Performance and Efficiency
The GoodWe SMT-US Series 480V Commercial Inverter - GW60K-SMT-US APS boasts industry-leading efficiency levels, capable of converting solar energy into usable electricity with minimal losses. Its smart design incorporates multi-MPPT (Maximum Power Point Tracking) technology, allowing for optimal performance even in partially shaded conditions or complex rooftop configurations. With efficiency rates reaching over 98%, this inverter ensures that commercial systems deliver maximum energy output while reducing overall operational costs.
Businesses relying on consistent energy supply can trust the GoodWe SMT-US Series 480V Commercial Inverter - GW60K-SMT-US APS to maintain stable power conversion. Its dynamic voltage and frequency control features ensure smooth integration with existing electrical infrastructure. The inverter’s wide voltage range allows compatibility with a variety of solar panels, making it flexible for installations of different scales.
Advanced Safety Features
Safety is a critical factor in commercial solar applications, and the GoodWe SMT-US Series 480V Commercial Inverter - GW60K-SMT-US APS addresses this with multiple protective mechanisms. Built-in features include overcurrent protection, ground fault detection, and anti-islanding capabilities. These safeguards not only protect the inverter itself but also enhance the overall safety of the commercial solar installation.
Additionally, the inverter’s robust thermal management system prevents overheating during prolonged operations, ensuring reliable performance even in high-temperature environments. This makes the GW60K-SMT-US APS ideal for commercial installations in diverse climatic conditions.
User-Friendly Interface and Monitoring
Managing a commercial solar system is made simple with the GoodWe SMT-US Series 480V Commercial Inverter - GW60K-SMT-US APS. Equipped with an intuitive interface and remote monitoring options, system operators can track real-time energy production, performance metrics, and any operational alerts. The inverter is compatible with mobile and web applications, offering a seamless experience for monitoring and maintenance.
The built-in data logging capabilities allow for detailed analysis and reporting, making it easier for businesses to optimize energy consumption and improve overall efficiency. This level of control ensures that commercial users can maximize their return on investment and make informed decisions about their energy strategy.
Durability and Longevity
Constructed with high-quality materials, the GoodWe SMT-US Series 480V Commercial Inverter - GW60K-SMT-US APS is built to withstand challenging commercial environments. Its corrosion-resistant casing, high ingress protection rating, and robust internal components provide long-lasting reliability. This durability translates into fewer maintenance requirements and a longer operational life, which is essential for commercial enterprises seeking sustainable and cost-effective energy solutions.
Seamless Integration for Commercial Systems
The GoodWe SMT-US Series 480V Commercial Inverter - GW60K-SMT-US APS is designed for seamless integration into existing commercial solar arrays or new installations. Its compatibility with multiple grid standards, along with flexible installation options, allows for straightforward deployment. Whether your project requires rooftop, ground-mounted, or hybrid configurations, this inverter adapts easily to your energy infrastructure.
By investing in the GW60K-SMT-US APS, commercial enterprises gain a reliable partner for energy management that enhances sustainability, reduces electricity costs, and supports long-term operational goals.
