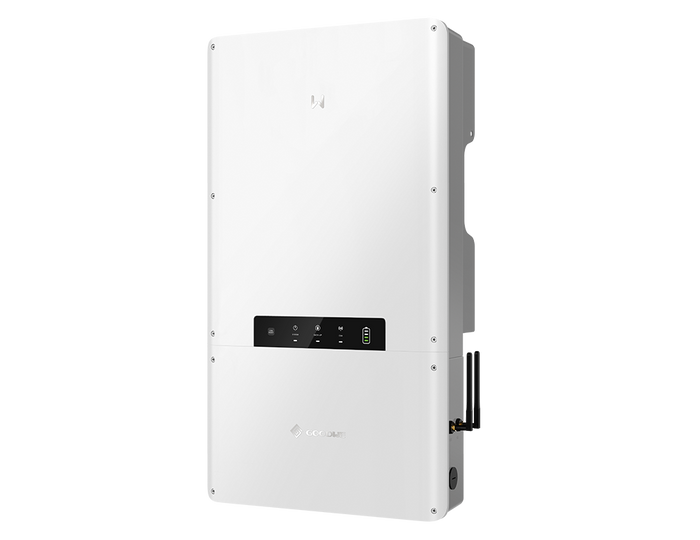

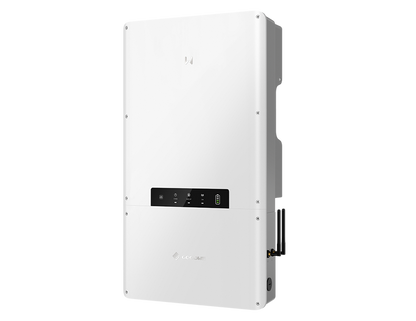

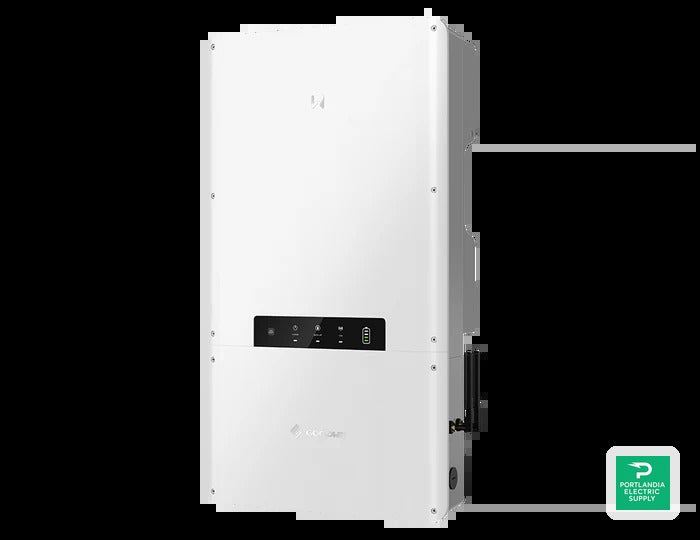

GoodWe SBP-US (G2) — GW5000-SBP-US20, 5.0 kW Split-phase AC-Coupled w/ EZLink + 4G
North-America AC-coupled retrofit inverter with built-in autotransformer (no extra auto-transformer for unbalanced loads), micro-grid/backup operation, and generator compatibility. Communications per datasheet: LAN (4G optional) + Bluetooth + Wi-Fi; this listing includes the Ezlink + 4G bundle. Outdoor-rated NEMA 4X, passive cooling for low noise. :contentReference[oaicite:2]{index=2}
Technical Specifications — GW5000-SBP-US20
| Battery Input | |
|---|---|
| Battery type | Li-ion (HV) |
| Nominal battery voltage | 300 V |
| Battery voltage range | 80–495 V* |
| Start-up voltage | 80 V |
| Number of battery inputs | 1 |
| Max continuous charge / discharge current | 50 A / 50 A |
| Max charging / discharging power | 5,000 W / 5,250 W |
| AC Output (On-grid) | |
| Nominal output power | 5,000 W |
| Nominal apparent power to grid | 5,000 VA |
| Max apparent power to grid / from grid | 5,000 VA / 5,000 VA |
| Max apparent power from grid w/o EV charger | 5,000 VA |
| Nominal output voltage / range | 240 V / 211–264 V |
| Grid frequency / range | 60 Hz / 58.5–61.2 Hz |
| Max AC current to grid / from grid | 20.8 A / 20.8 A (40.0 A with EV charger) |
| Power factor / THD | ~1 adjustable (0.8 lead…0.8 lag) / <3% |
| AC Output (Back-up) | |
| Back-up nominal apparent power | 5,000 VA |
| Max apparent power with grid | 10,000 VA @ 10 s** |
| Max output current | 20.8 A |
| Nominal back-up voltage / frequency | 240/120 V • 60 Hz |
| Back-up THDv (@ linear load) | <3% |
| Efficiency | |
| Max / CEC / Battery→AC | 97.0% / 96.0% / 97.0% |
| Protection (integrated) | |
| Residual-current monitoring; battery reverse-polarity; anti-islanding; AC over-current/short-circuit/over-voltage; AC SPD Type III; Battery Arc-Fault Detection. | |
| General | |
| Operating temp / humidity / altitude | −31 to +140 °F (−35 to +60 °C) / 0–95% / ≤ 9,842 ft (3,000 m) |
| Cooling / UI | Natural convection / LED, App |
| Communications | BMS: RS485, CAN • Meter: RS485 • Portal: LAN (4G optional) + Bluetooth + Wi-Fi |
| Dimensions (W×H×D) / Weight | 19.1 × 35.4 × 7.5 in • 65.9 lb |
| Noise emission | <20 dB |
| Topology / Night self-consumption | Non-isolated / <20 W*** |
| Ingress protection / Mounting | NEMA Type 4X / Wall-mounted |
| Certifications | |
| Grid interconnection | UL1741 SB, California Rule 21, HECO Rule 14, IEEE 1547, IEEE 1547.1 |
| Safety / EMC | UL 1741, CSA C22.2 No.107.1, UL1998, UL1699B / FCC Part 15 Class B |
* Battery discharge/charge power limited by voltage; in micro-grid the max battery voltage is 450 V. ** Reached only if PV and battery power are sufficient. *** Datasheet footnote “*3: No Back-up Output”. :contentReference[oaicite:3]{index=3}
EV Charger (Optional — series block)
| Charging level | AC Level 2 |
| Nominal AC power / frequency | 9,600 W / 60 Hz |
| Maximum continuous output current | 40 A (selectable 16/24/32/40 A; default 16 A) |
| Configuration & indicator / Cable length | App (Wi-Fi, Bluetooth) / 7.6 m* |
| Operating temp / altitude | −31 to +140 °F / ≤ 9,842 ft |
| Protection degree / Standards | NEMA 4X / UL2594, UL2231-1/-2; NEC 625; SAE J1772 |
* EV charger cable ordered separately (datasheet note). :contentReference[oaicite:4]{index=4}
