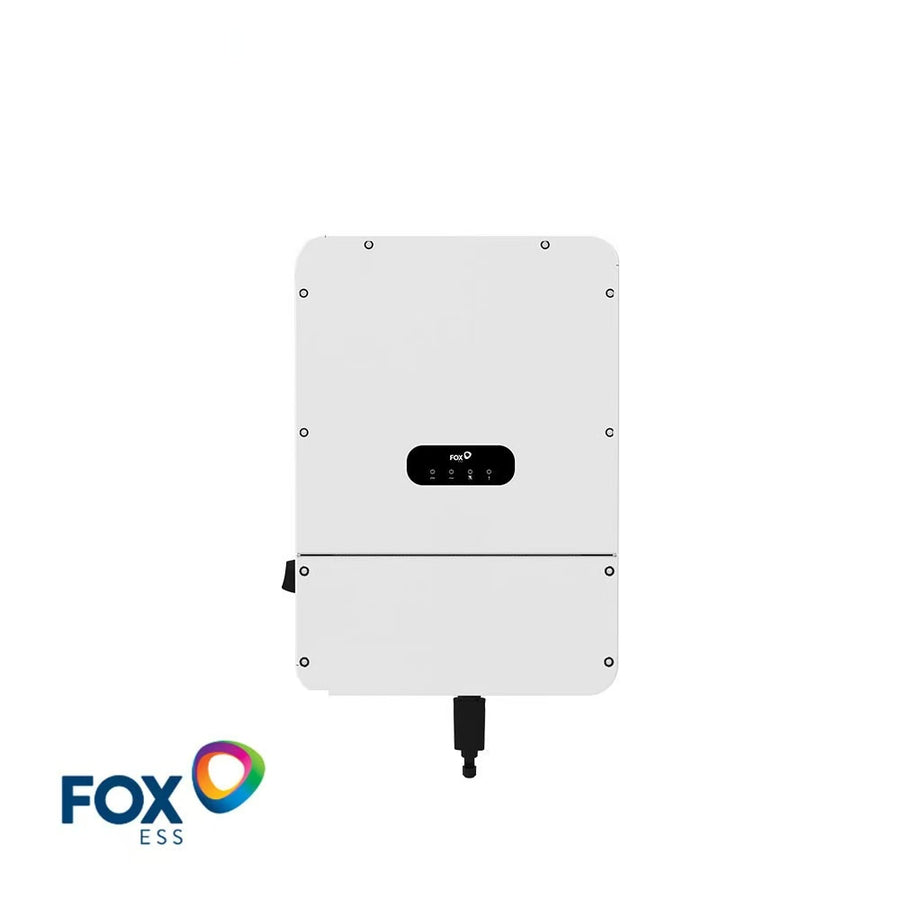

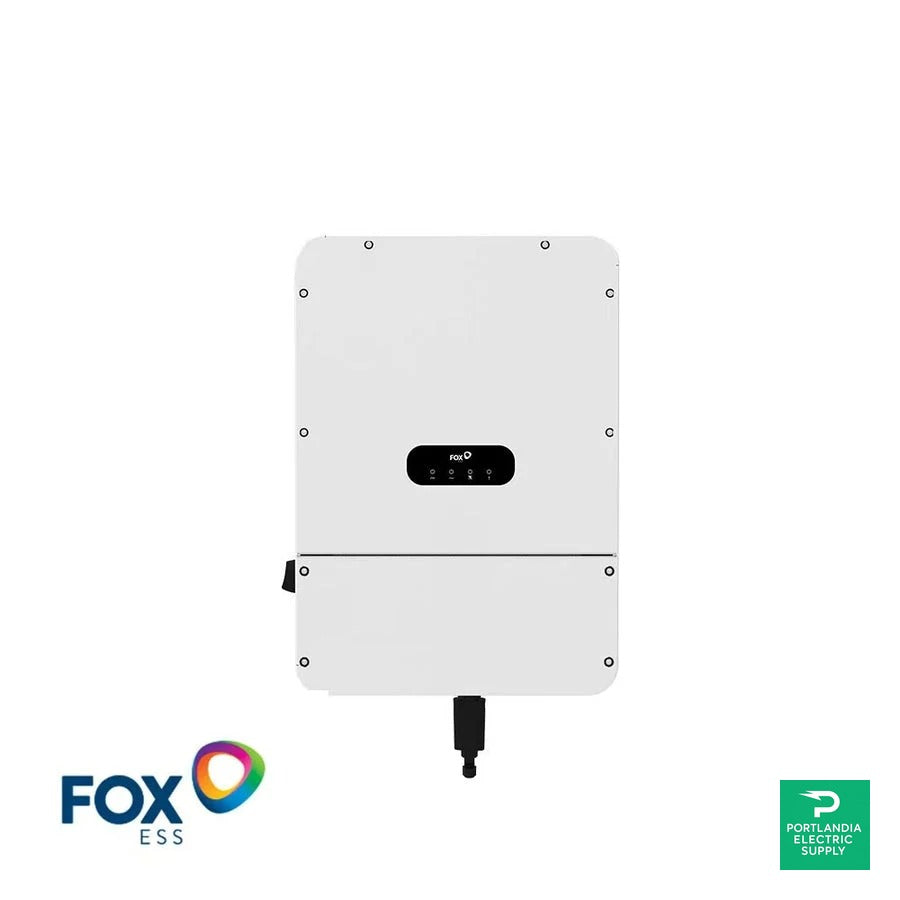

FoxESS 9.6kW Hybrid Inverter 3 MPPT, WIFI Included - H1-9.6-US ( 30-148-9623F-00 )

FoxESS H1-9.6-US hybrid inverter — 9.6 kW split-phase (120/240 V)

The FoxESS 9.6kW Hybrid Inverter - H1-9.6-US represents the next step in intelligent, future-ready energy solutions. It is designed specifically for high-demand residential and light commercial solar applications. Its advanced hybrid technology ensures efficient energy conversion and integrates seamlessly with battery storage. The inverter’s backup power management is smooth and reliable. It also features smart monitoring and multi-MPPT capabilities, ideal for complex solar setups.

As energy independence becomes more critical, the FoxESS 9.6kW Hybrid Inverter 3 MPPT, WIFI Included - H1-9.6-US ( 30-148-9623F-00 ) gains popularity. Its efficiency, adaptability, and durability make it a leading choice for modern solar power users.

Key features

• 9.6 kW rated output at split-phase 120/240 V; rated current of 40.0 A; power factor greater than 0.99
• PV input: 3 MPPT trackers · max 600 V · MPPT voltage window 80–550 V (full-load between 257–500 V) · currents of 28/14/14 A; short-circuit current (I_sc) 44/22/22 A
• Battery: Lithium Iron Phosphate (LFP) high voltage bus from 85–460 V, continuous 50 A charge and discharge; CAN 2.0 BMS communication interface
• Backup power: rated at 9.6 kW with maximum apparent power of 14.4 kVA; features a silent <35 dB fan-less thermal design
• Enclosure: Type 4X (IP66) rated, operating temperature range from −13 to 140 °F

Specifications

Advanced Hybrid Technology for Maximum Efficiency

This inverter flawlessly balances inputs from solar panels, batteries, and the electrical grid. It stores excess solar energy efficiently for later usage. This feature helps reduce dependence on grid power and lowers energy costs.

Energy flow is intelligently managed to maintain the highest efficiency. Supply continuity is ensured during power outages. It performs well for both grid-connected and backup use cases.

FoxESS 9.6kW Hybrid Inverter - H1-9.6-US with 3 MPPT Technology

A standout feature of the FoxESS 9.6kW Hybrid Inverter - H1-9.6-US is its three MPPT (Maximum Power Point Tracking) inputs. This supports complex rooftop or ground-mounted solar arrays with different orientations and shading, preventing energy loss.

Each MPPT tracker independently monitors voltage and current. This guarantees steady power production even in partial shading conditions. Its performance surpasses typical single or dual MPPT inverters.

Smart Monitoring with Built-In WiFi

The built-in WiFi module allows remote, real-time system monitoring. Users can review solar panel output, battery state, grid interaction, and overall system health anytime.

The FoxESS 9.6kW Hybrid Inverter - H1-9.6-US empowers users with data-driven energy management. This fosters optimized performance and full transparency over energy consumption.

Battery Compatibility and Backup Power Support

This inverter is compatible with high-voltage lithium battery systems. It enables scalable and efficient energy storage. The unit switches automatically to backup mode during grid outages.

This guarantees continuous power to essential loads. Its reliability is especially valuable in areas with unstable utility grids or for users requiring secure, hands-free backup power.

Robust Design and Long-Term Reliability

Constructed from premium quality components, this inverter delivers steady, consistent operation in harsh environments. Its advanced thermal design enhances operational life.

The FoxESS 9.6kW Hybrid Inverter - H1-9.6-US complies with stringent safety certifications. It offers protection against overloads, short circuits, overheating, and grid irregularities. This ensures reliable service and peace of mind for years to come.
