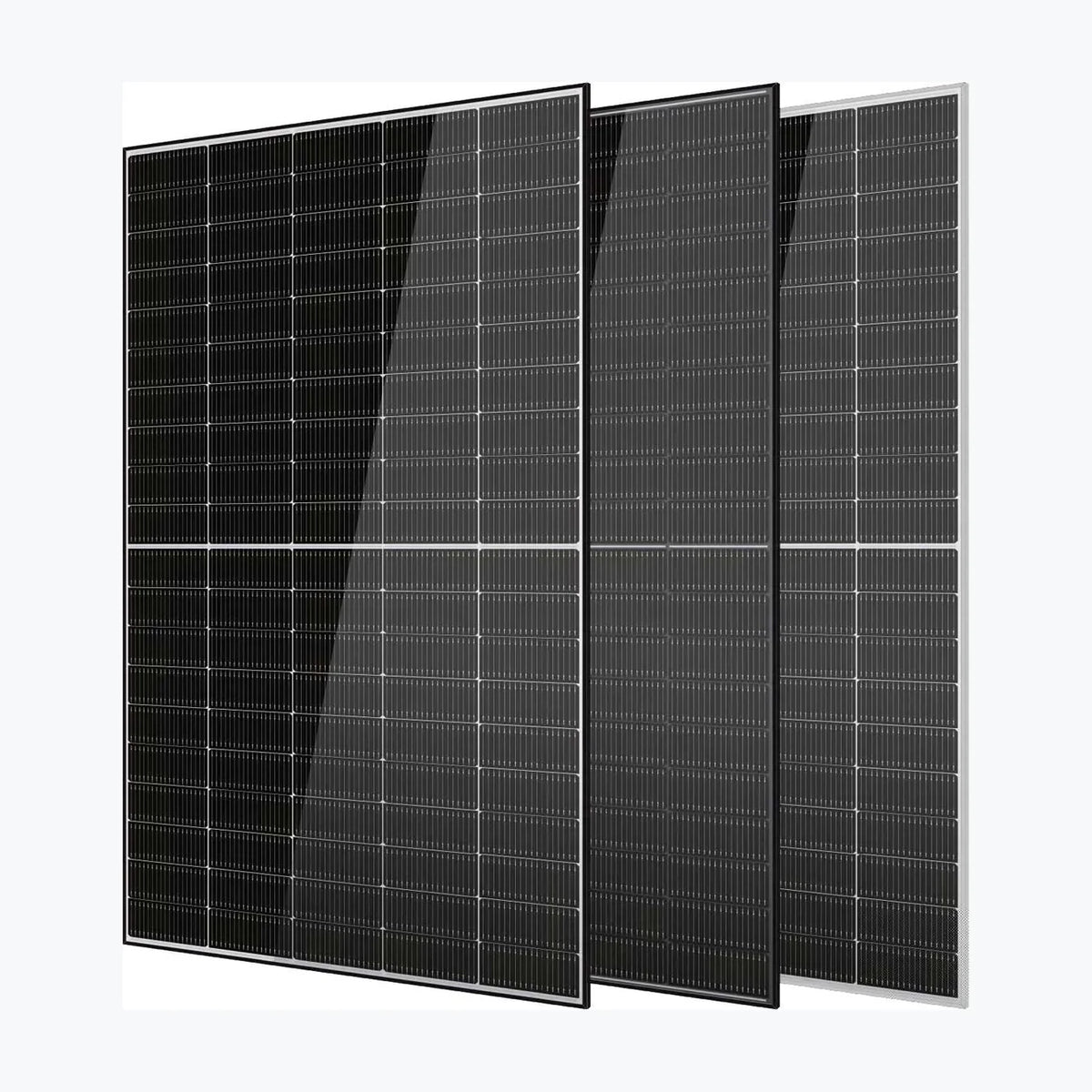

Horay Solar HS525TC-MHG-D
PayPal Pay in 4 interest-free payments of $46.00 on qualifying orders, or monthly financing with PayPal Pay Later.
Available at checkout for eligible US buyers. Subject to approval.
Ships by freight. Carrier checkout rates can’t price this correctly — we quote the exact delivered rate to your ZIP.
Orders ship via freight or ground from our Louisville, KY warehouse. Tracking provided once your order ships.
Ships via LTL freight — palletized, liftgate available. Our team confirms freight details within 1 business day.
✓ Lock pricing 7 days · Share with clients · Wire/ACH accepted
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
- SKU
- PES-SPS-SOL-8596
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for PES Global. 50,000+ SKUs from 169 authorized brands.
Type Monocrystalline Model No. HS525TC-MHG-D Product Warranty 15 Years Power Warranty 30 Years of 87.4 % Total Degradation Rate ⏳ 0.42 % Power Tolerance 0 ~ +3 % Maximum Power (Pmax) 525 Wp Voltage at Maximum Power (Vmpp) 31.85 V Current at Maximum Power (Impp) 16.48 A Open Circuit Voltage (Voc) 36.85 V Short Circuit Current (Isc) 17.8 A Panel Efficiency 22 % Maximum Power (Pmax) 400 Wp Voltage at Maximum Power (Vmpp) 29.75 V Current at Maximum Power (Impp) 13.45 A Open Circuit Voltage (Voc) 34.82 V Short Circuit Current (Isc) 14.25 A Temperature 45±2 °C Operating Temperature Range -40 - 85 °C Temperature Coefficient of Pmax -0.28 %/°C Temperature Coefficient of Voc -0.23 %/°C Temperature Coefficient of Isc 0.04 %/°C Maximum System Voltage 1500 V Series Fuse Rating 30 A Panel Dimension (H/W/D) 2172x1096x35 mm Weight 28 kg Cell Number 100 Glass Type Anti-reflection Coating Glass Thickness 2 mm Frame Type Anodized Aluminium, Black Junction Box Diodes 3 Junction Box Protection Class IP 6
Technology: Bifacial, N-type
Power Range: 510 ~ 530 Wp
Panel Efficiency: 21.4 ~ 22.2 %
Weight: 28 kg
Seller Name: Horay Solar Co., Ltd
Country: China
| SKU | PES-SPS-SOL-8596 |
|---|---|
| Manufacturer | PES Global |
| Container price | |
| Container qty | |
| Odoo id | |
| Pallet price | |
| Pallet qty | |
| Unit price | |
| Manufacturer | |
| Model number |
No documents available for this product. Contact us to request documentation.
