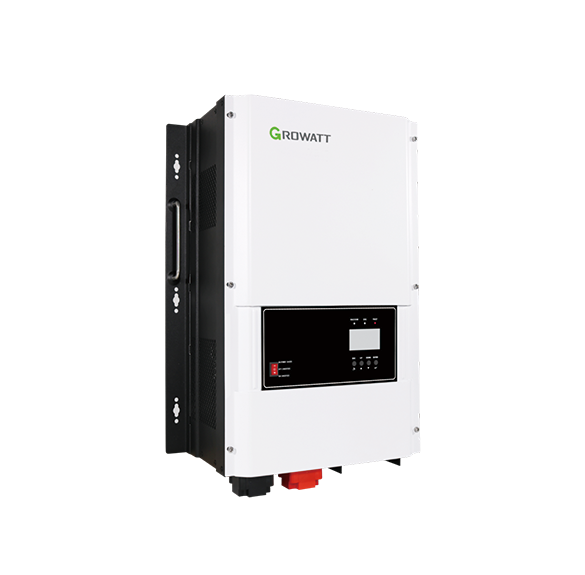

The Growatt SPF 12000T DVM-US MPV is a 12kW split-phase off-grid inverter with built-in low-frequency pure-copper transformer — 36kW surge, 110-120Vac (L-N) & 220-240Vac (L-L) output.
Key Features
- 12kW split-phase off-grid inverter (UL certified)
- Built-in low-frequency pure copper transformer; 36kW surge
- 48Vdc battery; 110-120Vac (L-N) & 220-240Vac (L-L)
- Integrated MPPT charge controller; output power factor up to 1.0
- Works with PV, battery, diesel generator and utility; lithium/lead-acid/GEL compatible
- WiFi-F module included
Compatibility: Growatt ALP 5.0L LV batteries; third-party 48V batteries
Specifications
| Model | SPF 12000T DVM-US MPV (WIFI-F) |
| Part Number | SKSL30.0005600 |
| Rated Output | 12,000 W |
| Surge | 36,000 W |
| Battery | 48Vdc |
| AC Output | 110-120Vac (L-N) / 220-240Vac (L-L) |
| Transformer | Built-in low-frequency pure copper |
| Certifications | UL1741 |
