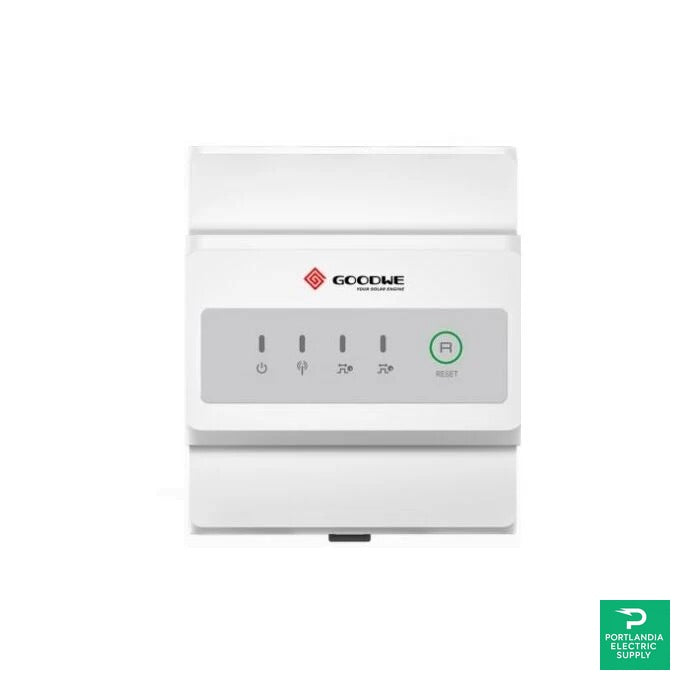

GoodWe GMK140 Smart Meter — with Outdoor-Rated Enclosure (Kit: GMA0300-08-00P)
Revenue-grade* residential/split-phase smart meter for GoodWe ES-US / SBP-US / MS-US systems. This kit pairs the DIN-rail GMK140 meter with an outdoor enclosure for weatherproof installs (the meter itself is IP20 and must be housed for outdoor use). *Datasheet accuracy Class 0.5. :contentReference[oaicite:0]{index=0}
Technical Specifications — from GoodWe GMK140 (US) Datasheet
| Grid & Measurement | |
|---|---|
| Supported grid types | Single-phase, Split-phase |
| Line-to-Neutral voltage range | 90 ~ 264 Vac |
| Nominal grid frequency | 50 / 60 Hz |
| CT ratio | 200 A : 50 mA |
| Number of CT inputs | 4 |
| Accuracy | |
| Voltage / Current class | 0.5 |
| Active energy class | 0.5 |
| Reactive energy class | 1 |
| Communication | |
| Interface | RS485 |
| Max communication distance | 1000 m / 3280 ft |
| Mechanical | |
| Dimensions (W × H × D) | 72 × 85 × 72 mm (2.83 × 3.35 × 2.83 in) |
| Housing / Mounting | 4-module DIN / DIN rail |
| Weight | 240 g (0.53 lb) |
| User interface | 4 LEDs, Reset button |
| Power consumption | ≤ 5 W |
| Environment & Certification | |
| Ingress protection (meter) | IP20 |
| Operating temperature | −30 ~ +70 °C (−22 ~ +158 °F) |
| Storage temperature | −30 ~ +70 °C (−22 ~ +158 °F) |
| Relative humidity | 0 ~ 95% (non-condensing) |
| Max operating altitude | 3000 m (9842 ft) |
| Certification | UL1741 / ANSI |
| Kit note | |
| Outdoor enclosure | Included with kit GMA0300-08-00P; meter must be housed for outdoor installations per GoodWe quick guide. :contentReference[oaicite:1]{index=1} |
All technical values from the official one-page GMK140 US datasheet; installation guidance (IP20 meter → use waterproof/outdoor housing) from GoodWe quick installation guide. :contentReference[oaicite:2]{index=2}
