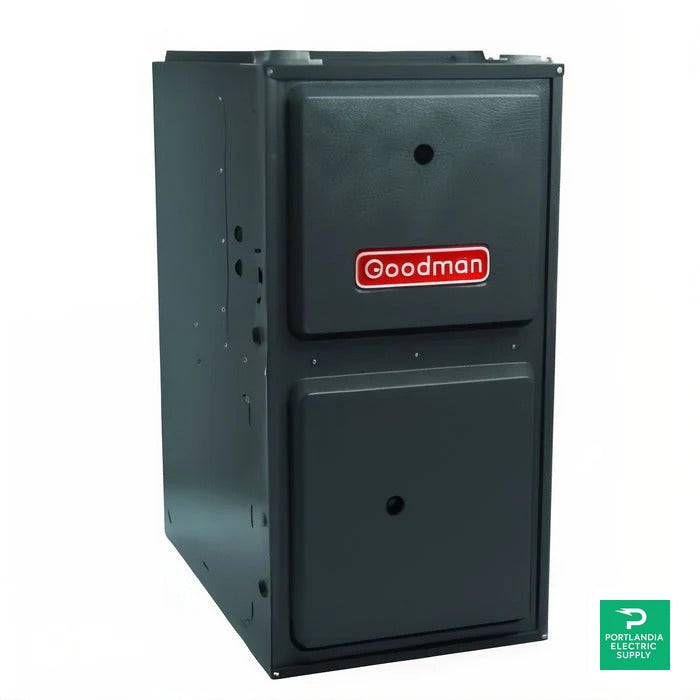

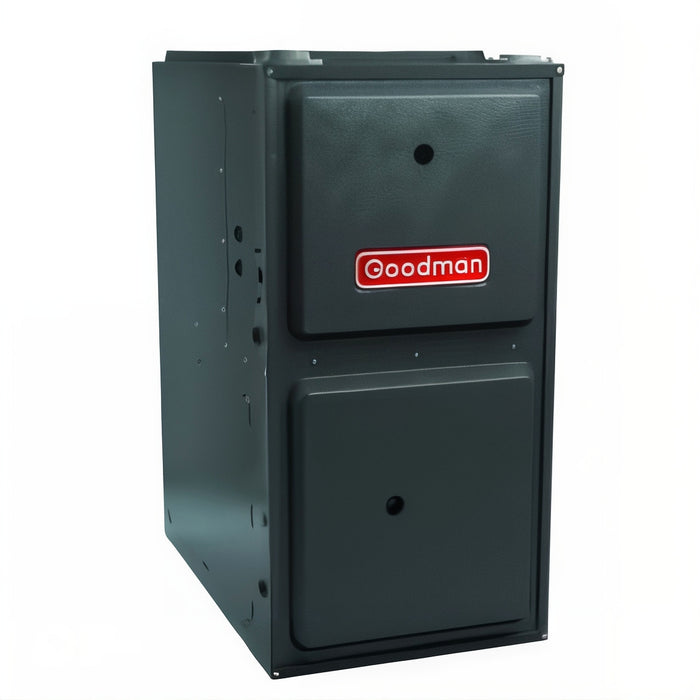

Goodman GD9S961005C gas furnace – 100,000 BTU, high-efficiency
The Goodman GD9S961005C gas furnace pairs a durable aluminized-steel primary heat exchanger with a stainless-steel secondary for efficient, reliable heat. A single-stage burner and 9-speed ECM blower deliver steady comfort in a downflow/horizontal configuration.
Key Features
Efficient, service-friendly design
With flexible left/right gas and electrical connections, 1- or 2-pipe venting, and a fully insulated cabinet, the Goodman GD9S961005C gas furnace simplifies installation while helping reduce sound and energy use.
Specifications
| Input / Output | 100,000 / 95,000 BTU/h |
|---|---|
| AFUE | 95% (GD9S96 family up to 96%) |
| Stages | Single-stage |
| Blower | 9-speed ECM |
| Electrical | 115 V, 60 Hz, single-phase |
| MCA / MOCP | 16.7 A / 25 A |
| Cabinet (HxWxD) | 34.5 × 21 × 28.75 in (C cabinet) |
| Ship weight | 144 lb |
| Vent | 2″ or 3″ PVC (see spec for runs/elbows) |
| Certifications | AHRI Certified; ETL Listed |
| Warranty | Lifetime heat exchanger; 10-yr unit replacement; 10-yr parts (with registration) |
Installation & Warranty
Follow the official specification sheet and installation instructions for vent lengths, filter sizing, and electrical protection. Register the Goodman GD9S961005C gas furnace to receive full limited warranty coverage.
