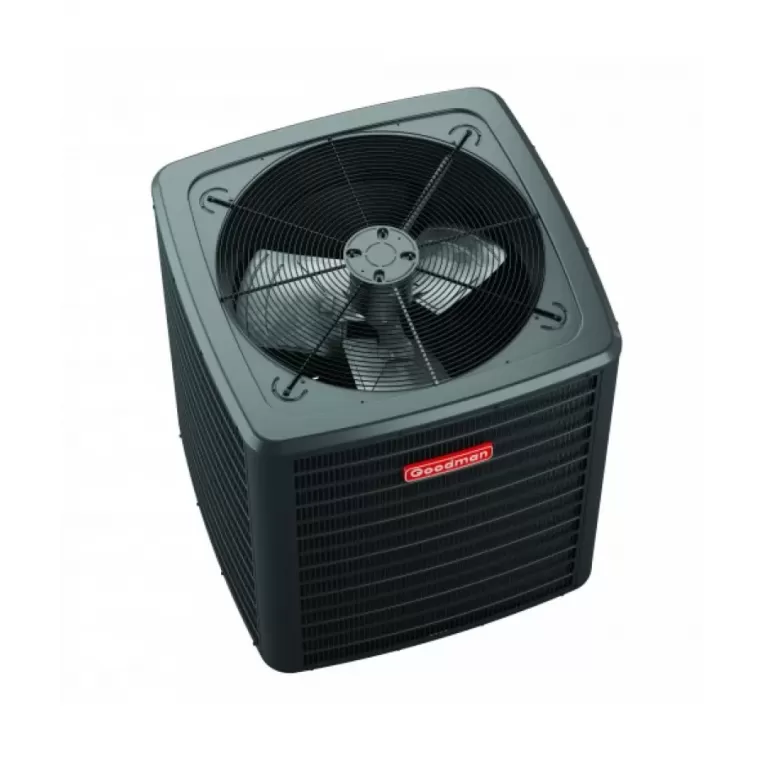

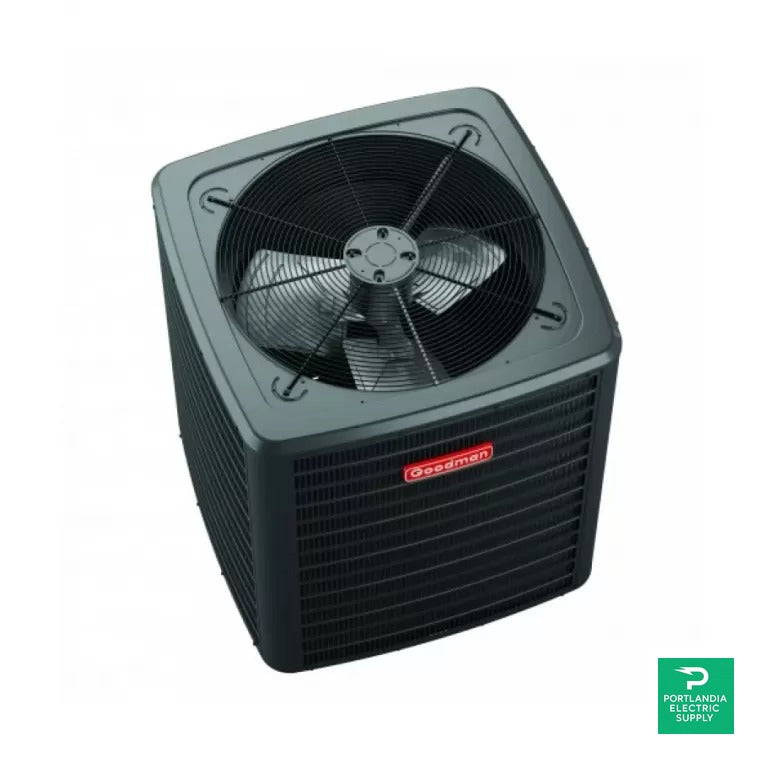

Air Conditioner Single Stage GLXS5BA3610 air conditioner – 3-ton, 15.2 SEER2, R-32
The Air Conditioner Single Stage GLXS5BA3610 air conditioner provides dependable 3-ton cooling with R-32 refrigerant and a 15.2 SEER2 rating. Built around a high-efficiency scroll compressor and factory-installed filter drier, it’s service-friendly with sweat valves and easy gauge-port access.
Key Features
High-efficiency, service-ready design
From the 5 mm copper-tube/enhanced-aluminum coil to the grille-style top, the Goodman GLXS5BA3610 air conditioner is engineered for quiet operation, durability, and straightforward maintenance access.
Specifications
| Nominal cooling | 36,000 BTU/h (3.0 tons) |
|---|---|
| Efficiency | 15.2 SEER2 (family up to 16.5 SEER2) |
| Sound level | 71 dBA |
| Electrical | 208/230 V, 60 Hz, single phase |
| MCA / MOCP | 17.8 A / 30 A (time-delay or HACR) |
| Refrigerant | R-32 (factory charge for 15′ of 3/8″ liquid line) |
| Liquid line / valve | 3/8″ O.D. / 3/8″ sweat |
| Suction line / valve | 7/8″ O.D. / 7/8″ sweat |
| Unit dimensions (W×D×H) | 35.5 × 35.5 × 39.5 in |
| Equipment / ship weight | 191 lb / 213 lb |
| Certifications | AHRI Certified; ETL Listed; UL 60335-2-40 compliant top design |
| Warranty | 10-Year Parts Limited Warranty with registration |
Installation & Compatibility
Match with approved indoor coils/air handlers for rated performance. For legacy furnaces, use Goodman’s required furnace integration kit (0230K00044) when pairing with R-32 systems. Follow the spec sheet for charge verification and electrical protection. The Goodman GLXS5BA3610 air conditioner qualifies for a 10-year parts limited warranty with timely registration.
