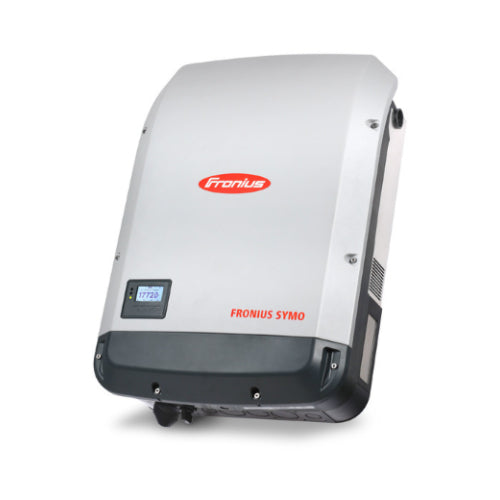

Fronius Symo Advanced 24.0-3 - 480VAC Solar Inverter
Fronius Symo Advanced 24.0-3 - 480VAC Solar Inverter
Your card is not charged until stock is confirmed. Enter your ZIP below for a transit estimate. Tracking provided once your order ships.
Ships via ground carrier, tracked. Pallet & heavy orders go LTL freight — our team confirms freight within 1 business day.
Secure checkout · Wire/ACH accepted on quotes · Freight arranged for you
Transit estimates from Louisville, KY. Freight details →
Complete the job
Compatible gear contractors pair with this item
PES Supply is an authorized distributor for Fronius. 50,000+ SKUs from 169 authorized brands.
Product Overview
The Fronius Symo Advanced 24.0-3 is a high-capacity 24kW three-phase commercial solar inverter designed for 480VAC applications. Built for large commercial and industrial solar installations, it features advanced grid support, integrated DC disconnect, SnapINverter technology, and integrated WiFi monitoring. With maximum efficiency of 98.4%, this inverter delivers reliable, high-performance power conversion.
Key Features
- 24.0kW three-phase output at 480VAC
- Integrated DC disconnect switch for safety
- SnapINverter technology for easy installation and service
- Integrated WiFi and LAN for monitoring via Fronius Solar.web
- Advanced grid support: Volt-VAR, Volt-Watt, and frequency-watt
- Maximum efficiency of 98.4%
- Active power control and reactive power capability
- DC and AC overcurrent protection
- IP66 rated for outdoor installation
- Compatible with Fronius Smart Meter for consumption monitoring
- 10-year warranty (extendable to 15 or 20 years)
Specifications
| Specification | Value |
|---|---|
| Rated Power (AC) | 24.0kW |
| Output Voltage | 480VAC 3-phase |
| Max Efficiency | 98.4% |
| MPPT Inputs | 3 |
| Max DC Voltage | 1000V |
| Max DC Power | 36,000W |
| DC Input Range | 300-950V |
| Max Input Current (per MPPT) | 26A |
| Grid Frequency | 60 Hz |
| Power Factor | 0.0 - 1.0 adjustable |
| Dimensions | 30.8 x 17.6 x 9.4 in |
| Weight | 108 lbs |
| Enclosure Rating | IP66 |
| Operating Temperature | -4F to 140F |
| Warranty | 10 years (extendable) |
What's in the Box
- Fronius Symo Advanced 24.0-3 480VAC Inverter
- Integrated DC disconnect
- WiFi module (pre-installed)
- Mounting bracket
- Wiring diagram and installation manual
- Warranty registration card
| Manufacturer | Fronius |
|---|
