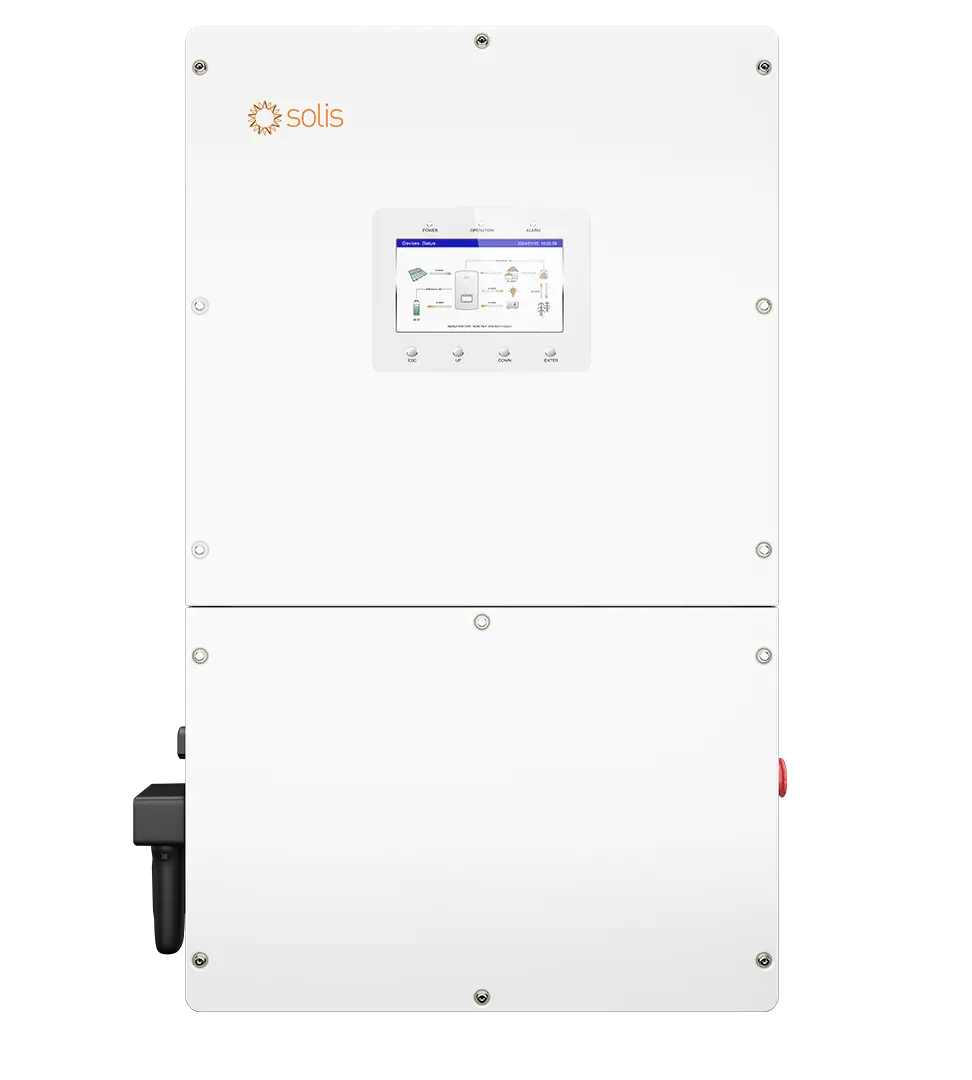

The Solis S6-EH3P30K03-LV-YD-H-US is a 30kW three-phase high-voltage hybrid inverter for 208V commercial services — combining solar, battery storage, grid interconnection, and generator support in one NEMA 4X outdoor-rated platform.
Key Features
- 30kW three-phase hybrid output for 208/220/240V commercial services
- 60kW max PV input with 200% DC oversizing — maximize array yield per inverter
- 3 MPPTs with 40A high-current inputs for large-format modules
- Dual high-voltage battery ports (150–800V), 70A + 70A charge/discharge, up to 33kW per port
- UPS-grade backup: <10ms transfer, 160% overload for 2 seconds
- Integrated SunSpec-certified rapid shutdown transmitter and AFCI protection
- Generator input with AGS support; parallel up to 10 units for system scaling
- Type 4X enclosure, -13°F to 140°F operating range, SolisCloud monitoring
Compatibility: High-voltage lithium batteries per the Solis compatibility list; 208V three-phase services; UL1741SB / IEEE1547-2018 / NEC 690.12-2020 compliant
Specifications
| Model | S6-EH3P30K03-LV-YD-H-US |
| Rated AC Output | 30 kW three-phase (208/220/240V) |
| Max PV Input Power | 60 kW (200% oversizing) |
| Max PV Input Voltage | 1,000 V DC |
| MPPTs / Strings | 3 / 6 (40A per MPPT) |
| MPPT Range | 150–850 V DC |
| Battery Voltage Range | 150–800 V DC, Li-ion |
| Battery Ports | 2 × 70A charge/discharge, up to 33 kW each |
| Max Efficiency | 97.9% (CEC 97.4%) |
| Backup Transfer | <10 ms; 160% overload 2s |
| Rated Output Current | 72.2 A |
| Enclosure | Type 4X, fan-cooled |
| Dimensions | 22 × 41.3 × 13.64 in |
| Weight | 195.8 lb (88.8 kg) |
| Certifications | UL1741SB, IEEE1547-2018, UL1699B, NEC 690.12, CSA C22.2 |
| Monitoring | 7 in LCD, Bluetooth + app, SolisCloud; Ethernet / RS485 / CAN |
| Warranty | 10 years |
| Part Number | USS-SOLI-MPPT |
Authorized Solis distribution — full 10-year manufacturer warranty. Ships via LTL freight; our team confirms delivery details within 1 business day.
| SKU | USS-SOLI-MPPT |
|---|---|
| Manufacturer | Solis |
| Vendor mpn |
No documents available for this product. Contact us to request documentation.
